Hi everyone. Please, help me write the function correctly in the Smathstudio and build a graph for it. It is really to do it in a Smathstudio?

Wrote

Please, help me write the function correctly in the Smath Studio and build a graph for it

Maybe like this ?

Vo.sm (43 КиБ) скачан 65 раз(а).

Thank you very much for your help. As I understand it, these are complex numbers. I'm not good at them yet. But, from this video (https://www.youtube.com/watch?v=cS83YUpcEsY) (time - 3:49), I realized that this is Vo*cos(wt).

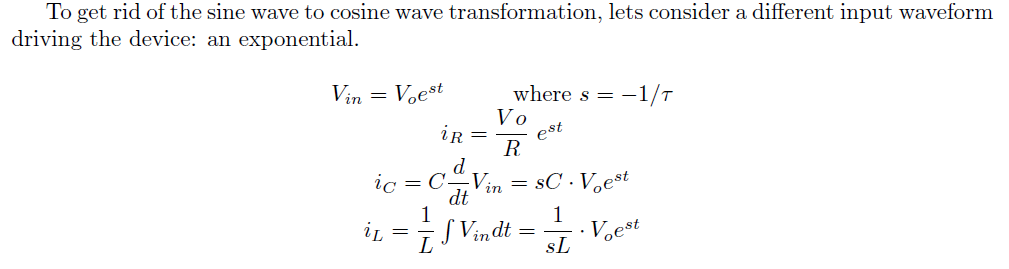

Took the formula from here - (https://web.stanford.edu/class/archive/engr/engr40m.1178/reader/reader.pdf) (page - 138).

Wrote

As I understand it, these are complex numbers.

1. The formula exp(,) is just the exponential [decreasing in that case].
Nothing to do with complex as given. It shows the IR, IL currents.
2. The formula down far below the PDF is not associated with a circuit.
Just a dead piece of curiosity.

Cheers ... Jean

Circle Complexn-circles.sm (10 КиБ) скачан 46 раз(а).
Circle Complex.sm (22 КиБ) скачан 31 раз(а).
Circle Complex_1.sm (65 КиБ) скачан 39 раз(а).

... make it more classroom style.

Vo.sm (48 КиБ) скачан 70 раз(а).

Wrote

... make it more classroom style.

Vo.sm (48 КиБ) скачан 70 раз(а).

Thanks a lot.
