Hi All,

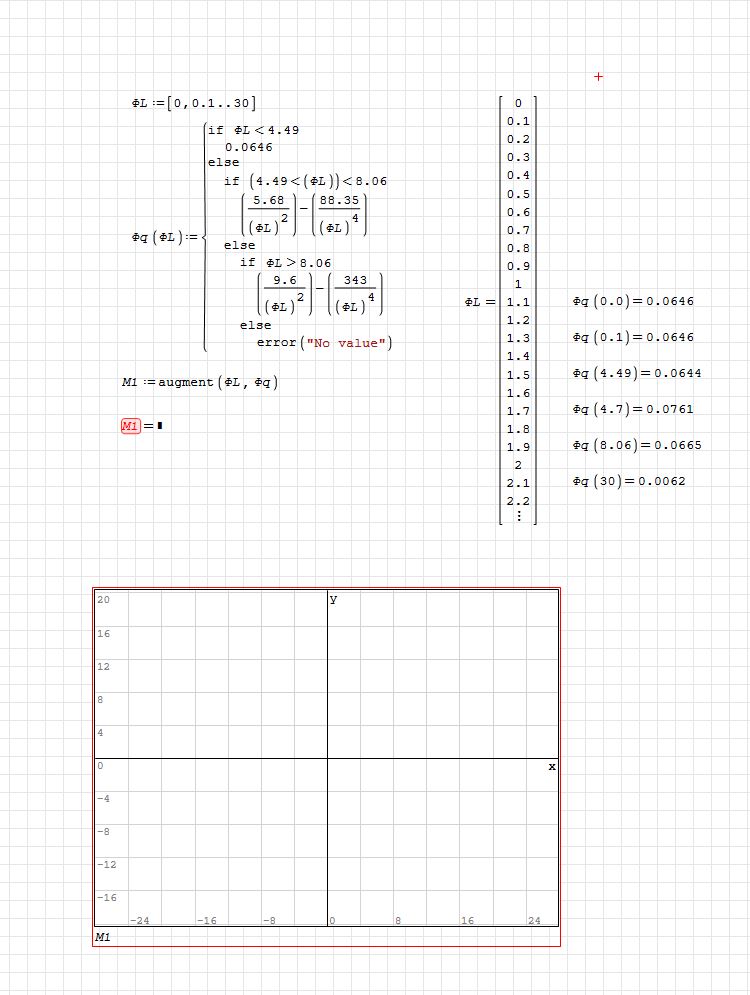

A simple IF function to return value between a range. The equation and IF function is showing it is working. But can't manage to plot. Some tips is appreciated.

Thank


Page3.sm (8.63 KiB) downloaded 1013 time(s).
#2 Posted: 2021/1/12 17:25:30
Martin Kraska

Martin Kraska

1,353 likes in 2,264 posts.

Group: Moderator

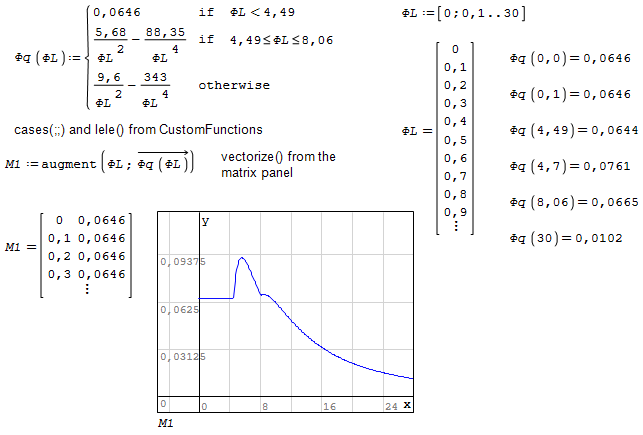

You didn't provide an argument to your function.

I also used cases() and lele() to re-write your function (this is just cosmetics, not related to the original problem)

Page3.sm (8.87 KiB) downloaded 1081 time(s).
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#3 Posted: 2021/1/12 17:44:11
Tow Wai Lim

Tow Wai Lim

0 likes in 42 posts.

Group: User

Hi MKraska,

Thanks for the tips... such hidden function. Lucky this forum is extermely supportive.... A big KUDOS to you Martin. Cheers
#4 Posted: 2021/1/13 10:47:54
Jean Giraud

Jean Giraud

983 likes in 6,866 posts.
