sybolic integral problem

sybolic integral problem - 消息

#1 已发布: 2023/2/23 05:54:14
soomoon

soomoon

1个赞,共42个帖子。

组: User

i want to solve sybolic integral problem.
but smath can't work.
2023-02-23 17 49 51.png

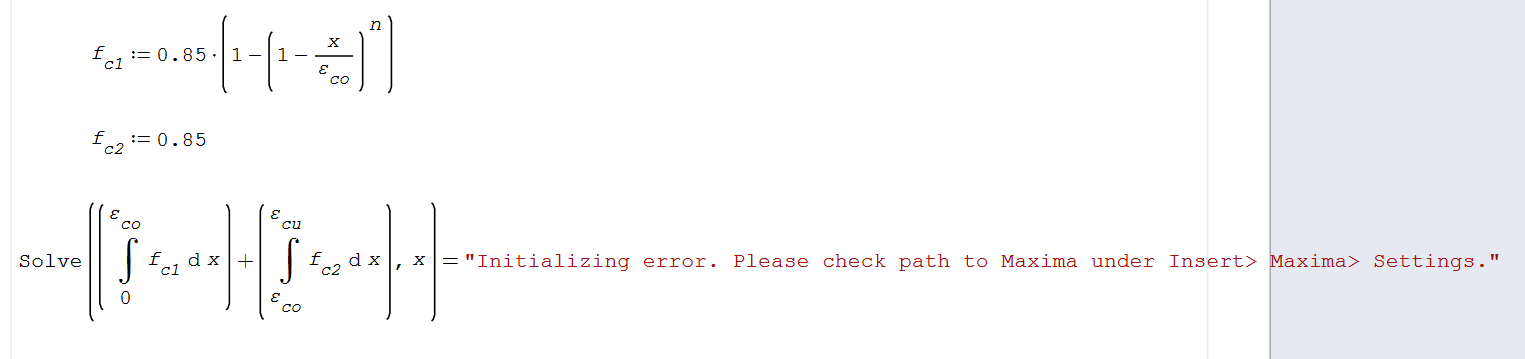

2023-02-23 17 50 25.png
#2 已发布: 2023/2/23 15:06:01
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

Wrote

i want to solve sybolic integral problem.
but smath can't work.


It seems that maxima is not correctly configured. Follow the link to the wiki in my signature, you find instructions there. They should be valid also for current versions of SMath Studio.
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#3 已发布: 2023/2/24 09:42:38
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Firstly, you have not install maxima.
Download latest version from this link.
Then do what maxima extension settings explained by mkraska.

Second, you don't calculate integrals with numeric solvers.
For symbolic calculations better to use maple or maxima plugin.
Here is your problem solved.

Regards

symbolic integrate.sm (11.43 KiB)已下载 1331 次。

Click to expand
#4 已发布: 2023/2/25 01:52:57
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

You can do it like this

Click to expand
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
overlord 2023/2/25 08:24:00
#5 已发布: 2023/2/25 08:55:15
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Wrote

You can do it like this.


That's something I didn't know his to do.
I did tried assume(n>0,e>0) but seems it doesn't work like that.

Thanks, I learned a new thing.
#6 已发布: 2023/2/26 21:13:48
soomoon

soomoon

1个赞,共42个帖子。

组: User

Wrote

You can do it like this

Click to expand

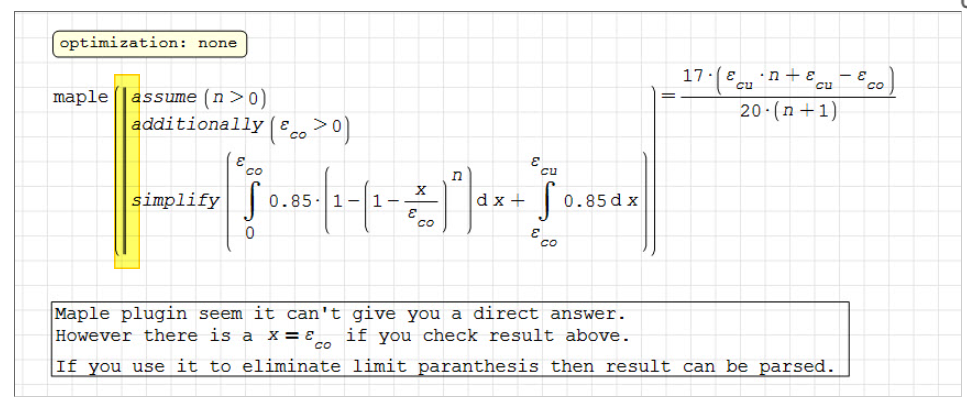

I can't express what you taught me in smath. How should I represent the highlighted part in the picture?
2023-02-27 09 10 38.png
#7 已发布: 2023/2/27 21:09:15
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I want to solve symbolic integral problem.
But Smath can't work.


You can have it from coding wrt your parameters [ε,n,,u]
Cheers ... Jean

Solve Parametric QED.sm (16.23 KiB)已下载 1374 次。

#8 已发布: 2023/2/27 21:26:34
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Wrote

I can't express what you taught me in smath. How should I represent the highlighted part in the picture?


It is the line() function.
You can either type it, or select from toolbar.

Regards
