Momentum Balance across Ejector

Momentum Balance across Ejector - Solve command ambiguity - 消息

#1 已发布: 2018/6/23 02:34:35
usamakhan

usamakhan

7个赞,共98个帖子。

组: User

In the attached problem I am having x2 issues. The first thing is that if I assign Mhp to 17 elements & then try to solve (built in command) the array of 100 elements is returned? Secondly using Solve (Maxima) I get the required answer (17 element array) but only the last element has the answer (rest are zero)?

Objective is to plot D1 values for given set of Mhp values

未找到文件。未找到文件。
#2 已发布: 2018/6/23 06:21:33
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

There were some issues in your file.
1. your expression MomentumBalance... isn't ready for vector arguments. V[2*Mhp evaluates to the scalar product between two vectors. This probably isn't what you want.
2. The last loop iterates over just one element.
3. Data is constantly overwritten by the last entry.
4. In the first iteration of the loop you overwrite your range of value with the first element.
5. Solve() returns a boolean equation. In order to convert this into an assignent, you can use the substitution function at()

The solution is to provide a separate variable holding the range of values and then iterate Mhp over this range.

If you just want the plot, you can use the Maxima Draw function implicit().

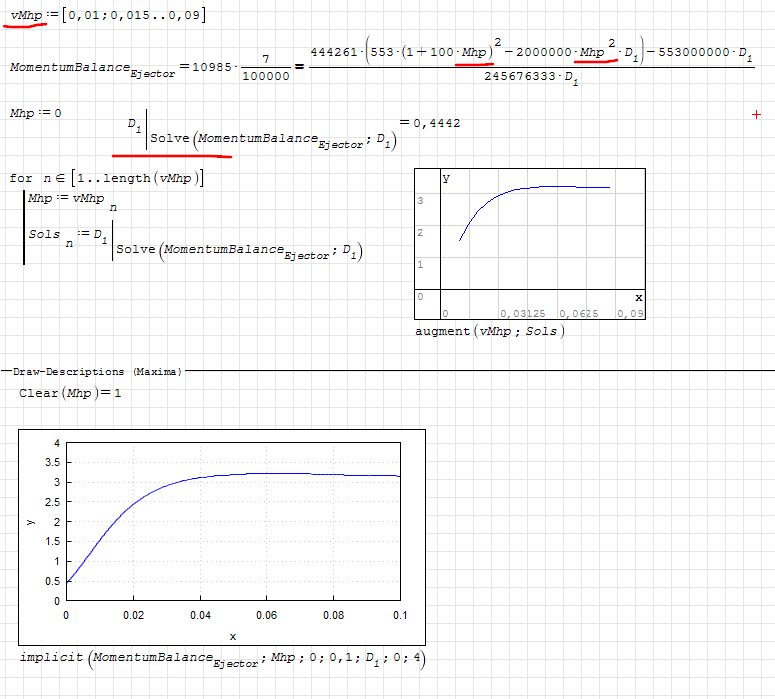

2018-06-23 10_58_44-SMath Studio - [Page1.sm_].png
implicit.sm (136.01 KiB)已下载 1228 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
1位用户喜欢此帖子
frapuano 2018/6/23 14:29:00
#3 已发布: 2018/6/23 09:21:58
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator


MomentumBalance.sm (4.65 KiB)已下载 1193 次。
MomentumBalance.pdf (16.23 KiB)已下载 767 次。
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
frapuano 2018/6/23 14:29:00
#4 已发布: 2018/6/23 13:37:01
usamakhan

usamakhan

7个赞,共98个帖子。

组: User

Wrote

5. Solve() returns a boolean equation. In order to convert this into an assignent, you can use the substitution function at()



:d thanks for this marvelous explanation. However I failed to comprehend why the built in solve command returns 100 elements array? Doesn't it work similarly to Maxima Solve?

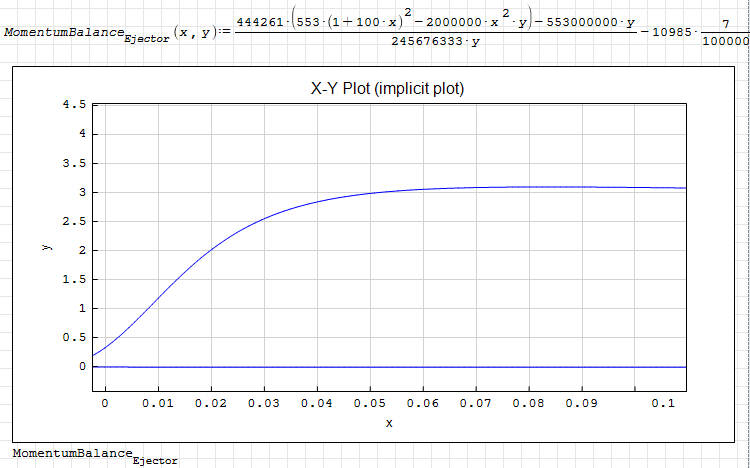

uni, thanks but how do I dynamically convert the expression MomentumBalance to the one you have used to plot. I mean I cannot find something like this which will result in the right construct to be used by XYPlot

f(x,y):= RHS(expr) - LHS(expr)

#5 已发布: 2018/6/23 14:11:58
Вячеслав Мезенцев

Вячеслав Мезенцев

1,558个赞,共1,868个帖子。

组: Moderator

Try this.

implicit1.sm (15.95 KiB)已下载 1228 次。
implicit1.pdf (26.93 KiB)已下载 823 次。
Russia ☭ forever, Viacheslav N. Mezentsev
1位用户喜欢此帖子
frapuano 2018/6/23 14:29:00
#6 已发布: 2018/6/24 10:18:11
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

thanks for this marvelous explanation. However I failed to comprehend why the built in solve command returns 100 elements array? Doesn't it work similarly to Maxima Solve?

uni, thanks but how do I dynamically convert the expression MomentumBalance to the one you have used to plot. I mean I cannot find something like this which will result in the right construct to be used by XYPlot

f(x,y):= RHS(expr) - LHS(expr)

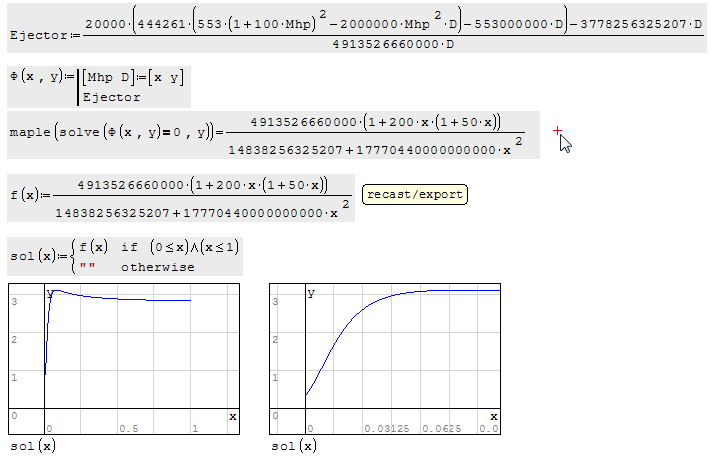

1. Once you have Ejector in the two variables, recast as Uni did
2. Solve for an analytical solution ... via Maple
3. Recast/export


Project Solve Ejector [Maple].sm (8.58 KiB)已下载 1003 次。
