XY-PLOT Logarithmic scale

XY-PLOT Logarithmic scale - does anyone know how to create a graph with a logarithmic scale on the "Y" axis? - 消息

#1 已发布: 2021/5/1 09:59:24
Erick Valentino

Erick Valentino

7个赞,共29个帖子。

组: User

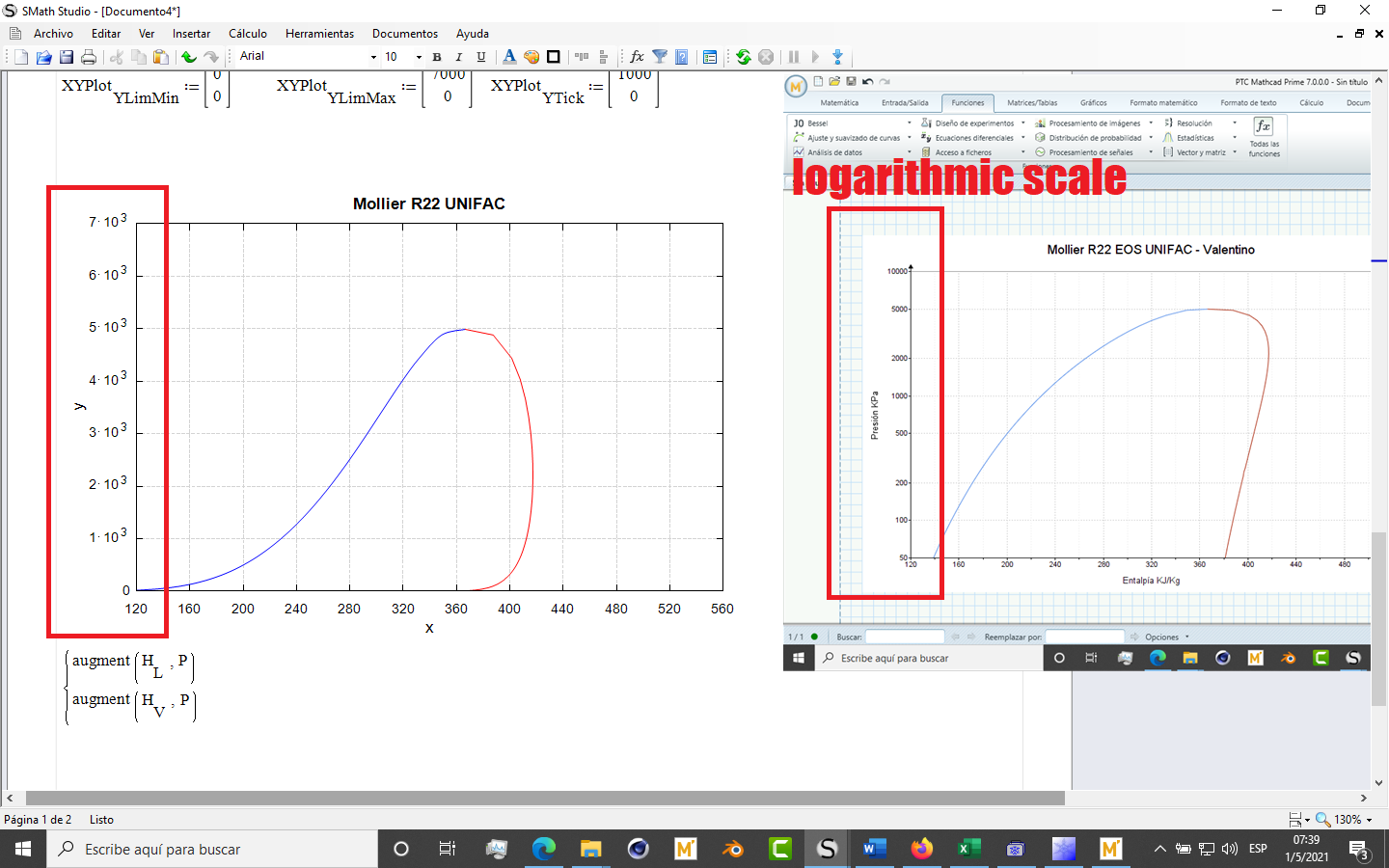

hi does anyone know how to create a graph with a logarithmic scale on the "Y" axis? I want to make an enthalpy vs pressure diagram, has anyone already made a Mollier diagram? constant entropy lines are costing me a lot of work. Thanks for your attention



PH.sm (214.23 KiB)已下载 1290 次。
#2 已发布: 2021/5/1 12:54:04
sergio

sergio

127个赞,共342个帖子。

组: User

You can do with the Zedgraph plugin

sergio

PH_sergio.sm (246.07 KiB)已下载 1349 次。

1位用户喜欢此帖子
Erick Valentino 2021/5/6 07:13:00
#3 已发布: 2021/5/1 13:19:22
EngMath

EngMath

0个赞,共51个帖子。

组: User

Maxima plug-in should work too.
#4 已发布: 2021/5/1 13:26:36
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

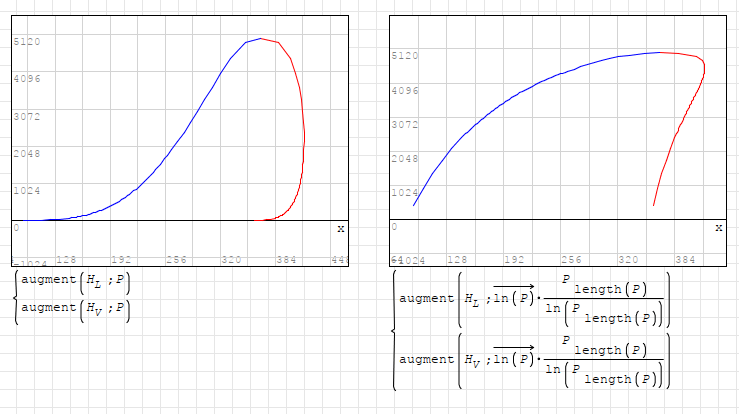

Integrated 2D plot should work too.
Same can be said for XY-Plot plugin.
With a little trick of course.

logarithmic_plot.sm (13.69 KiB)已下载 1288 次。

#5 已发布: 2021/5/6 07:08:18
Erick Valentino

Erick Valentino

7个赞,共29个帖子。

组: User

Wrote

You can do with the Zedgraph plugin

sergio

PH_sergio.sm (246.07 KiB)已下载 1349 次。



Sergio, thank you very much for answering

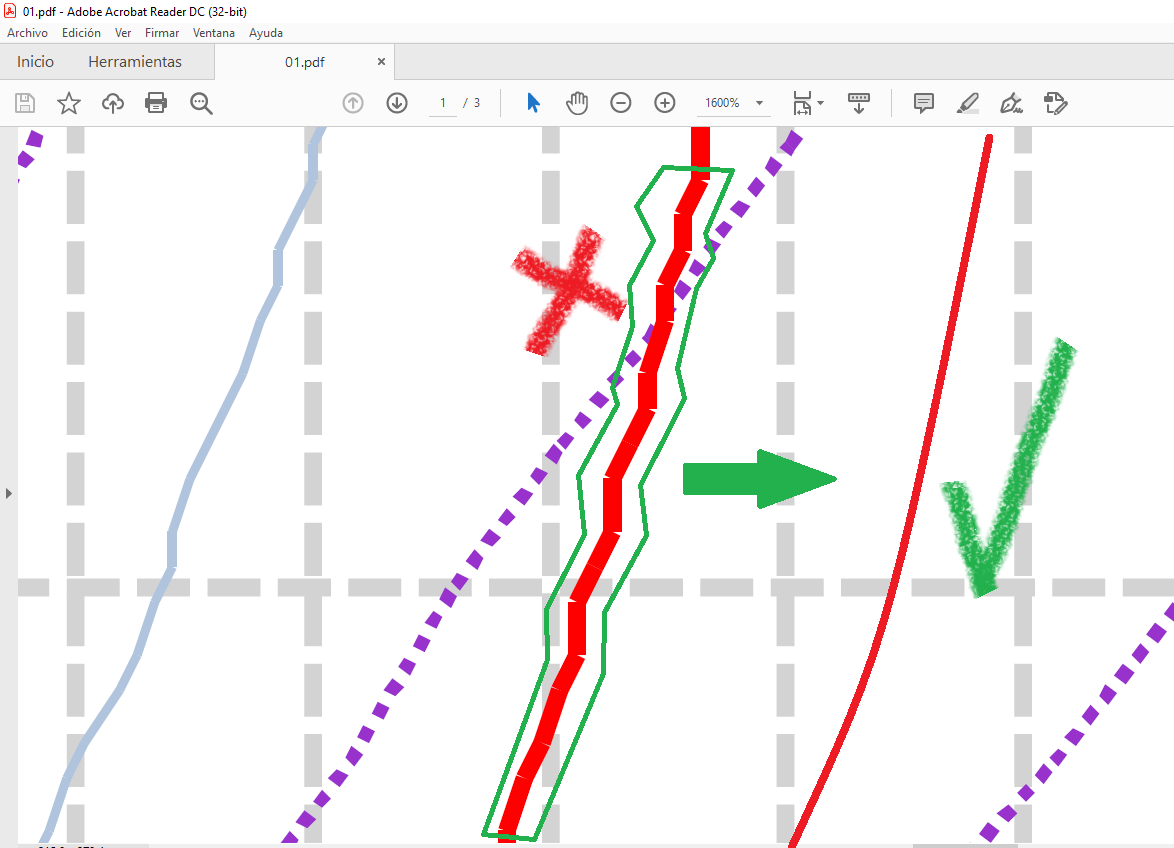

The logarithmic scale worked perfectly, however, the lines that it draws are somewhat wavy, as if there is noise and they are separated,
is there any way that the line is smoother and more united? Also, when I use ZG, how can I name the lines? I entered all the tempperature
and entropy data manually

thank you very much for your attention :d
My English is not very good, I hope you can understand me

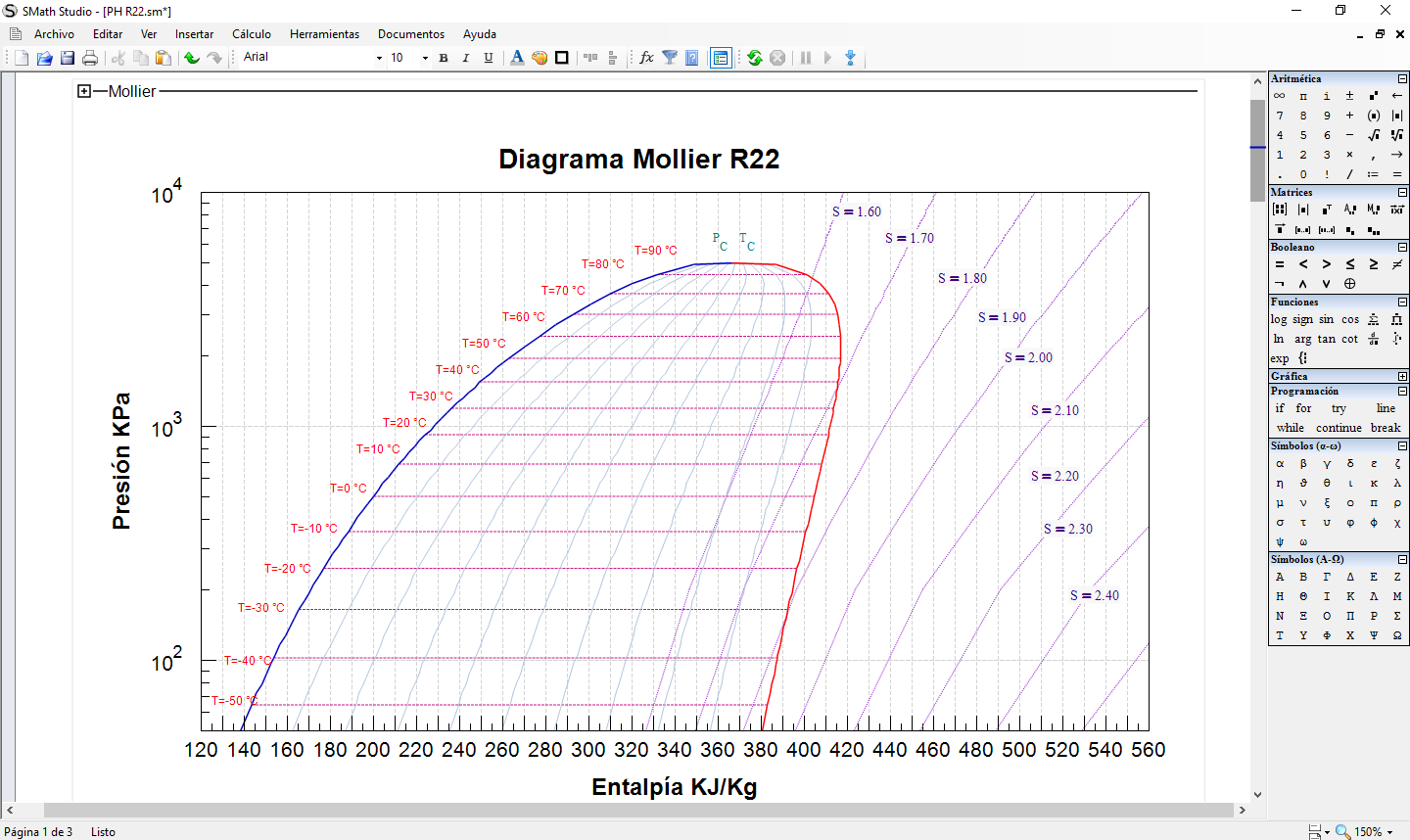

Mollier ZG.png

Mollier ZG LS.png

file
PH R22.sm (181.09 KiB)已下载 1274 次。
#6 已发布: 2021/5/6 07:26:24
Erick Valentino

Erick Valentino

7个赞,共29个帖子。

组: User

Wrote

Integrated 2D plot should work too.
Same can be said for XY-Plot plugin.
With a little trick of course.

logarithmic_plot.sm (13.69 KiB)已下载 1288 次。




Thanks for answering, your method is very helpful.
Do you know how I can enter text for the graph lines? I entered all the temperature and entropy values manually,
I would like the text to be on the lines or on one side of the line without having to enter them as a text region.

thanks for your attention
I don't write in English, I hope you understand me

Mollier ZG.png

PH R22 Q.sm (179.97 KiB)已下载 1259 次。
#7 已发布: 2021/5/6 14:44:11
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

You can view all at once on collected Mollier.

PH R22 Q Mollier.sm (61.53 KiB)已下载 1206 次。
#8 已发布: 2021/5/6 15:59:12
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Wrote

Thanks for answering, your method is very helpful.
Do you know how I can enter text for the graph lines? I entered all the temperature and entropy values manually,
I would like the text to be on the lines or on one side of the line without having to enter them as a text region.

thanks for your attention
I don't write in English, I hope you understand me

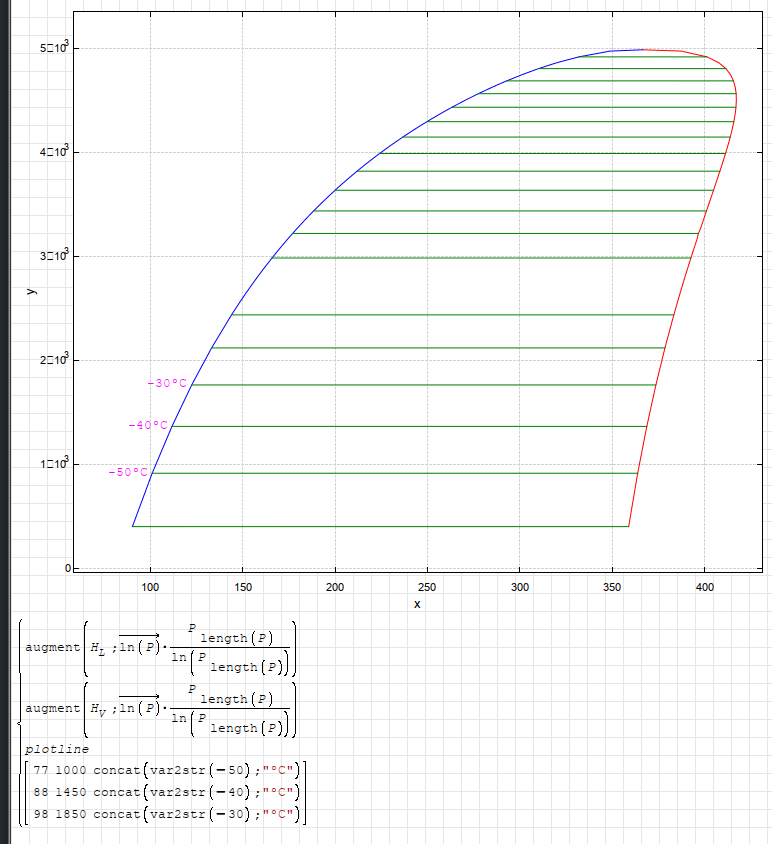

In 2D-plot and XY-plot there is a method to enter text or some marks into the graph.
Don't have any idea if this works with Zed graph.
I don't have it and I have no intention to install it.
Below you can see a simple demonstrated answer to your question.
There is also a lot of detailed information for plotting in Reference book.

Regards

logarithmic_plot_withtext.sm (32.61 KiB)已下载 1276 次。

#9 已发布: 2021/5/12 21:15:04
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

has anyone already made a Mollier diagram? constant entropy lines are costing me a lot of work. Thanks for your attention


An horrible task for the first model from you data.
The principle is quite involved but works.
M8, M9, M10 do NOT cinterp ... confirmed Mathcad
Quadratic acceptable M9 ... M8 poor ... M10 OK
More work to conclude is needed ... as is reconciliation.
the FREAK is not done
Cheers ... Jean

Project Mollier IDX part.sm (163.93 KiB)已下载 1240 次。

The all difficulty results from poor/unwisely collected data.
