problem with solving a system of equations

#1 Posted: 2024/8/17 00:07:15

Prmtv

0 likes in 49 posts.

Group: User

Hello!

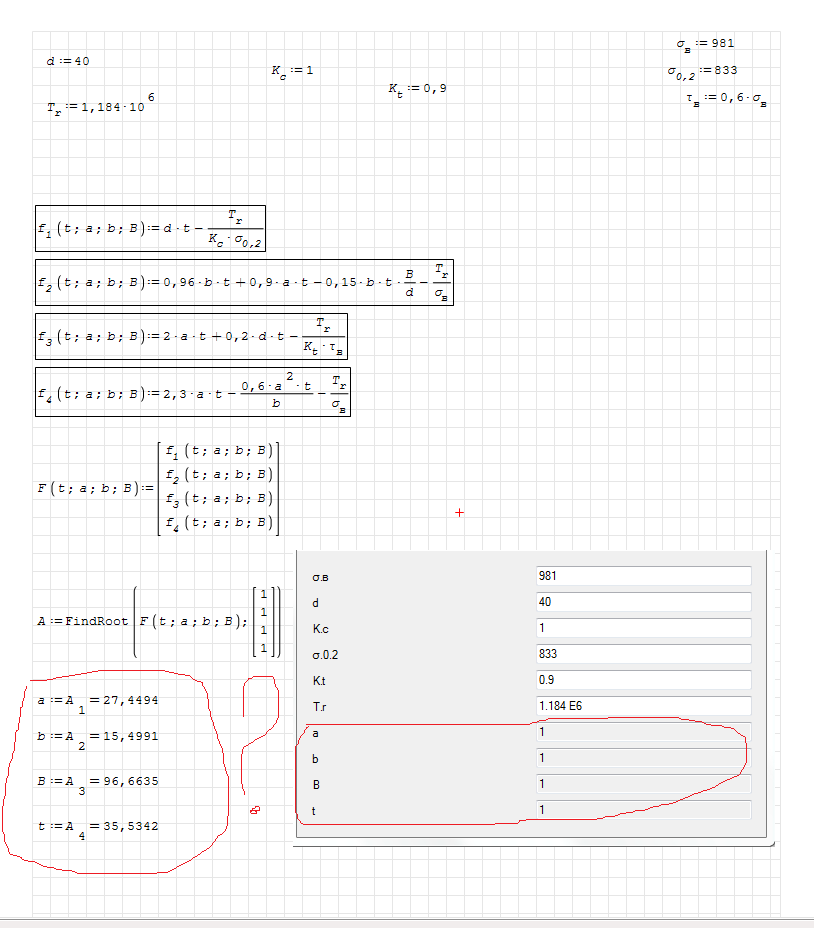

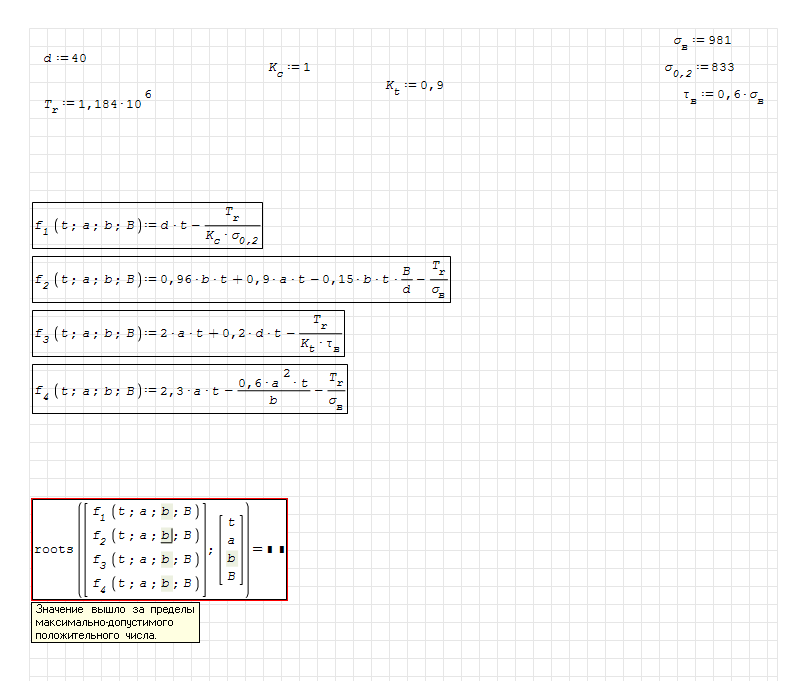

Such a problem appeared. Please tell me what's the matter

00.sm (9.79 KiB) downloaded 1254 time(s).

Thanks!

#2 Posted: 2024/8/17 05:49:32

Martin Kraska

1,353 likes in 2,264 posts.

Group: Moderator

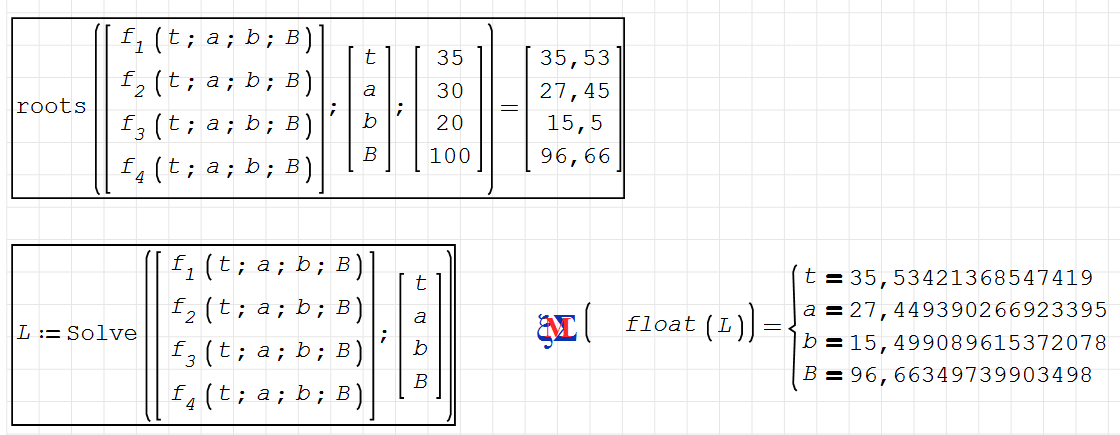

roots() in this case needs a custom initial guess.

00_Kr.sm (13.52 KiB) downloaded 1315 time(s).

2024-08-17 00_46_56-SMath Solver - [00.sm_].png

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9

#3 Posted: 2024/8/18 00:20:41

Prmtv

0 likes in 49 posts.

Group: User

Wrote
roots() in this case needs a custom initial guess.

00_Kr.sm (13.52 KiB) downloaded 1315 time(s).

how to choose the right one initial guess?

#4 Posted: 2024/8/18 04:15:52

overlord

597 likes in 1,377 posts.

Group: Moderator

Wrote
how to choose the right one initial guess?

What I can suggest is to use right solver.

#5 Posted: 2024/8/18 19:25:46

Prmtv

0 likes in 49 posts.

Group: User

Wrote

Wrote
how to choose the right one initial guess?

What I can suggest is to use right solver.

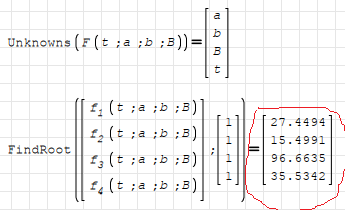

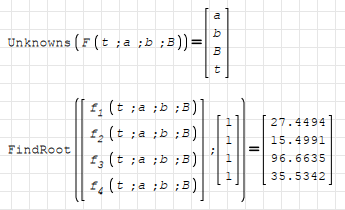

how is the order of output of variables determined? From function "Unknowns"?

#6 Posted: 2024/8/18 19:51:08

overlord

597 likes in 1,377 posts.

Group: Moderator

Wrote
how is the order of output of variables determined? From function "Unknowns"?[/attach]

My guess and and experience is they are ordered alphabetically.

#7 Posted: 2024/8/22 23:23:22

Prmtv

0 likes in 49 posts.

Group: User

Wrote

Wrote
how to choose the right one initial guess?

What I can suggest is to use right solver.

Thanks!

But when creating exe-file required variables a, b, B, t = 1. Why does this happen? Or is this a feature of the plugin "Nonlinear solvers"?

#8 Posted: 2024/8/23 00:05:06

overlord

597 likes in 1,377 posts.

Group: Moderator

I can't know what you have done without your sheet.
However, this was not an issue when I saved it as an exe.

Regards

#9 Posted: 2024/8/23 03:42:01

Prmtv

0 likes in 49 posts.

Group: User

Wrote
I can't know what you have done without your sheet.
However, this was not an issue when I saved it as an exe.

Regards

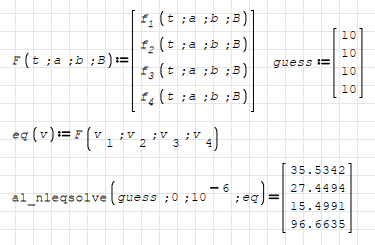

If I use the function "al_nleqsolve" then everything really works

The problem occurs when using the function "FindRoot"

#10 Posted: 2024/8/23 04:11:17

overlord

597 likes in 1,377 posts.

Group: Moderator

It is due to some bug or miscode for FindRoot().
Or this is totally SMath result parse method.
Your solution (A) is stored symbolic.
Make it totally numeric by eval().
Exe file can show correct results after that.

Regards

#11 Posted: 2024/8/26 01:33:45

Prmtv

0 likes in 49 posts.

Group: User

Wrote
It is due to some bug or miscode for FindRoot().
Or this is totally SMath result parse method.
Your solution (A) is stored symbolic.
Make it totally numeric by eval().
Exe file can show correct results after that.

Regards

Thanks!
