SMath Studio 0.99.6617 (12 February 2018) - 消息
SMath Studio
Tiny, but powerful mathematical program with WYSIWYG editor and complete units of measurements support.
它提供了众多的计算功能和丰富的用户界面,并支持约40种语言。该应用程序还内置了数学参考手册。
应用程序可根据您的需求轻松扩展。内置的“扩展管理器”工具让您可以获取数百种官方及第三方资源,涵盖以下类型:使用示例、插件、基于 SMath Viewer 的应用程序、代码片段、界面翻译、交互式书籍、手册以及教程。
下载
SMathStudioDesktop.0_99_6617.Mono.tar.gz (1.26 MiB)已下载 2558 次。
SMathStudioDesktop.0_99_6617.Setup.msi (2.13 MiB)已下载 4781 次。
Best regards.

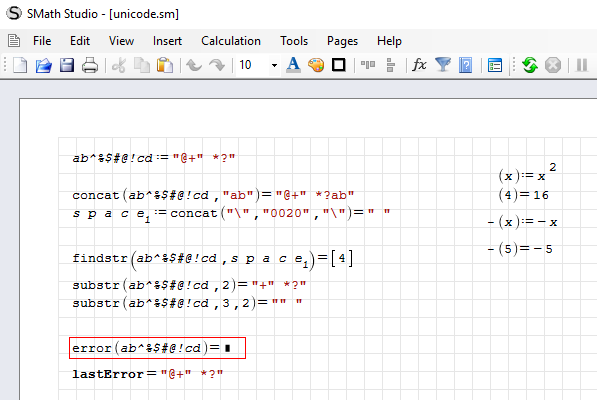

WroteMode to insert special symbols into equation implemented using Ctrl K (Ctrl Shift K is also supported);
Very good! Now we can write even the argument separator in subscripts like in eurocodes (not like the decimal separator that changes with settings, but close enough for daily work)
![2018-02-12 19_04_15-SMath Studio - [Page1_].png](/zh-Hans-CN/files/Download/V8ph52/2018-02-12-19_04_15-SMath-Studio---[Page1_].png)

dec2hex.sm (11.68 KiB)已下载 1678 次。
Best regards.
Accidentally discovered
- it
1. Error
2. Future plan
3. Or so intended - undocumented opportunities
And this trick works only when there are variables before and after our variable "fdsf"
Перевод:
Создание переменной прямо на форме SmathViewer
Случайно обнаружил
- это
1. Ошибка
2. Планы на будущее
3. Или так задумано - недокументированные возможности
Причем этот трюк работает только тогда, когда есть переменные до и после нашей переменной "fdsf"

Gif-Animation
Best regards.
Alvaro.
未找到文件。未找到文件。
vectorize.sm (5.54 KiB)已下载 1712 次。

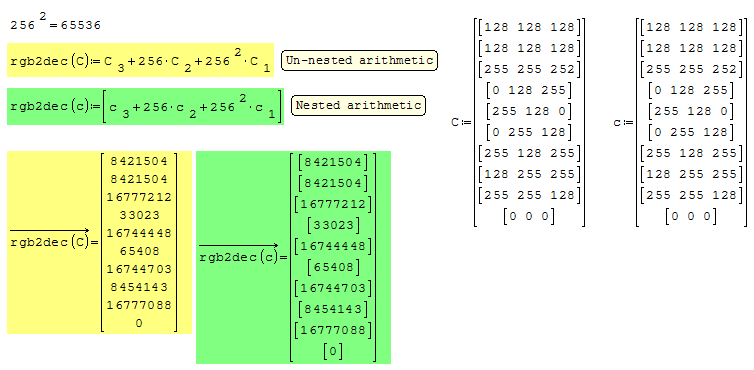

If you want to achieve the results from 6484 you need to apply the vectorize function to the input of rgb2dec as shown in the attached example.
vectorize (1).sm (8.59 KiB)已下载 1648 次。
WroteHi. Which goes to be the correct answer?
Thank you very much for this report!
I have investigated issue and see new version shows incorrect results (I have introduced this bug during work on refactoring).
I have found the reason and just fixed it. Now results are the same as in 6484.
I will release new SMath Studio version soon.
Best regards.
WroteCreating a variable right on the form SmathViewer
Accidentally discovered
- it
1. Error
2. Future plan
3. Or so intended - undocumented opportunities
Heh. This is not something I planned to implement. I would say this "feature" is introduced accidentally
Best regards.
Wrote
I have investigated issue and see new version shows incorrect results (I have introduced this bug during work on refactoring).
I don't know why this vectorize function confuses me so much. Could someone explain to me how this function operates?
I tend to think of it as a similar to the "dot" . command in Matlab.
For example in 0.6484 shown below. I don't see how calling vectorize either inside the function or outside the function produces the same results, but calling it both inside the function and outside cancels its effects.
I'm sure my misunderstanding comes from ignorance on how SMath works behind the scenes and order of operations. But to me the behavior in 6617 tends to make sense.
未找到文件。未找到文件。
WroteI don't know why this vectorize function confuses me so much. Could someone explain to me how this function operates?
Since it was introduced [Smath 6179] and 100's time I used it,
it works same as Mathcad 8 Pro <= 11. It is an element wise operator,
seemingly universal similar to all matrix/vector algebra ... for instance
2d, 35 rotation.
Does it work ? Yes and no as you put it.
As simple as it looks, follows some rules depending upon the result style.
Jean
vectorize (1).sm (95.54 KiB)已下载 1766 次。
Observe the matrix/vector rules ... M*rotation ... NOT rotation*M
Cholesky solver is not commutative ... + examples vectorize => please feel free !
Alyles.sm (1012.91 KiB)已下载 1778 次。
Wrote
I don't know why this vectorize function confuses me so much. Could someone explain to me how this function operates?
I tend to think of it as a similar to the "dot" . command in Matlab.
Hi. Yes, vectorize is similar to the dot operator in matlab, but also like map in maple and /@ in mathematica: ever language have a way to operate "element by element" in matlab speak, or over the "head" of structures, in the others.
SMath "structure" are always arrays, and could be confusing the behavior when the vectorize operator operates over "arrays of arrays".
Fortunately, SMath is more congruent than mathcad, which behavior was unpredictable between versions:
未找到文件。未找到文件。
Here is the maple's map and mathematica /@:
未找到文件。未找到文件。
Best regards.
Alvaro.

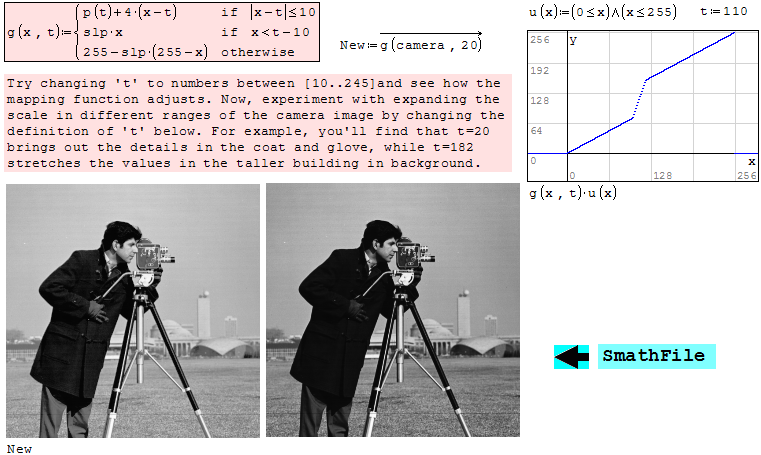

WroteI don't know why this vectorize function confuses me so much. Could someone explain to me how this function operates?
... the few examples above make you confident.
You may hit the wall from "vectorize" ... Explain
=> Mathcad vectorize operator take interpolation functions,
Smath does NOT, thus the vect operator fails.
Unlike Mathcad, Smath linterp, ainterp, cinterp are NOT
scalar functions ... demonstrated in the attached.
This nuance will save you growing more gray hairs.

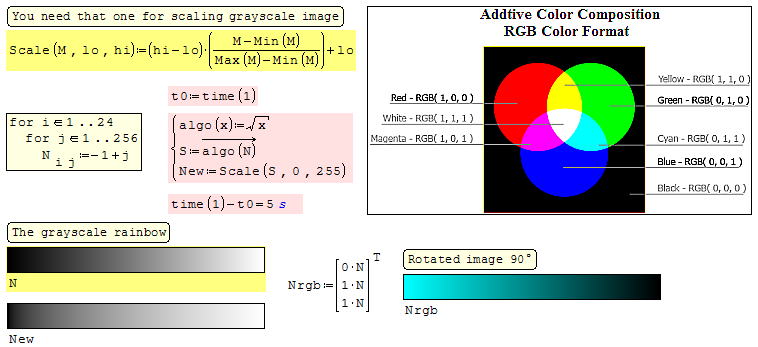

Image Rainbow Colormap.sm (239.69 KiB)已下载 1658 次。
