integral of piecewise functions

integral of piecewise functions - Numeric integral of piecewise function - 消息

#1 已发布: 2022/8/25 12:10:06
Juan Manuel

Juan Manuel

0个赞,共14个帖子。

组: User

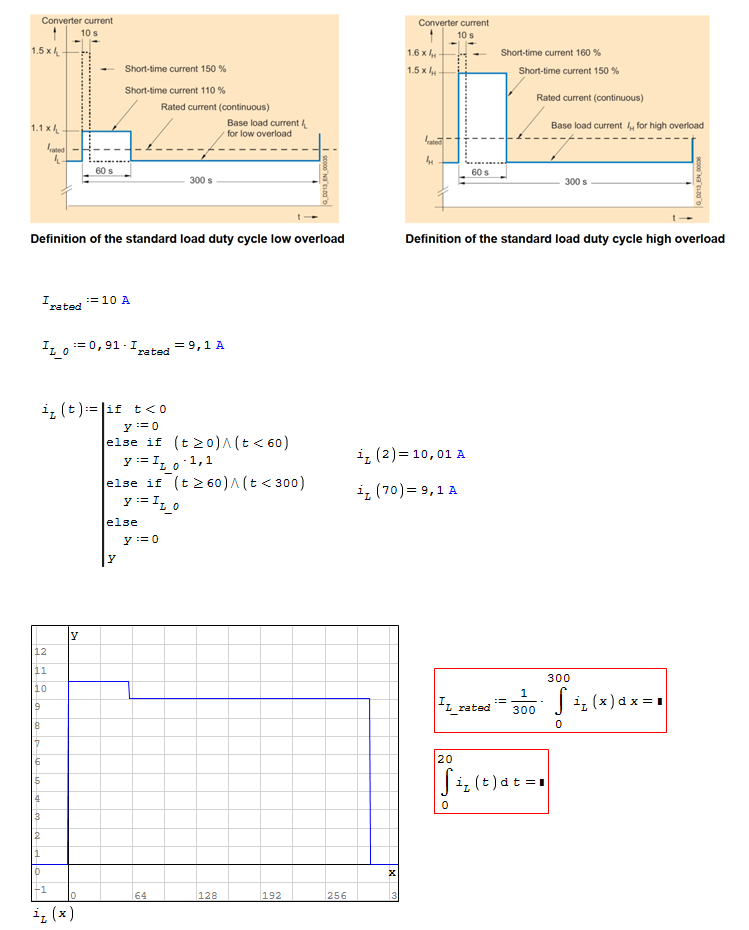

Dear, I would like to ask you if it is possible to perform integrals of functions defined by intervals.

Thanks and regards

JuanMa

Current_duty cycle.png
#2 已发布: 2022/8/25 18:03:22
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

if/else has a long lasted bug.
It doesn't allow you to compute in certain situations.
I had a list for that, if I can find I will post it here.
You can use cases() if you encounter a bug.

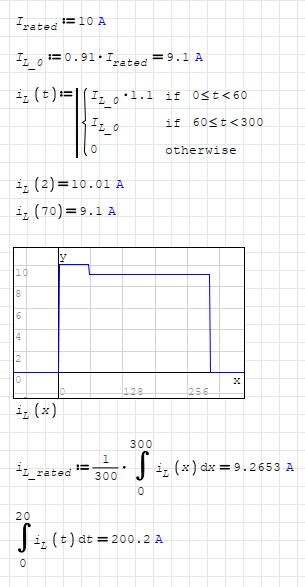

Here is your file re-written with cases.

Regards

cases instead ifelse.sm (7.35 KiB)已下载 1356 次。

1位用户喜欢此帖子
Davide Carpi 2022/8/25 19:03:00
#3 已发布: 2022/8/25 19:25:07
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Dear, I would like to ask you if it is possible to perform integrals of functions defined by intervals.


Yes, though very many had to be doctored.
Jean

Integrate Discontinuous.sm (10.75 KiB)已下载 1393 次。
#4 已发布: 2022/8/25 19:50:54
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Integrate Discontinuous SCALAR.sm (6.71 KiB)已下载 1364 次。
#5 已发布: 2022/8/25 19:53:00
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Here is my reply to if bug.
https://en.smath.com/forum/yaf_postsm75905_bug-in-if.aspx#post75905

There are other bugs with some specific conditions.
Don't get confused with long list, when you get use to smath it gets easier to remember.
I didn't mention if/else in this reply, but it can be added.
https://en.smath.com/forum/yaf_postsm71178_solve---bugs.aspx#post71178

And here is a list may be useful to consider.
https://en.smath.com/forum/yaf_postsm76117_Vertical-Bar-Question.aspx#post76117

Regards
#6 已发布: 2022/8/26 08:22:51
Juan Manuel

Juan Manuel

0个赞,共14个帖子。

组: User

Wrote

Here is my reply to if bug.
https://en.smath.com/forum/yaf_postsm75905_bug-in-if.aspx#post75905

There are other bugs with some specific conditions.
Don't get confused with long list, when you get use to smath it gets easier to remember.
I didn't mention if/else in this reply, but it can be added.
https://en.smath.com/forum/yaf_postsm71178_solve---bugs.aspx#post71178

And here is a list may be useful to consider.
https://en.smath.com/forum/yaf_postsm76117_Vertical-Bar-Question.aspx#post76117

Regards




Thanks to both
