Insulation - Set up as solve block? - 消息

#1 已发布: 2018/3/19 16:21:45
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

Brain fried. Looking for some help re-structuring this. At least the students understood this math Tank Wall Temperature Insulation.smz (951.26 KiB)已下载 1256 次。
#2 已发布: 2018/3/19 19:58:25
Ernesto

Ernesto

13个赞,共74个帖子。

组: User

What exactly do you want to do?
#3 已发布: 2018/3/19 21:41:47
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

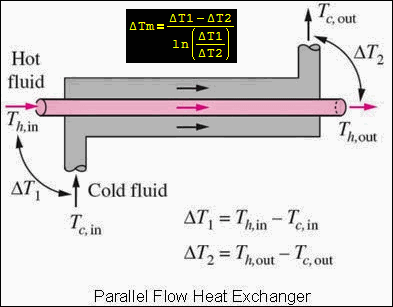

#4 已发布: 2018/3/20 11:04:27
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

Sorry. I'm looking to have SMath do the algebraic manipulation ...
#5 已发布: 2018/3/20 15:20:08
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Sorry.I'm looking to have SMath do the algebraic manipulation ...



Smath will not do it by itself, unless appropriately coded.

http://se.asee.org/proceedings/ASEE2004/P2004127chemiHOD.pdf
#6 已发布: 2018/3/20 17:31:24
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

Different approach. Trying to use FindRoot. Tank Wall Temperature Insulation(C).smz (242.77 KiB)已下载 1244 次。
Right now, I have a manual override.
#7 已发布: 2018/3/21 01:04:01
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Different approach


Attach *.sm ... instead.


#8 已发布: 2018/3/21 08:57:29
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

Jean,
Wrote

Different approach. Trying to use FindRoot. Tank Wall Temperature Insulation(C).smz (242.77 KiB)已下载 1244 次。
Right now, I have a manual override.


This is Rev "C" so it's a NEW file

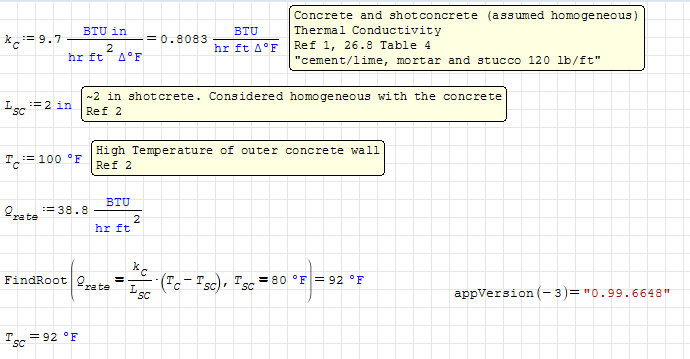

With that said, I am attaching Rev "D". I cannot figure out the error. Value is now coming in correctly. Attached is a screen shot of a "scratch" file I created with just the variables Tank Wall Temperature Insulation(D).sm (200.1 KiB)已下载 1138 次。
Tank Wall D.PNG
#9 已发布: 2018/3/21 15:07:44
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

Not sure what I did, but FindRoot seems to have worked ...
Sanity check Rev E? Tank Wall Temperature Insulation(E).smz (102.45 KiB)已下载 1183 次。

Next is to add a plot --> Ins. thickness vs. T1
#10 已发布: 2018/3/21 17:29:30
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Not sure what I did,



There is a closely related example in Mathcad, just a bit [a big bit] more involved.
My expertise on that is about a thermostated tank, once insulated from some of the
reference you mentioned, and local standards vary.
*.smz = 103 kB ... *.sm = 102 kB

#11 已发布: 2018/3/22 12:40:43
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

Graphing problem with units not cancelling out. Go to bottom of page. Essentially, all values are calculated with Kelvin. I change the units in the array to F and we are OK.
I then try and divide by F, and I get K over F. So I cannot plot ...

Also, my program updated this morning to 0.99.6654
File version F Tank Wall Temperature Insulation(F).smz (105.96 KiB)已下载 1182 次。
#12 已发布: 2018/3/22 13:41:14
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

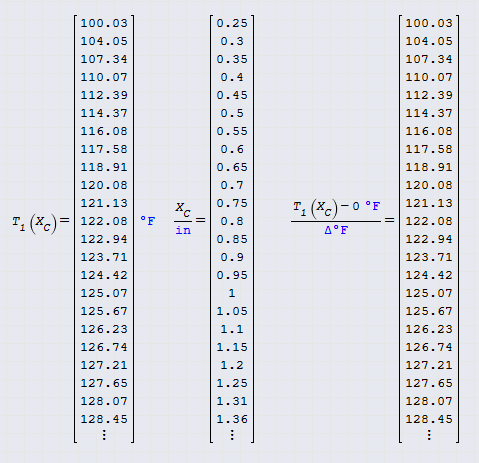

2018-03-22 17_40_02-SMath Studio - [Tank%20Wall%20Temperature%20Insulation(F).smz_].png
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#13 已发布: 2018/3/22 13:52:44
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

So I cannot plot ...



In red below WS

Tank Wall Temperature Insulation(F).smz (106.24 KiB)已下载 1173 次。

#14 已发布: 2018/3/22 14:18:55
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

Jean,
I need the Y axis in degree F. This plots to Kelvin.
Also, why did you define "isolate"? I should be able to use augment straight up ... shouldn't I?
Also, how did you scale the graph?
#15 已发布: 2018/3/22 14:47:18
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Jean,
I need the Y axis in degree F.This plots to Kelvin.
Also, why did you define "isolate"?I should be able to use augment straight up ... shouldn't I?
Also, how did you scale the graph?



I'm reworking a bit the project, pretty messy.
Hope it's correct from your reference(sss)
Bloody Imperial system !
Instead of scaling the graph, use X_Y Maxima.
Isolate to get rid of Units for plotting.
Maybe multiply by the conversion K => F

Jean

#16 已发布: 2018/3/22 14:51:32
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

Thank you Jean. The units should be adjustable per https://en.smath.info/forum/yaf_postst4793_Ploting-equation-with-units-does-not-work.aspx. I was trying to use the built in units to convert, but had the same issues going to degrees C.
#17 已发布: 2018/3/22 15:20:02
Davide Carpi

Davide Carpi

1,443个赞,共2,936个帖子。

组: Moderator

Wrote

I was trying to use the built in units to convert, but had the same issues going to degrees C.



Nice worksheet.

Have you tried with the solution porposed by martin? (°F instead of °C of course)

Wrote

2018-03-22 17_40_02-SMath Studio - [Tank%20Wall%20Temperature%20Insulation(F).smz_].png



2018-03-22 19_16_47-SMath Studio - [Tank%20Wall%20Temperature%20Insulation(F).smz_].png

2018-03-22 19_23_29-SMath Studio - [Tank%20Wall%20Temperature%20Insulation(F).sm_].png
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#18 已发布: 2018/3/22 16:28:44
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

Martin,
I totally spaced your graphic. Can you explain the -0 degree C or F concept as this was not intuitive? I understand the delta T since we are subtracting temperatures ... Maybe this is just the work around and I answered myself

Now the better part ... a loop. As the surface temperature is allowed to remain warmer, the thickness will increase. This should be similar to the Colebrook loop. I need to find my notes on that sheet.
#19 已发布: 2018/3/22 17:13:17
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

Temperature gauges/units are special in that they may differ by a factor and an offset from a reference gauge. When using gauges without offset, just like K or °Rankine you can obtain the unitless numeric value by dividing the quantity by the unit. When you have an offset, you have to remove this first, hence the -0°F term. Then you divide by the relative unit matching your gauge.
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
1位用户喜欢此帖子
ElSid 2018/3/22 17:37:00
#20 已发布: 2018/3/23 12:29:48
Ruben Sidranski

Ruben Sidranski

17个赞,共465个帖子。

组: User

OK, going back to sanity check some values. I'll work on the look after I get the units right.
Martin,
I thought I canceled out units per your comment above in the new FindRoot equation
Version G Tank Wall Temperature Insulation(G).smz (106.16 KiB)已下载 1162 次。
