Involute Function

Involute Function - A snippet for using the involute and inverse involute function in worksheets - 消息

#1 已发布: 2016/5/10 15:37:11
Daniel

Daniel

2个赞,共7个帖子。

组: User

Hi All -

I've recently discovered Smath, and have dove in headfirst.

Because of my work, I can't share much of what I do but I'd like to give back to the community as well as take - even if it's only a little bit.

With that said - in my daily life I do a lot of work with gears. When doing calculations, the involute function - and more importantly its inverse - always come up.

The best and most accurate method we have found for solving the inverse is an iterative method.

Attached is the snippet I've been using at the top of many of my worksheets.

Hope it helps someone else!

Dan
InvoluteCalcs.sm (3.51 KiB)已下载 1622 次。
2位用户喜欢此帖子
Davide Carpi 2016/5/10 19:24:00, Andrey Ivashov 2016/5/10 19:37:00
#2 已发布: 2016/5/10 20:01:41
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Like this ? You can only plot discrete. You can inerpolate.

Very nice, Jean

Forum Involute.gif
#3 已发布: 2016/5/10 21:39:56
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

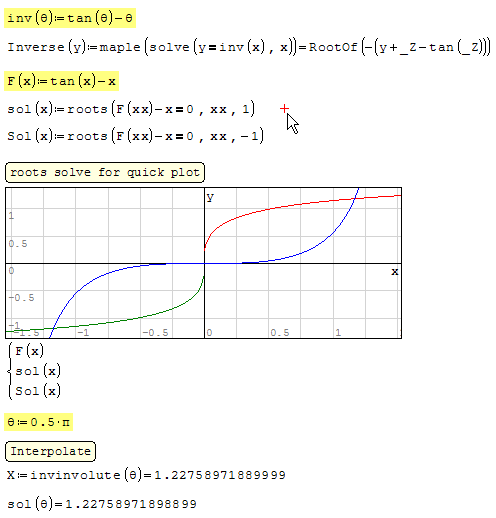

... the "RootOf" reverts to solving with "roots".
We can't get a single plot by bracketing the search,
there is granularity in the solver. I believe the
roots solve is more accurate [sol(x), Sol(x)], just
from educated guess.

Jean

Forum Involute Roots.gif
#4 已发布: 2016/5/11 01:24:09
Peter

Peter

9个赞,共16个帖子。

组: User

Hello Dan,

I use the function

arcinv(invx):=solve(inv(x)=invx;x;0;π/2)

Peter
#5 已发布: 2016/5/11 10:33:47
Daniel

Daniel

2个赞,共7个帖子。

组: User

All -

Thanks for the quick and informative replies. I have a lot to learn about the software yet.

While the iterative method is accurate enough for what we're doing, I'll probably use the solve() function going forward now that I know how it works. Turns out I had a bit to learn about the different types of = in the software.


Dan


#6 已发布: 2016/5/11 10:50:29
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Hello Dan,

I use the function

arcinv(invx):=solve(inv(x)=invx;x;0;π/2)

Peter



Most interesting, for the longer range. Often, 'solve' is guilty
of inaccuracy. Two examples in the attached proof. Thanks for
visiting and your input. A puzzling application, hard to verdict.

Jean

Solve Involute.sm (28.48 KiB)已下载 1665 次。
