Animation double pendulum and a pendulum on a spring

Animation double pendulum and a pendulum on a spring - Ber7 - 消息

#1 已发布: 2011/6/23 10:33:05
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User



https://smath.com/wiki/GetFile.aspx?File=DPendulum.rar
#2 已发布: 2011/6/23 10:35:31
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User


https://smath.com/wiki/GetFile.aspx?File=SwingSpring.rar
#3 已发布: 2011/10/4 23:55:05
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User




https://smath.com/wiki/GetFile.aspx?File=SwingSpring1.rar
#4 已发布: 2011/11/5 17:42:51
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User







https://smath.com/wiki/GetFile.aspx?File=ElleptPendul.rar
#5 已发布: 2012/3/22 18:38:36
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User


https://smath.com/wiki/GetFile.aspx?File=ElastSuspesion.rar
1位用户喜欢此帖子
Andrey Ivashov 2012/3/22 20:24:00
#6 已发布: 2012/10/2 23:41:11
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

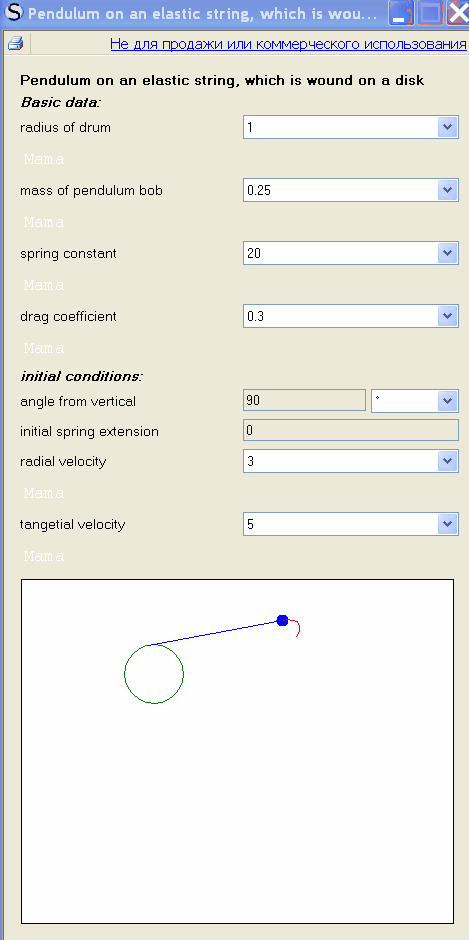

Pendulum on an elastic string, which is wound on a disk
Translated from Mathcad program (the author-Alen Stevens)
http://communities.ptc.com/videos/3335



https://smath.com/wiki/GetFile.aspx?File=ELastPend.rar
#7 已发布: 2013/5/29 12:49:49
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Crankshaft-Driven Pendulum
The idea is taken from the site http://demonstrations.wolfram.com/CrankshaftDrivenPendulum/
Interactive animation
https://smath.com/wiki/GetFile.aspx?File=PendulKrivExe.rar

PendulKriv1.sm (25.17 KiB)已下载 1690 次。
3位用户喜欢此帖子
Davide Carpi 2013/5/29 13:00:00, IVR 2013/5/29 13:07:00, Andrey Ivashov 2013/5/29 15:04:00
#8 已发布: 2013/6/6 08:43:27
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Wrote

Pendulum on an elastic string, which is wound on a disk
Translated from Mathcad program (the author-Alen Stevens)
http://communities.ptc.com/videos/3335



https://smath.com/wiki/GetFile.aspx?File=ELastPend.rar



Interactive animation
https://smath.com/wiki/GetFile.aspx?File=ELastPendExe.rar
2位用户喜欢此帖子
IVR 2013/6/6 12:47:00, Davide Carpi 2013/6/6 13:14:00
#9 已发布: 2013/7/30 13:56:21
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Rigid rod rocks on a circular surface (Ali H.Nayfeh,Dean T.Mook,Nonlinear Oscillations,1995)
Used an ODE plugin.

rigid1.smz (37.57 KiB)已下载 1783 次。
2位用户喜欢此帖子
Davide Carpi 2013/7/30 16:25:00, Martin Kraska 2013/7/30 17:21:00
#10 已发布: 2013/7/30 17:05:22
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

I 'd propose some adjustments to the functions x(t) and y(t)

[MATH]x(t):eval(r*(sin(θ(t))-θ(t)*cos(θ(t))))[/MATH]

[MATH]y(t):eval(r*(cos(θ(t))+θ(t)*sin(θ(t))))[/MATH]

The differential equation does not account for h, therefore it is correct only for h=0 (rigid bar with no thickness).
rigid1.sm (50.86 KiB)已下载 1659 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
2位用户喜欢此帖子
Davide Carpi 2013/7/31 06:03:00, Fridel Selitsky 2013/7/30 17:41:00
#11 已发布: 2013/7/30 19:08:55
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Thank you,Martin! Your comments are absolutely correct.
I really made a mistake, you have corrected.
Workheet updated. Thank you again.
Fridel Selitsky.
1位用户喜欢此帖子
Davide Carpi 2013/7/31 06:03:00
#12 已发布: 2013/7/31 05:19:31
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

I should add that the equations of motion of the center of the rod obtained by Martin, are the parametric equations of the involute, which corresponds to the physical meaning of the problem.
1位用户喜欢此帖子
Davide Carpi 2013/7/31 06:03:00
#13 已发布: 2013/8/5 11:41:35
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Fluctuations of three loads
(Ali H.Nayfeh,Dean T.Mook,Nonlinear Oscillations,1995)

The system consists of two extreme loads mass m1 and medium load mass m2 (2m1> m2). If the average load deviate from the equilibrium position, the system begins to oscillate


Blok2.smz (42.68 KiB)已下载 1702 次。
1位用户喜欢此帖子
Martin Kraska 2013/8/7 07:00:00
#14 已发布: 2013/8/11 12:29:48
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Неваляшка(Roly-poly)
The idea is taken from the site
http://demonstrations.wolfram.com/RockingRolyPolyToy/
The center of mass is below the center of rotation of the body



PoluCil1.smz (9.53 KiB)已下载 1758 次。
3位用户喜欢此帖子
Davide Carpi 2013/8/11 12:36:00, Вячеслав Мезенцев 2013/8/11 13:12:00, Martin Kraska 2013/8/11 16:41:00
#15 已发布: 2013/8/26 15:26:45
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Pendulum Dangling from a Slider-Crank


PendulKrivGoriz.smz (6.49 KiB)已下载 1809 次。
2位用户喜欢此帖子
Martin Kraska 2013/8/26 18:00:00, Davide Carpi 2013/8/28 18:22:00
#16 已发布: 2013/9/2 08:12:56
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Examples from the book “Ali H.Nayfeh,Dean T.Mook,Nonlinear Oscillations,1995”



Mass slides.smz (47.96 KiB)已下载 1819 次。
1位用户喜欢此帖子
Davide Carpi 2013/9/2 14:09:00
