Units and matrices

Units and matrices - 消息

#1 已发布: 2010/7/14 15:02:00
Edward Ulle

Edward Ulle

21个赞,共182个帖子。

组: Moderator

I was curious to see how units would be handled in matrices. So I tried a few things and was suprised how well it worked. See screen shot below.

Great job. Well thought out. Remeber everthing is calculated in SI units but comes out fine in US/Imperial units.

Ed
#2 已发布: 2010/10/24 12:11:53
Edward Ulle

Edward Ulle

21个赞,共182个帖子。

组: Moderator

Another advantage of SMath over Mathcad is for matrix elements to have any units and the math is performed correctly. This matrix and multiplication of its elements is not possible in Mathcad.

Ed
#3 已发布: 2012/8/30 02:36:03
ralfsnell

ralfsnell

0个赞,共3个帖子。

组: User

How do these US units work?
If I take a simple force in kips multiplied by a moment arm in ft
I get result in J....then when I try to change units to kip ft
by adding kip, I get m kip...then when trying to get to kip ft
I get

kgm^2 kip'ft
________________
(s^2)kip'ft

Following from cut and paste....
el(F,1)*el(A,2)=225.97*{'kg*'m^2}/{'s^2*''kipft}@''kipft

Also, how do you get the units outside the matrix? I can only
put units immediately after the cell values.

Thanks for any responses.
#4 已发布: 2012/8/30 06:58:49
Davide Carpi

Davide Carpi

1,443个赞,共2,936个帖子。

组: Moderator

Hi ralfsnell,

simply type in the right placeholder

'kip*'ft


regards,

w3b5urf3r
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#5 已发布: 2012/8/31 11:04:14
ralfsnell

ralfsnell

0个赞,共3个帖子。

组: User

Thank you, was trying not to type but rather use the drop-down to insert units.
It appears the "*" was the missing element to that effort.
Appreciate your input and the attachment.

Wrote

Hi ralfsnell,

simply type in the right placeholder

'kip*'ft


regards,

w3b5urf3r



#6 已发布: 2017/1/18 18:45:25
justhumm

justhumm

0个赞,共18个帖子。

组: User

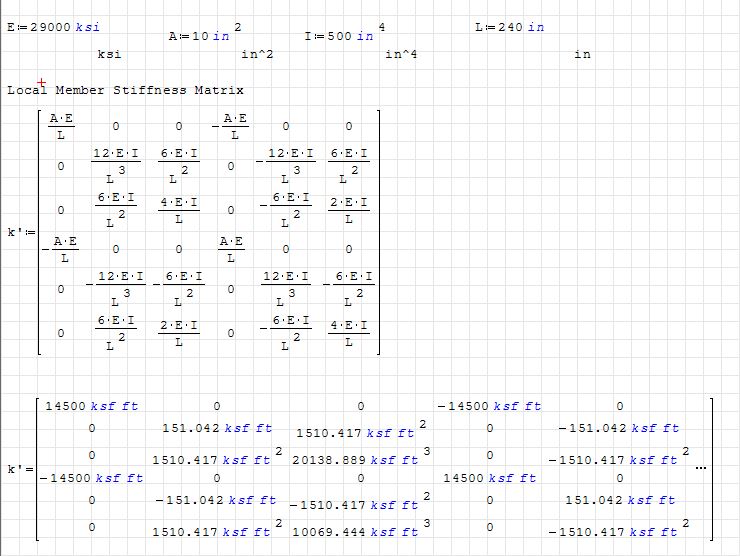

When using a matrix with elements of a variety of units, is there a way to control the display of the resulting units (imperial instead of SI units)?

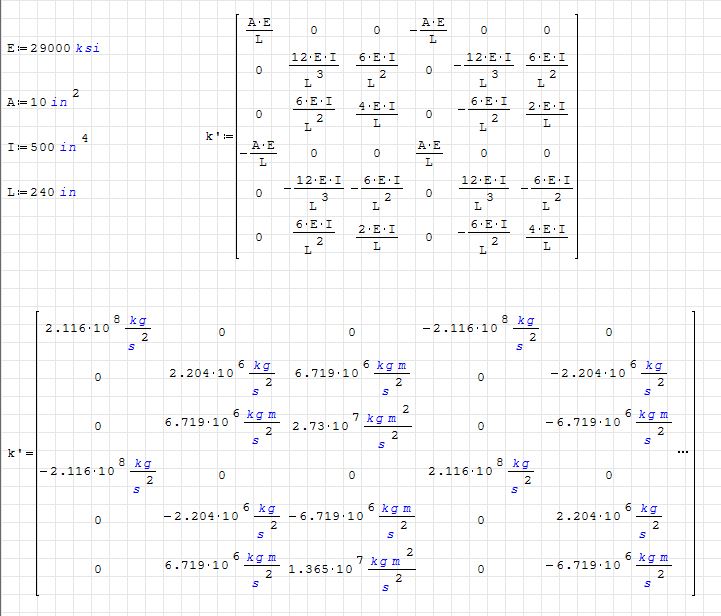

For instance, in the attached image:

k'(1,1) = A(in^2)*E(ksi)/L(in) = kip/inch, but results are in kg/s^2

k'(3,2) = 6 * E(ksi) * I(in^4) / L^2(in^2) = kip, but results are in kg*m/s^2

#7 已发布: 2017/1/18 19:57:29
Davide Carpi

Davide Carpi

1,443个赞,共2,936个帖子。

组: Moderator

Hello [userlink]justhumm[/userlink],

Wrote

When using a matrix with elements of a variety of units, is there a way to control the display of the resulting units (imperial instead of SI units)?



You can try using

OutputUnitsSystem=Imperial

instead of

OutputUnitsSystem=Metric

in

%APPDATA%\Smath\settings.inf


(it is an experimental feature)
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
2位用户喜欢此帖子
frapuano 2017/1/19 06:13:00, justhumm 2017/1/18 20:44:00
#8 已发布: 2017/1/18 20:51:58
justhumm

justhumm

0个赞,共18个帖子。

组: User

Davide Carpi:

Thanks for the response! It seems to be working.

Wishlist item:
It would be nice to have the ability to switch between feet and inches for the default imperial unit. :-)

#9 已发布: 2017/1/19 09:19:54
Davide Carpi

Davide Carpi

1,443个赞,共2,936个帖子。

组: Moderator

You're welcome

Wrote

Wishlist item:
It would be nice to have the ability to switch between feet and inches for the default imperial unit. :-)



You can join the [SS-1]

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#10 已发布: 2022/2/14 18:54:54
Mark R Harris

Mark R Harris

5个赞,共90个帖子。

组: User

When using matrices with units the results are given MKS rather than in the input units as shown here:
Units with Matrices

What an I needing to do to show the correct units?
#11 已发布: 2022/2/14 20:46:07
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Wrote

What an I needing to do to show the correct units?

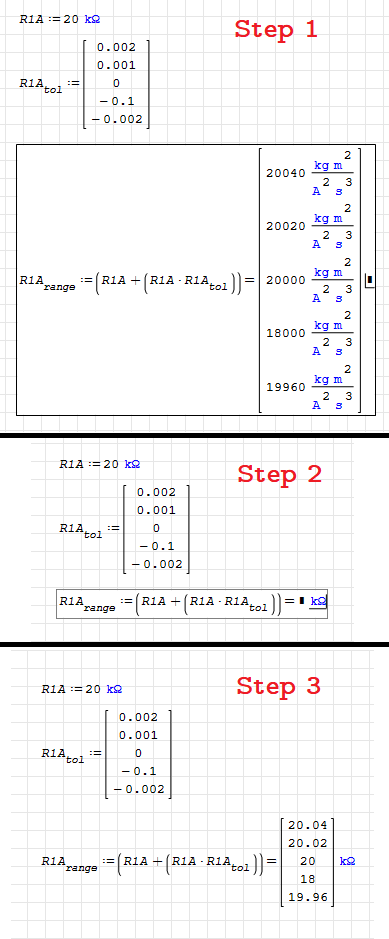

- After you calculate and get the result, click on the expression or move your cursor with keyboard to it (Step 1)
- There should appear a placeholder on the result part, write there your desired output unit (Step 2)
- When you press enter or click outside or just loose the focus for expression, your output shall be in your input units (Step 3)

Regards

#12 已发布: 2022/2/14 22:06:05
Mark R Harris

Mark R Harris

5个赞,共90个帖子。

组: User

Thank you so much Overload, greatly appreciated.
#13 已发布: 2022/2/14 23:08:20
Mark R Harris

Mark R Harris

5个赞,共90个帖子。

组: User

This is getting so close!

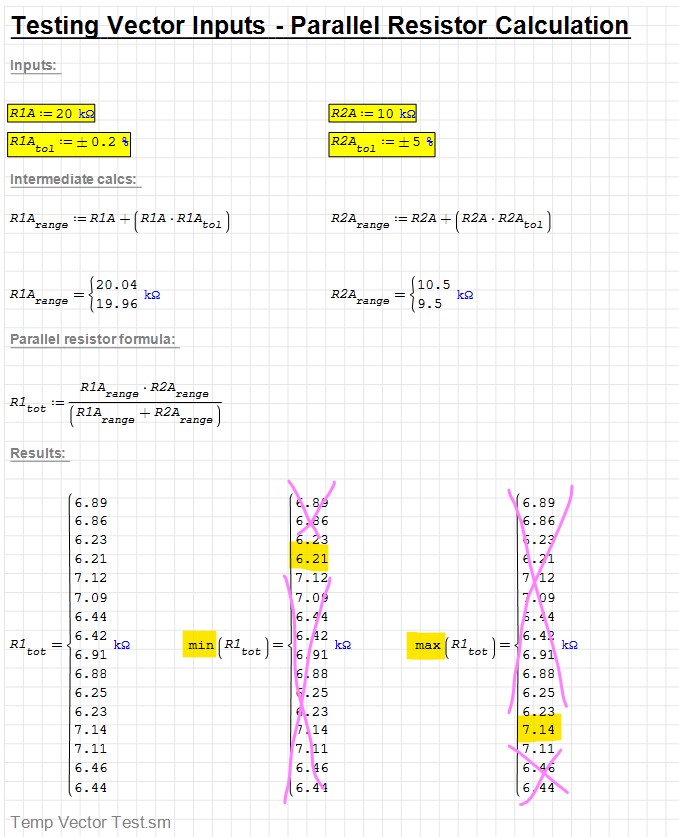

I've tried the plus-minus function, but can't get the min or max element values. I suspect this is because the result isn't a maxtrix:
edit by mod: please use the forum attachment feature; images stored outside the domain soon or leater expires or are removed and the topic becomes unreadable. Thank you.

Or it could be my 'PBCAK' (OSI layer-8) problem...
#14 已发布: 2022/2/15 07:47:55
Davide Carpi

Davide Carpi

1,443个赞,共2,936个帖子。

组: Moderator

Wrote

I suspect this is because the result isn't a maxtrix




That's the cause, yes. You can use sys2mat() function from custom functions plugin or Max()/Min() functions (uppercase M) from the same extension.
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#15 已发布: 2022/2/15 15:46:33
Mark R Harris

Mark R Harris

5个赞,共90个帖子。

组: User

Greatly appreciated Davide. Thank you.
#16 已发布: 2022/2/16 13:40:53
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

#17 已发布: 2022/2/16 13:50:49
Mark R Harris

Mark R Harris

5个赞,共90个帖子。

组: User

Thank you Jean, that is very elegant. What was the function of the red kOHMS:=1?
#18 已发布: 2022/2/16 13:56:11
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

min("matrix") - Returns the smallest element of vector or matrix. If any value is complex, returns min(Re(...)) + i*min(Im(...)).
... Exemplified

2D Plot Discontinuous [min(,)].sm (44.8 KiB)已下载 1538 次。
#19 已发布: 2022/2/16 14:28:13
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Wrote

Thank you Jean, that is very elegant. What was the function of the red kOHMS:=1?


Actually it is not elegant, very primitive method only used by Jean.
He just continues to try to confuse new users.
He make his own units, not compatible with ISO units.
Which is the case here, he assigned a new red colored Ω to 1. (Ω:=1)
That red Ω is not V/A, ask him to divide it to volts. He won't get 1/Amper.

Don't use his methods, them are just bad practices.
2位用户喜欢此帖子
Oscar Campo 2022/3/11 22:52:00, Jason McCool 2022/2/23 18:31:00
#20 已发布: 2022/2/16 15:05:33
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Jean's math is unitless crusade is garbage.
We don't only do pure math calculations.
Engineering and science needs units.
As I have said before;
Math is unitless, science/engineering is not.

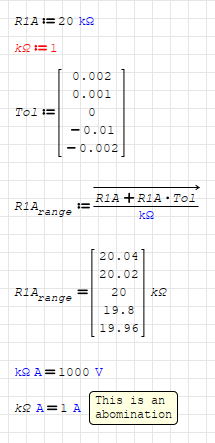

Jean's "silence unit" crap is useless, confusing.
As it is shown below.

2位用户喜欢此帖子
Oscar Campo 2022/3/11 22:51:00, Jason McCool 2022/2/23 18:30:00
