ISA [kPa, rho]

#1 Posted: 2019/5/28 09:52:14

983 likes in 6,866 posts.

Group: User

On the day you will go to Haven, don't forget your bottle,
air is pretty thin up there !

Inst_ISA [kPa].sm (61.94 KiB) downloaded 814 time(s).
Inst_ISA [specific rho].sm (155.14 KiB) downloaded 849 time(s).

#2 Posted: 2019/5/29 10:24:41

Jean Giraud

983 likes in 6,866 posts.

Group: User

1. refreshed/augmented [kPa], [rho]
2. augmented from latest Ralph Carmichael
3. added solve NASA(h)
4. by same token => Mach sub/supersonic.

Inst_ISA [kPa] solve NASA.sm (19.88 KiB) downloaded 889 time(s).
Inst_ISA [kPa].sm (261.98 KiB) downloaded 844 time(s).
Inst_ISA [specific rho].sm (229.24 KiB) downloaded 805 time(s).
Inst_Mach Number Pitot.sm (187.05 KiB) downloaded 1063 time(s).

#3 Posted: 2019/5/29 18:37:53

Jean Giraud

983 likes in 6,866 posts.

Group: User

... here is the missing link, NASA altitude vs kPa.
Two gorgeous segments from discrete NASA inverser
collected in the data inverse. Discrete solver included
as demo for other applications ... play with that one.

Jean

Solve INVERSE Recursive NASA.sm (12.69 KiB) downloaded 977 time(s).
Inst_ISA [kPa] solve NASA altitude.sm (107.66 KiB) downloaded 846 time(s).

#4 Posted: 2019/6/2 19:32:58

Jean Giraud

983 likes in 6,866 posts.

Group: User

Revisit/resume km_kPa ... from several proposals:
1. Thiele two segments
2. Transmute modified Carlos
3. Wolf-Rabbit two segments
4. HKL [simple/corrected]
5. Exact_4 [± 0.001 m ... 0 m up ~ 11 km] <= ! ! !

Inst_ISA [km_kPa] solve NASA Reconciliate Copy.sm (137.46 KiB) downloaded 831 time(s).

#5 Posted: 2019/6/3 22:36:44

CBG

78 likes in 312 posts.

Group: User

Hillo Jean

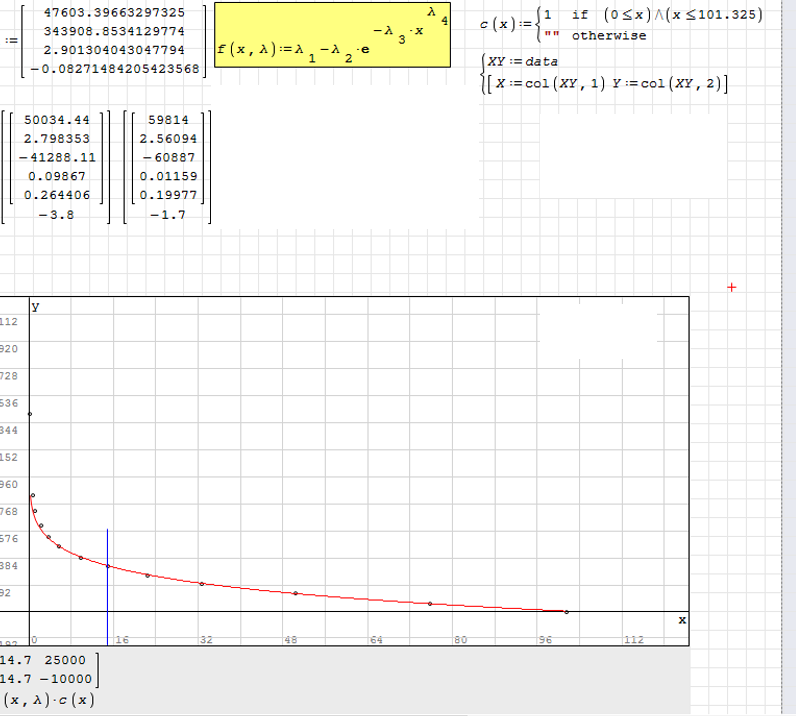

This is another approach

Best Regards

Carlos

#6 Posted: 2019/6/4 00:51:38

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
Hello Jean
This is another approach

Thanks Carlos, tested page 13.
The all range [0 .. 101.325 kPa] ... [0 .. 60km]
resumed in 4 segments of same format, zero error page 11, 12
NASA is short of accepting @ 60 km, pressure still exists !.

Jean

Inst_ISA [km_kPa] solve NASA Reconciliate.sm (196.66 KiB) downloaded 910 time(s).

#7 Posted: 2019/6/4 09:00:35

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
The all range [0 .. 101.325 kPa] ... [0 .. 60km]

... final reconciliation pages 14, 15

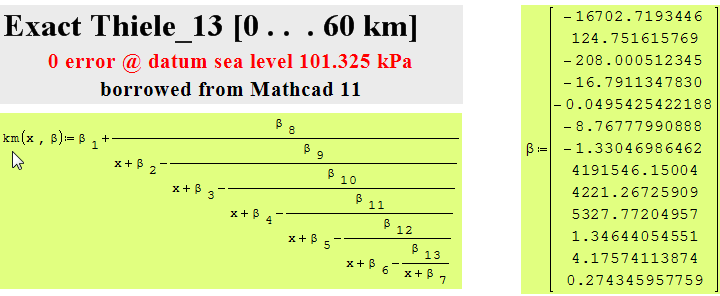

Tiele 13 terms converted to J continued fraction
Just a peanut ... truncate β at will, reasonably, checking Δm.

Jean

Inst_ISA [km_kPa] solve NASA Reconciliate.sm (215.38 KiB) downloaded 894 time(s).

2 users liked this post

frapuano 2019/6/4 10:19:00, NDTM Amarasekera 2019/6/4 11:43:00
