Hello everyone, I have been working since some time in SMath Studio and I encountered a problem with the function approximation show on 3D chart.
I have variable M and I can show the points on graph but I want make something like in the picture 2.
There is my question... Can SMath Studio handle with this?
I would like to do it on standard 3D chart not on "3D Plot" plugin, because this plugin doesn't work on my computer.

picture 1

picture 2
#2 已发布: 2019/1/7 19:05:22
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

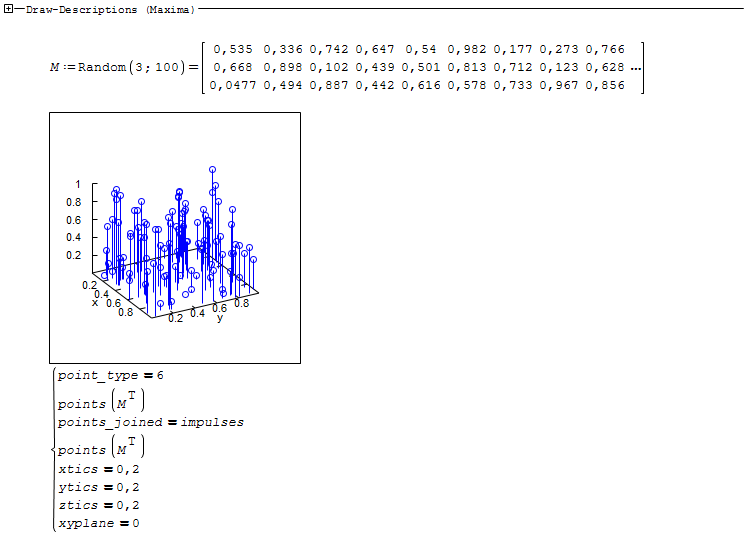

If you can install Maxima and the Maximaplugin on your computer, then you can use Maxima graphics functions.

3di.sm (137.54 KiB)已下载 1432 次。
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
1位用户喜欢此帖子
frapuano 2019/1/7 20:35:00
#3 已发布: 2019/1/7 21:21:03
deretvir

deretvir

0个赞,共2个帖子。

组: User

It works!

Thank you so much for very fast answer.

Kind regards
Deretvir
#4 已发布: 2019/1/8 00:57:04
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

I would like to do it on standard 3D chart not on "3D Plot" plugin, because this plugin doesn't work on my computer.


From the Insert menu, you don't have Plot [2d @, 3D] ?
Something else of [maybe] interest Smath 6179.

Page1.sm (10.47 KiB)已下载 1719 次。
#5 已发布: 2019/1/8 08:12:40
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Graph by means of Smath (without plugin)

3d.sm (18.51 KiB)已下载 1432 次。
3位用户喜欢此帖子
Davide Carpi 2019/1/20 06:43:00, NDTM Amarasekera 2019/1/8 10:27:00, frapuano 2019/1/8 09:00:00
#6 已发布: 2019/1/14 14:12:50
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Intersection of two cylinders
Graphs can be rotated with the mouse.


3dGrafIntersect.sm (17.98 KiB)已下载 1476 次。
2位用户喜欢此帖子
NDTM Amarasekera 2019/1/16 00:29:00, frapuano 2019/1/14 15:26:00
#7 已发布: 2019/1/16 00:17:09
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Intersection of two cylinders
Graphs can be rotated with the mouse.


Thanks Ber7 for the suggestion 6179 rejects u[k:=x[k
When that coding appeared, imitating Mathcad, it was
glorified ad nauseum, nice !
So I posted the quick/short Mathcad Mandelbroth,
that calmed down the glory ... no reply.
RemToDo for spare bed time.
Though, very interesting the plot.

#8 已发布: 2019/1/16 03:56:14
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Hi, Jean, I think these files are suitable for old Smath versions.
2dGrafIntesectM.sm (22.33 KiB)已下载 1427 次。
3dGrafIntersectM.sm (22.06 KiB)已下载 1446 次。
#9 已发布: 2019/1/16 22:31:43
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Hi, Jean, I think these files are suitable for old Smath versions.


This version plots, but not the expected.
The other one 2dGrafIntersectM plots but not interpretable.
Once plotted, Smath 6179 is frozen solid. Anything else attempted freezes the PC
that must be stopped by the button and restarted.
In this returned sheet, here is the Mathcad Gobstopper, if interested.
Cheers ... Jean

3dGrafIntersect (1).sm (17.98 KiB)已下载 1429 次。


#10 已发布: 2019/1/16 22:36:37
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

The other one 2dGrafIntersectM


... sorry: wrong return

2dGrafIntesectM(1).sm (143.48 KiB)已下载 1440 次。
#11 已发布: 2019/1/21 03:58:46
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Cylinders of different diameters


Intersection1.sm (25.36 KiB)已下载 1410 次。
1位用户喜欢此帖子
frapuano 2019/1/21 06:58:00
#12 已发布: 2019/1/30 15:44:21
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Rotation


IntersectioAnimn.sm (30.15 KiB)已下载 1431 次。
1位用户喜欢此帖子
frapuano 2019/1/30 16:38:00
