#1 Posted: 2025/8/3 08:57:18
CBDL STRUCT SMATH

CBDL STRUCT SMATH

7 likes in 4 posts.

Group: User

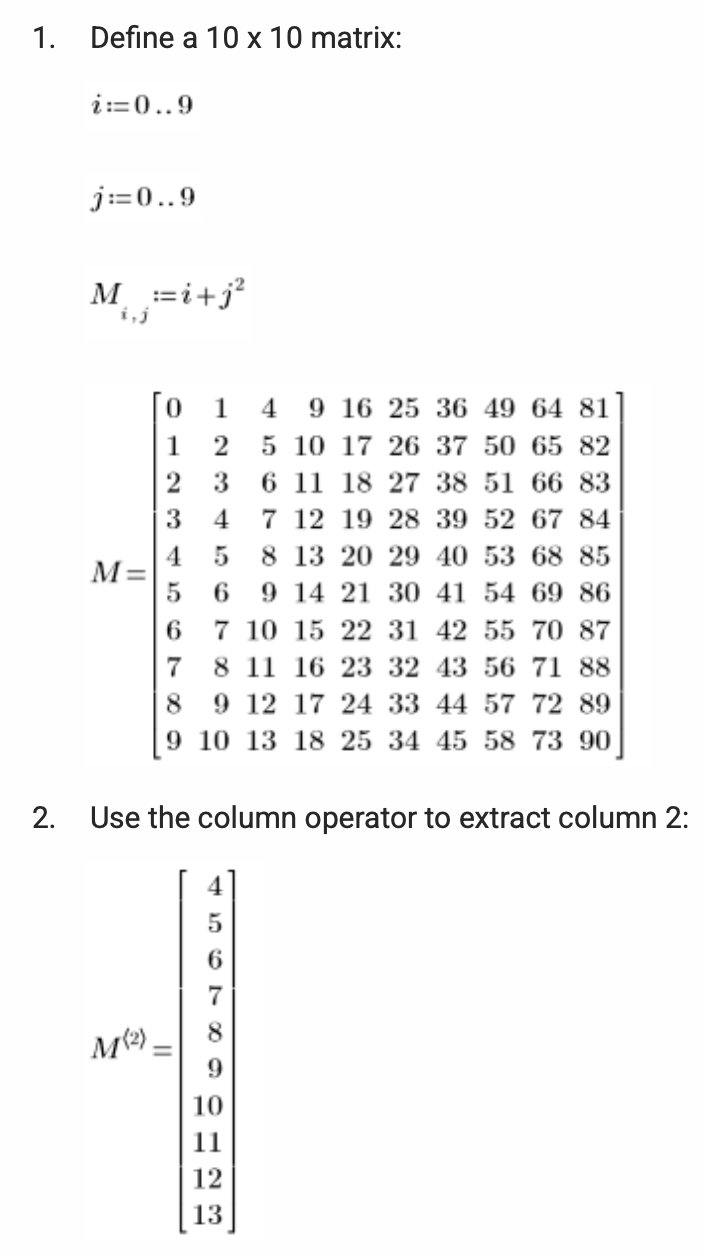

Hi everyone, is there a way to implement mathcad column index operator in smath?

Screenshot 2025-08-03 at 4.57.02 PM.png
Edited 2025/8/3 08:59:35
#2 Posted: 2025/8/3 09:34:49
Вячеслав Мезенцев

Вячеслав Мезенцев

1,544 likes in 1,859 posts.

Group: Moderator

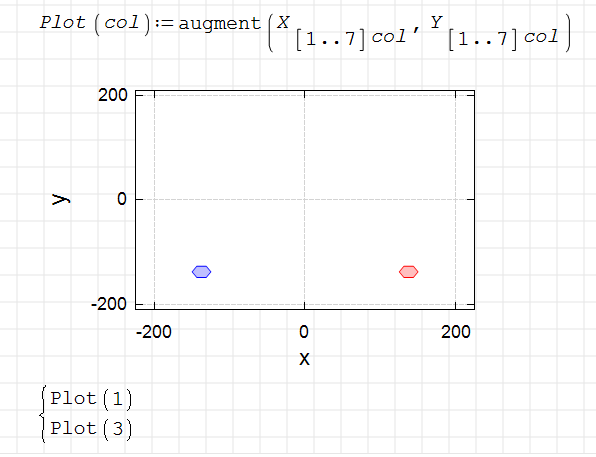

You can use ranges in indexes.

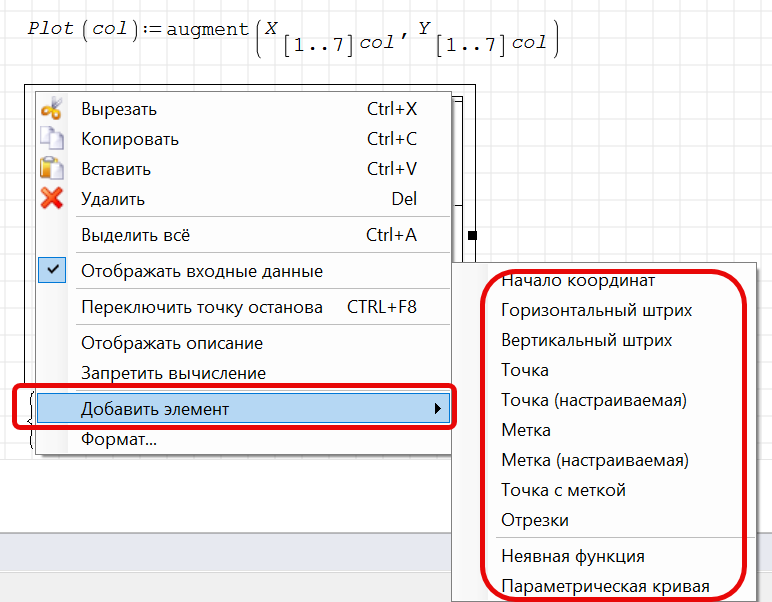

Some examples are built into the component itself. They are needed for self-training of the user.

Edited 2025/8/3 09:37:35
Russia ☭ forever, Viacheslav N. Mezentsev
#3 Posted: 2025/8/3 19:40:04
Martin Kraska

Martin Kraska

1,353 likes in 2,264 posts.

Group: Moderator

Wrote

Hi everyone, is there a way to implement mathcad column index operator in smath?



I think Davide Carpi knows how to implement a custom glyph (in the corresponding plugin) for the col(2) function. I would definitely vote for it.
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
#4 Posted: 2025/8/3 22:23:11
Alvaro

Alvaro

1,106 likes in 1,784 posts.

Group: User

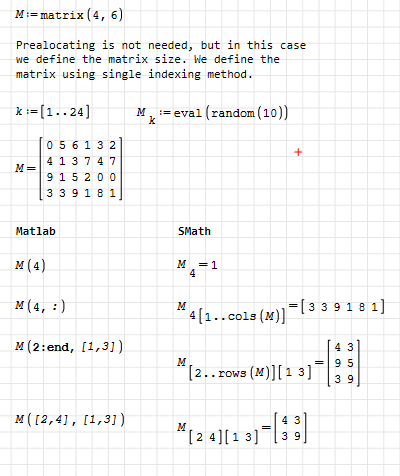

Hi. I think matrix indexing in SMath is more convenient to think of in terms of its Matlab analogy, rather than Mathcad.


Matlab-SMath.sm (9.14 KiB) downloaded 1110 time(s).

For value assignment, the left-hand indices must be assigned variables or constants; that is, they cannot be constructed in the subscript.

Best regards.
Alvaro.
