#641 Posted: 7/24/2025 8:18:27 AM
Установил Development Tools. Но программа 'tst_xyplot_v2.sm' все равно не работает (но, наверное, этот плагин не для этого). В приложении - файл с моей системной информацией.
sys_info.txt
sys_info.txt
#642 Posted: 7/24/2025 8:44:56 AM
В папке плагина есть конфигурационный файл: %APPDATA%\SMath\extensions\plugins\c12231ec-4873-43c1-a7d0-a167ebd17066\0.3.9106.25707\XYPlotPlugin.config
Закройте SMath Studio и измените значение Debug в True:
После этого запустите SMath Studio. В этой же папке появится файл лога: XYPlotRegion.log
Приложите его сюда тоже. Там будет указано какая версия .Net используется плагином для работы.
Закройте SMath Studio и измените значение Debug в True:
<Debug>True</Debug>После этого запустите SMath Studio. В этой же папке появится файл лога: XYPlotRegion.log
Приложите его сюда тоже. Там будет указано какая версия .Net используется плагином для работы.
Edited 7/24/2025 8:45:42 AM
Russia ☭ forever, Viacheslav N. Mezentsev
#643 Posted: 7/24/2025 1:10:31 PM
Sorry, switched to Russian. The file attached is the log-file after the prescribed 'magic' actions
It is written in the file 'Net: 2.0...' I guess it is not what we need.
XYPlotRegion.log
It is written in the file 'Net: 2.0...' I guess it is not what we need.XYPlotRegion.log
Edited 7/24/2025 1:11:27 PM
#644 Posted: 7/24/2025 2:51:12 PM
It's strange that the old version of the framework is selected instead of the new one. In fact, this particular plugin is compatible with the old version, but I haven't tested it in such an environment for a long time.
Perhaps this is the reason.
For everyone else, including me, the new version of the framework is apparently selected.
You can try installing .Net Framework 4.8, for example. Maybe this will help.
Perhaps this is the reason.
For everyone else, including me, the new version of the framework is apparently selected.
You can try installing .Net Framework 4.8, for example. Maybe this will help.
Russia ☭ forever, Viacheslav N. Mezentsev
#645 Posted: 7/24/2025 3:27:42 PM
I was able to reproduce the problem. It is indeed a version issue.
You can also try another solution.
You can try changing the contents of the file: C:\Program Files (x86)\SMath Studio\Solver.exe.config
You can try to remove the old version by deleting the line with it and adding the existing version. You can ask the deepseek to suggest a variant of writing these lines.
P.S. I fixed the error. The fix will be available in the next version of the plugin. The problem was in the plugin sources.
You can also try another solution.
You can try changing the contents of the file: C:\Program Files (x86)\SMath Studio\Solver.exe.config
<startup useLegacyV2RuntimeActivationPolicy="true">
<supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.8" />
<supportedRuntime version="v2.0.50727" />
</startup>You can try to remove the old version by deleting the line with it and adding the existing version. You can ask the deepseek to suggest a variant of writing these lines.
P.S. I fixed the error. The fix will be available in the next version of the plugin. The problem was in the plugin sources.
Edited 7/24/2025 3:49:28 PM
Russia ☭ forever, Viacheslav N. Mezentsev
#646 Posted: 7/24/2025 3:57:27 PM
It works finally. I can see now all plots in program 'tst_xyplot_v2.sm'. I could not download NET Framework 4.8 (some errors). But, as you suggested, I found a version of NET Framework installed on my computer (4.0.30319). I have changed "v2.0.50727" in the second line of 'supportedRuntime ...' to my number, and it works. Thank you for your help. I am really impressed by your dedication, supporting plugins and helping people for more than 15 years.
Edited 7/24/2025 3:58:24 PM
2 users liked this post
#647 Posted: 7/24/2025 4:49:38 PM
Plugin updated. Please try.
Changes:
- added support for high DPI when displaying fonts;
- fixed the CopyTo() method in HashSet.cs;
- supplemented the error message when trying to display complex numbers.
The last problem was related to an incorrect manual implementation of the CopyTo() method, which only now became apparent.
Russia ☭ forever, Viacheslav N. Mezentsev
2 users liked this post
#648 Posted: 7/25/2025 7:10:54 AM
Funny bug. When drawing shapes, the fill is also drawn, even if it is disabled in the curve properties. If you superimpose circles on top of each other, it creates the impression that the color depends on the radius.
XYPlot. Linear polar.sm
XYPlot. Linear polar.pdf
XYPlot. Linear polar.sm
XYPlot. Linear polar.pdf
Edited 7/25/2025 7:15:58 AM
Russia ☭ forever, Viacheslav N. Mezentsev
2 users liked this post
#649 Posted: 7/25/2025 12:45:29 PM
I think I can adapt this syntax to customize the properties of a set of curves.
.Traces##. - for all curves
.Traces#i#j. - for curves from i to j
.Traces##j. - for curves from 1 to j
.Traces#i#. - for curves from i to endEdited 7/25/2025 12:46:02 PM
Russia ☭ forever, Viacheslav N. Mezentsev
1 users liked this post
Rafael H Padilla Velázquez 7/25/2025 3:39:21 PM
#650 Posted: 7/25/2025 5:44:21 PM
Funny bug. ...
Hi Viacheslav. A workaround for the bug, and a simplified way to those plots.
XYPolar.sm
Best regards
Alvaro.
Edited 7/25/2025 5:52:20 PM
1 users liked this post
Вячеслав Мезенцев 7/25/2025 7:28:38 PM
#651 Posted: 7/25/2025 8:42:20 PM
Plugin updated. Please try.
Changes:
- fixed the problem with background filling when drawing shapes.
Russia ☭ forever, Viacheslav N. Mezentsev
2 users liked this post
#652 Posted: 7/26/2025 6:07:13 AM
... Plugin updated. Please try.
It works fine.
Best regards.
Alvaro.
#653 Posted: 7/26/2025 6:15:08 AM
I think I can adapt this syntax to customize the properties of a set of curves....
What about this notation?. And with the option for assigning a vector, like a colormap.
.Traces(,) - for all curves
.Traces(i,j) - for curves from i to j
.Traces(,j) - for curves from 0 to j
.Traces(i,) - for curves from i to endBest regards.
Alvaro.
Edited 7/26/2025 6:16:40 AM
#654 Posted: 7/26/2025 8:24:46 AM
There will be vector support, but I don't use brackets, because it should work in different cases.
Russia ☭ forever, Viacheslav N. Mezentsev
1 users liked this post
Alvaro Diaz Falconi 7/27/2025 6:51:34 AM
#655 Posted: 7/26/2025 11:52:03 AM
It's nice to combine and layer colors.
Edited 7/26/2025 7:49:35 PM
Russia ☭ forever, Viacheslav N. Mezentsev
2 users liked this post
#656 Posted: 7/26/2025 12:11:07 PM
I have a bug when printing. This is a result of adjusting for high DPI.
Edited 7/26/2025 7:48:48 PM
Russia ☭ forever, Viacheslav N. Mezentsev
#657 Posted: 7/26/2025 7:47:47 PM
Plugin updated. Please try.
Changes:
- fixed printing issue in GetDpiScaledFont().
Implementing the scaling function is not easy, I will spend a couple more days testing and fixing bugs.
Edited 7/26/2025 7:54:14 PM
Russia ☭ forever, Viacheslav N. Mezentsev
#658 Posted: 7/26/2025 8:24:12 PM
Plugin updated. Please try.
Changes:
- fixed issue with scaling grid label values.
I hope scaling will work properly for a while now.
Documents that were previously created at high resolution require adjustment of font size.
Edited 7/26/2025 8:39:47 PM
Russia ☭ forever, Viacheslav N. Mezentsev
#659 Posted: 7/28/2025 11:03:23 AM
3 users liked this post
Вячеслав Мезенцев 7/28/2025 11:21:35 AM, francesco rapuano 7/28/2025 1:20:25 PM, sergio 7/28/2025 7:43:31 PM
#660 Posted: 8/3/2025 8:38:44 PM

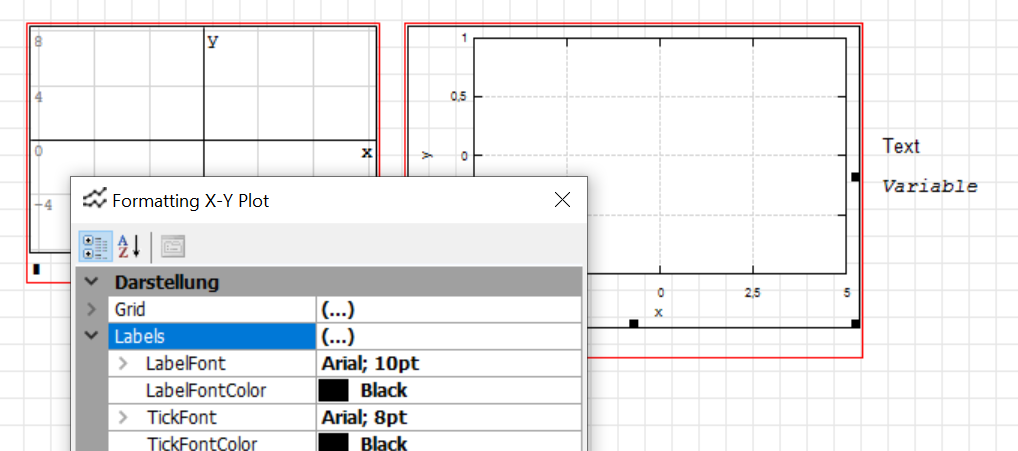

I seem to have problems with the font size in the plugin. The font sizes in the plot region and on the canvas are inconsistent.
The canvas font is set to 10. While the label font is also set to 10 in the region, the labels appear much smaller.
Edit: Meanwhile I found out the reason for the problem. If I change the hardware setup while SMath is running (e.g. switching from docking station with external monitor to just the notebook with built-in monitor) I get the problem as indicated in the screenshot. Yet, if I restart SMath, the problem is fixed.
I don't know if the plot region is supposed to handle the situation without problems but at least I have a workaround.

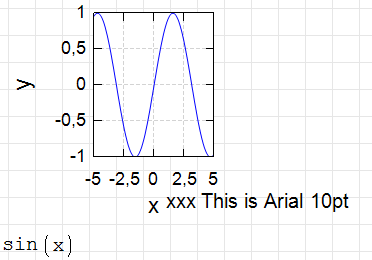

problem nearly fixed (now the labels are slightly too big.)
original problem
System information:
The canvas font is set to 10. While the label font is also set to 10 in the region, the labels appear much smaller.
Edit: Meanwhile I found out the reason for the problem. If I change the hardware setup while SMath is running (e.g. switching from docking station with external monitor to just the notebook with built-in monitor) I get the problem as indicated in the screenshot. Yet, if I restart SMath, the problem is fixed.
I don't know if the plot region is supposed to handle the situation without problems but at least I have a workaround.
problem nearly fixed (now the labels are slightly too big.)
original problem
System information:
Edited 8/3/2025 9:30:48 PM
