Wrote

Updated. Experimental build. Be careful with this. You need to update X-Y Plot first.

Thanks for this handy information.

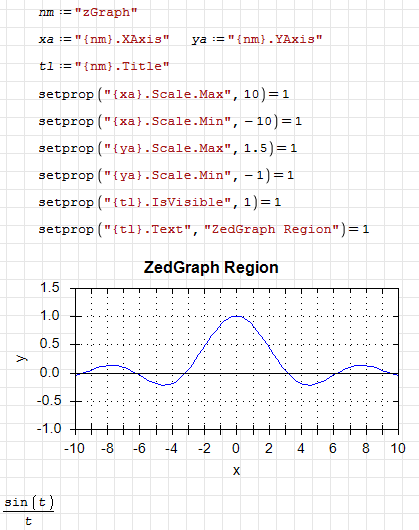

How can it be set properties when I have two or more plots in the same graph? Specifically, I need to set the properties via setprop() function, such as the first plot being plotted as a line (as default) and the second one being plotted with red circles.

Thanks in advance.

Wrote

How can it be set properties when I have two or more plots in the same graph?

Viacheslav mentioned this 2 years ago.
ZedGraph, XYPlot, Mapple Plot uses setprop().
Apparently, it is not possible at the moment.

Regards

https://en.smath.com/forum/yaf_postsm75628_X-Y-Plot-Region.aspx#post75628

Hello~
Excuse me, Could anyone teach me how to add text in the graph pane? [1 1 "Text" 8 "black"] did not work in zedgraph. Thank you very much.

It doesn't work because it's not implemented due to limited human resources. The component itself allows adding text, but there's no one to add the implementation of this feature.

Hi. You can try this.



DrawingTextZedGraph.sm (466.87 KiB) downloaded 161 time(s).

Best regards.
Alvaro.

It works! Thank you so much!
