#81 Posted: 10/11/2023 1:06:41 PM
Oscar Campo

Oscar Campo

134 likes in 309 posts.

Group: Moderator

Wrote

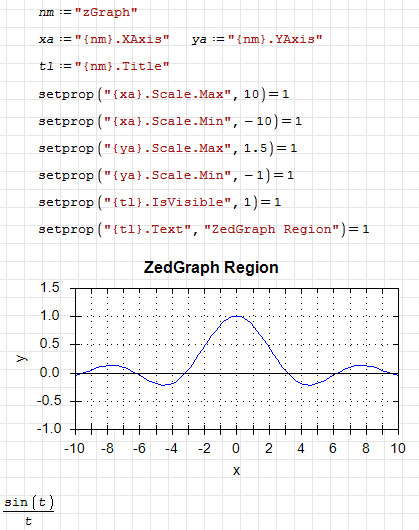

Updated. Experimental build. Be careful with this. You need to update X-Y Plot first.




Thanks for this handy information.
How can it be set properties when I have two or more plots in the same graph? Specifically, I need to set the properties via setprop() function, such as the first plot being plotted as a line (as default) and the second one being plotted with red circles.

Thanks in advance.

#82 Posted: 10/11/2023 2:00:53 PM
overlord

overlord

573 likes in 1,345 posts.

Group: Moderator

Wrote

How can it be set properties when I have two or more plots in the same graph?


Viacheslav mentioned this 2 years ago.
ZedGraph, XYPlot, Mapple Plot uses setprop().
Apparently, it is not possible at the moment.

Regards

https://en.smath.com/forum/yaf_postsm75628_X-Y-Plot-Region.aspx#post75628
1 users liked this post
Oscar Campo 10/11/2023 2:18:00 PM
#83 Posted: 9/6/2025 3:12:59 AM
liwenbus

liwenbus

0 likes in 4 posts.

Group: User

Hello~

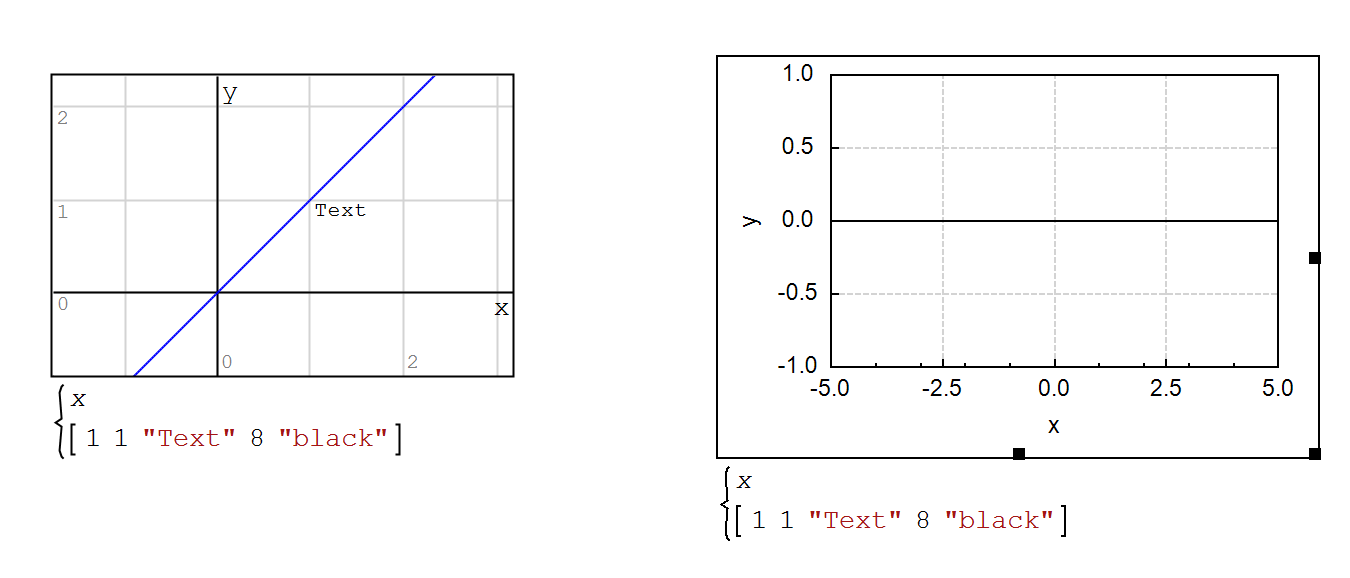

Excuse me, Could anyone teach me how to add text in the graph pane? [1 1 "Text" 8 "black"] did not work in zedgraph. Thank you very much. 20250906_110759.png
#84 Posted: 9/6/2025 10:25:43 AM
Вячеслав Мезенцев

Вячеслав Мезенцев

1,518 likes in 1,825 posts.

Group: Moderator

It doesn't work because it's not implemented due to limited human resources. The component itself allows adding text, but there's no one to add the implementation of this feature.
Russia ☭ forever, Viacheslav N. Mezentsev
#85 Posted: 9/6/2025 5:46:07 PM
Alvaro Diaz Falconi

Alvaro Diaz Falconi

1,054 likes in 1,719 posts.

Group: User

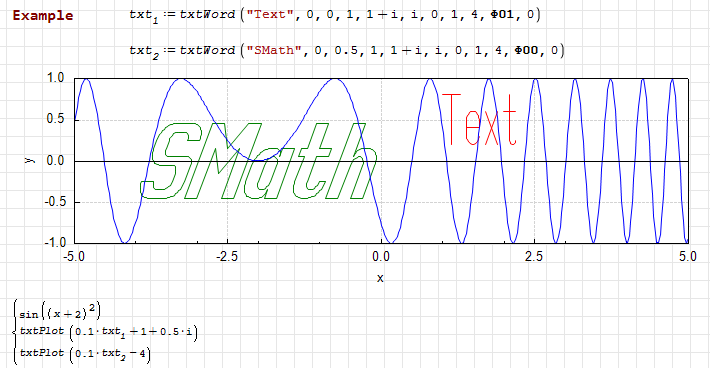

Hi. You can try this.


DrawingTextZedGraph.sm (466.87 KiB) downloaded 86 time(s).

Best regards.
Alvaro.
7 users liked this post
Вячеслав Мезенцев 9/6/2025 11:24:41 PM, liwenbus 9/7/2025 8:28:55 AM, Oscar Campo 9/7/2025 10:09:48 AM, francesco rapuano 9/7/2025 10:26:46 AM, NDTM Amarasekera 9/7/2025 2:06:41 PM, sergio 9/7/2025 4:22:26 PM, ioan92 9/8/2025 10:45:43 AM
#86 Posted: 9/7/2025 8:29:54 AM
liwenbus

liwenbus

0 likes in 4 posts.

Group: User

It works! Thank you so much!
