#301 Posted: 12/1/2016 3:09:15 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

... here is how it looks:

Inst_Navier-Stokes.sm (22 KiB) downloaded 108 time(s).

1 users liked this post

frapuano 12/1/2016 4:32:00 PM

#302 Posted: 12/2/2016 3:45:42 PM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Updated. The problem was in the handling of Greek characters. I hope I did not break anything.

Russia ☭ forever, Viacheslav N. Mezentsev

2 users liked this post

frapuano 12/2/2016 4:52:00 PM, Davide Carpi 12/2/2016 8:24:00 PM

#303 Posted: 12/7/2016 4:04:51 PM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Updated for two last stable releases. It is about greek names again. There is a problem with ; as argument separator. I don't know how to solve this now.

Russia ☭ forever, Viacheslav N. Mezentsev

#304 Posted: 12/9/2016 1:36:49 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

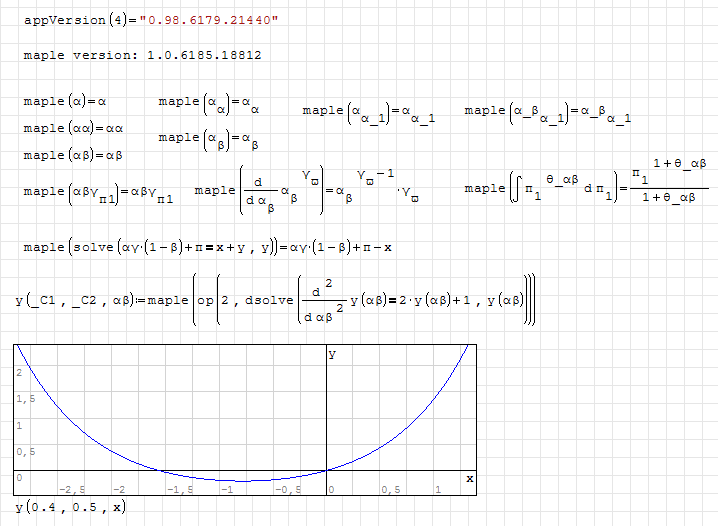

Simple example with using greek identifiers.

Russia ☭ forever, Viacheslav N. Mezentsev

5 users liked this post

Radovan Omorjan 12/9/2016 7:32:00 PM, NDTM Amarasekera 12/9/2016 11:51:00 PM, Arie 12/9/2016 9:22:00 AM, sergio 12/9/2016 6:10:00 AM, frapuano 12/9/2016 7:04:00 PM

#305 Posted: 12/9/2016 7:08:23 PM

frapuano

13 likes in 115 posts.

Group: User

Hi Uni,

as far as you know is it possible to solve inequalities with the Maple Wrapper ?

Best Regards

Franco

#306 Posted: 12/10/2016 12:09:32 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
as far as you know is it possible to solve inequalities with the Maple Wrapper ?

Franco,

Did you mean "equalities" ? rather than than "INequalities"

maple(dsolve) from Viacheslav is OK but not mathematically correct.

Jean

#307 Posted: 12/10/2016 12:15:30 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

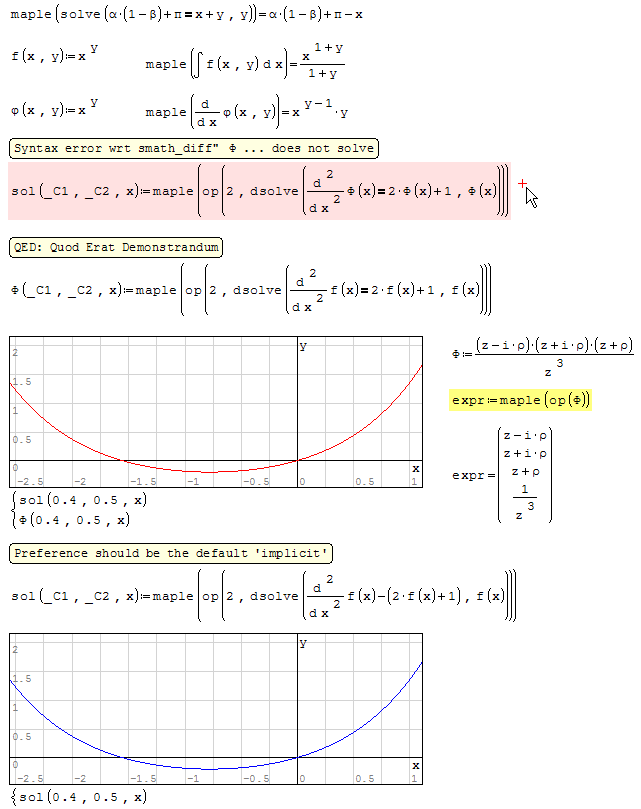

Smath 5346 does not take capital Greek:
... no big deal...

in the red: maple takes φ but rejects Φ

ODE Maple MORE.sm (60 KiB) downloaded 72 time(s).

#308 Posted: 12/10/2016 12:31:17 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

... for those Collabs reading this thread, observe:
in Maple dsolve: _C1, _C2 are not re-addressable.
Why ? => the solution is not an explicit function !
just a plot canvas solution ... gorgeous Smath !!!
Similar instances _Z appear in the result "RootOf"
in this case, _Z is re-addressable by reconstruction.

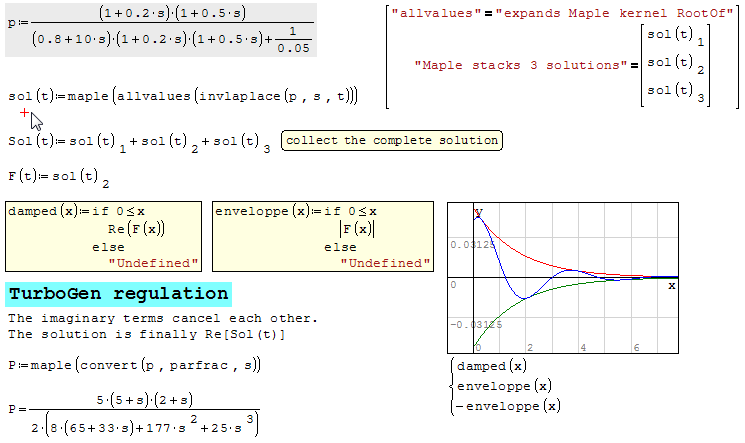

In the "invlaplace", multiple "RootOf" solve by the
maple "allvalues".
Thanks Viacheslav for the dsolve demo.

Jean

#309 Posted: 12/10/2016 12:43:01 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

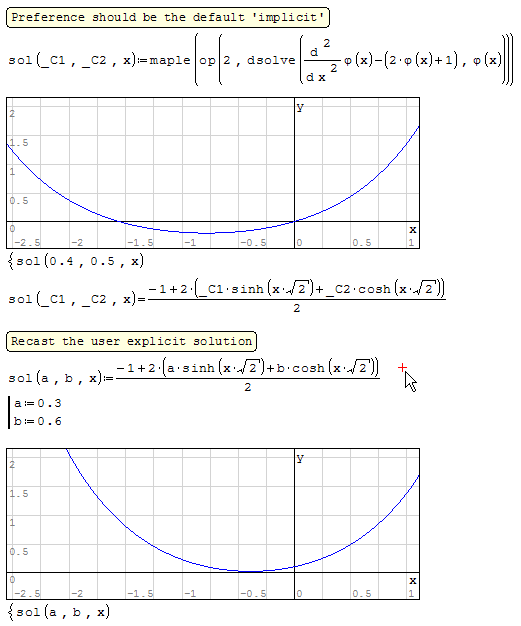

... I was wrong in my previous thread:

#310 Posted: 12/10/2016 2:22:35 PM

frapuano

13 likes in 115 posts.

Group: User

Jean

I am talking of inequalities i.e solve with the Maple Wrapper an expression like X^2+3*X+4>0.

Best regards

Franco

#311 Posted: 12/10/2016 9:32:51 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Jean

I am talking of inequalities i.e solve with the Maple Wrapper an expression like X^2 3*X 4

OK Franco:

Then post your work sheet.

#312 Posted: 12/10/2016 9:48:42 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

... indirectly, this system is solving inequalities.

Jean

Maths 2D Plot Constrained.sm (21 KiB) downloaded 104 time(s).

#313 Posted: 7/6/2018 1:20:22 PM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

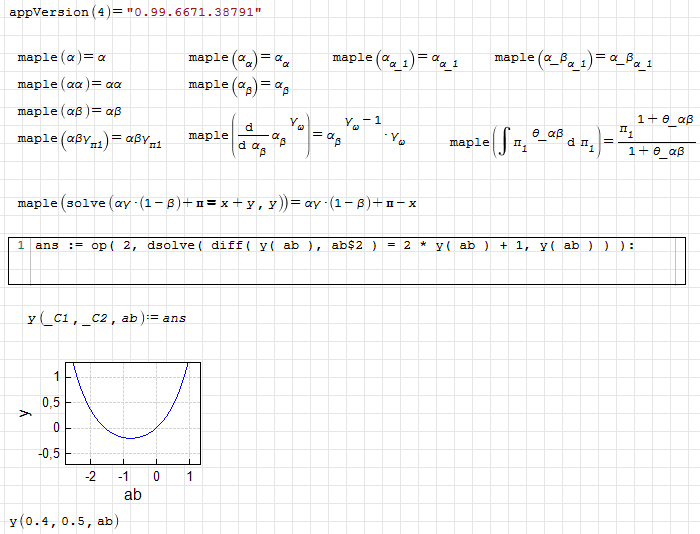

Updated. Maple region implemented.

Only ans variable available outside region.

maple.sm (9 KiB) downloaded 84 time(s).
maple.pdf (39 KiB) downloaded 73 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

6 users liked this post

sergio 7/6/2018 5:12:00 PM, NDTM Amarasekera 7/7/2018 12:34:00 AM, Alvaro Diaz Falconi 8/16/2018 7:56:00 AM, Radovan Omorjan 7/6/2018 1:35:00 PM, IVR 7/6/2018 1:36:00 PM, frapuano 7/6/2018 3:25:00 PM

#314 Posted: 7/18/2018 8:08:26 PM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

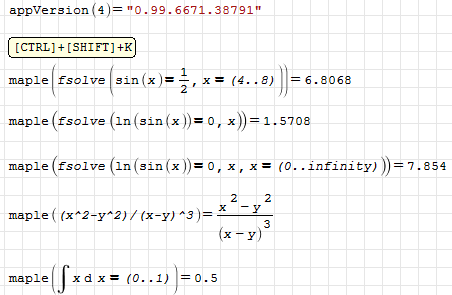

Updated. Added support for [CTRL]+[SHIFT]+K.

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

Alvaro Diaz Falconi 8/16/2018 7:56:00 AM

#315 Posted: 7/19/2018 12:44:10 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Updated. Added support for [CTRL] [SHIFT] K.

In that new code, something does not cut the mustard !

#316 Posted: 7/19/2018 1:45:19 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
In that new code, something does not cut the mustard !

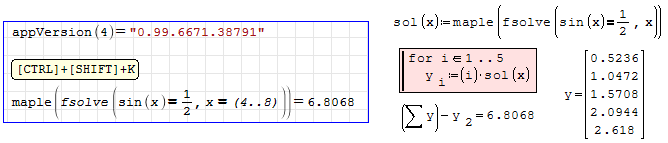

... here is the answer:

#317 Posted: 8/16/2018 7:55:27 AM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Wrote
Updated. Maple region implemented.

Only ans variable available outside region.

Hi Uni. Thanks a lot for this update.

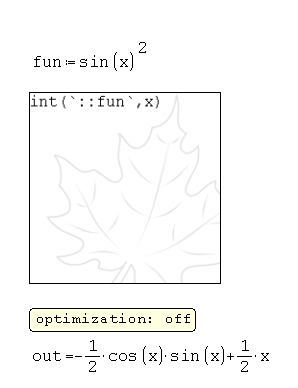

How can access to SMath variables? Seems that isn't with `::fun`

Best regards.

Alvaro.

#318 Posted: 8/16/2018 8:47:27 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
How can access to SMath variables? Seems that isn't with `::fun`

Best regards.

Alvaro.

You assign the Maple solution to a user function defined
wrt the Maple variable you have solve for. Here, Maple is solving
Laplace wrt 't', thus sol(t). Maple stacks multiple solutions.
Not sure if I understand your question clearly.

Jean
