#441 Posted: 4/28/2023 2:22:34 PM

1402 likes in 1708 posts.

Group: Moderator

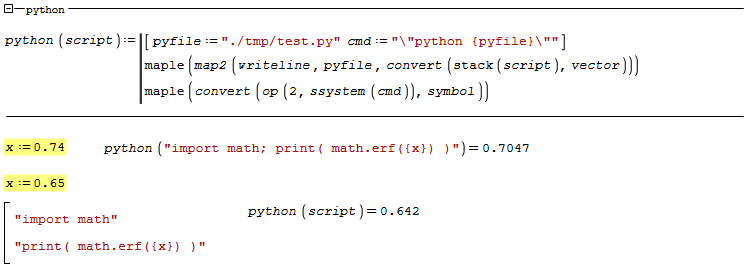

You need to show me MapleTools.log file inside MapleTools directory. It appears then you close the SMath and set Debug to True in MapleTools.config file.

maple-system-python-math.sm (5 KiB) downloaded 37 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

#442 Posted: 4/28/2023 3:52:06 PM

overlord

547 likes in 1330 posts.

Group: Moderator

Here is log file.

Show Spoiler

28.04.2023 21:46:25 [INFO ] [Plugin.Initialize()] SMath Studio Desktop 64-bit 1.0.8348.30405
28.04.2023 21:46:25 [INFO ] [Plugin.Initialize()] Maple Tools, version 1.1.8517.16356, 27-Apr-2023 09:05:12
28.04.2023 21:46:25 [INFO ] [Plugin.Initialize()] OS: Unix 6.1.25.1
28.04.2023 21:46:25 [INFO ] [Plugin.Initialize()] .Net: 4.0.30319.42000
28.04.2023 21:46:25 [INFO ] [Plugin.Initialize()] maple(1) - evaluate symbolic expression.
28.04.2023 21:46:25 [INFO ] [Plugin.Initialize()] Successfully. 1 function(s) loaded.
28.04.2023 21:46:25 [INFO ] [Plugin.Initialize()] Maple commander: /home/username/.config/SMath/extensions/plugins/32dfd679-8cfd-483a-b79a-19d5ea838750/1.1.8517.16356/bin/cmaple.exe
28.04.2023 21:46:25 [INFO ] [Plugin.Initialize()] Temp directory: ./tmp
28.04.2023 21:46:29 [INFO ] [->] map2(writeline,"./tmp/test.py",convert(smath_mat("import math; print( math.erf(0.74) )",1,1),vector))
28.04.2023 21:46:29 [INFO ] /home/username/.config/SMath/extensions/plugins/32dfd679-8cfd-483a-b79a-19d5ea838750/1.1.8517.16356/bin/cmaple.exe ./tmp/in.tmp
28.04.2023 21:46:32 [INFO ] [<-]

28.04.2023 21:46:32 [INFO ] [<-] mat(37,1,1)
28.04.2023 21:46:32 [INFO ] [->] convert(op(2,ssystem("\"python ./tmp/test.py\""),symbol)
28.04.2023 21:46:32 [INFO ] /home/username/.config/SMath/extensions/plugins/32dfd679-8cfd-483a-b79a-19d5ea838750/1.1.8517.16356/bin/cmaple.exe ./tmp/in.tmp
28.04.2023 21:46:34 [INFO ] [<-]

28.04.2023 21:46:34 [INFO ] [->] map2(writeline,"./tmp/test.py",convert(smath_mat("import math","print( math.erf(0.65) )",2,1),vector))
28.04.2023 21:46:34 [INFO ] /home/username/.config/SMath/extensions/plugins/32dfd679-8cfd-483a-b79a-19d5ea838750/1.1.8517.16356/bin/cmaple.exe ./tmp/in.tmp
28.04.2023 21:46:37 [INFO ] [<-]

28.04.2023 21:46:37 [INFO ] [<-] mat(12,24,2,1)
28.04.2023 21:46:37 [INFO ] [->] convert(op(2,ssystem("\"python ./tmp/test.py\""),symbol)
28.04.2023 21:46:37 [INFO ] /home/username/.config/SMath/extensions/plugins/32dfd679-8cfd-483a-b79a-19d5ea838750/1.1.8517.16356/bin/cmaple.exe ./tmp/in.tmp
28.04.2023 21:46:40 [INFO ] [<-]

28.04.2023 21:46:40 [INFO ] [->] smath_int(28561/160000,13/20)
28.04.2023 21:46:40 [INFO ] /home/username/.config/SMath/extensions/plugins/32dfd679-8cfd-483a-b79a-19d5ea838750/1.1.8517.16356/bin/cmaple.exe ./tmp/in.tmp
28.04.2023 21:46:42 [INFO ] [<-]

28.04.2023 21:46:42 [INFO ] [<-] proc()submatrix(el(args,1),el(args,2)..el(args,3),el(args,4)..el(args,5))endproc
28.04.2023 21:46:53 [INFO ] [->] smath_int(x^4,x)
28.04.2023 21:46:53 [INFO ] /home/username/.config/SMath/extensions/plugins/32dfd679-8cfd-483a-b79a-19d5ea838750/1.1.8517.16356/bin/cmaple.exe ./tmp/in.tmp
28.04.2023 21:46:55 [INFO ] [<-]

28.04.2023 21:46:55 [INFO ] [<-] 1/5*x^5
28.04.2023 21:46:58 [INFO ] [->] smath_int(x^4,x)
28.04.2023 21:46:58 [INFO ] /home/username/.config/SMath/extensions/plugins/32dfd679-8cfd-483a-b79a-19d5ea838750/1.1.8517.16356/bin/cmaple.exe ./tmp/in.tmp
28.04.2023 21:47:00 [INFO ] [<-]

28.04.2023 21:47:00 [INFO ] [<-] 1/5*x^5
28.04.2023 21:47:04 [INFO ] [->] smath_int(x^14,x)
28.04.2023 21:47:04 [INFO ] /home/username/.config/SMath/extensions/plugins/32dfd679-8cfd-483a-b79a-19d5ea838750/1.1.8517.16356/bin/cmaple.exe ./tmp/in.tmp
28.04.2023 21:47:07 [INFO ] [<-]

28.04.2023 21:47:07 [INFO ] [<-] 1/15*x^15
28.04.2023 21:47:19 [INFO ] [->] smath_int(x^14,x)
28.04.2023 21:47:19 [INFO ] /home/username/.config/SMath/extensions/plugins/32dfd679-8cfd-483a-b79a-19d5ea838750/1.1.8517.16356/bin/cmaple.exe ./tmp/in.tmp
28.04.2023 21:47:21 [ERROR] 008c:err:winediag:nodrv_CreateWindow Application tried to create a window, but no driver could be loaded.
008c:err:winediag:nodrv_CreateWindow L"The explorer process failed to start."
008c:err:systray:initialize_systray Could not create tray window
0114:err:winediag:nodrv_CreateWindow Application tried to create a window, but no driver could be loaded.
0114:err:winediag:nodrv_CreateWindow L"Make sure that your X server is running and that $DISPLAY is set correctly."

28.04.2023 21:47:21 [INFO ] [<-]

28.04.2023 21:47:21 [INFO ] [<-] 1/15*x^15
28.04.2023 21:47:24 [INFO ] [->] smath_int(x^13,x)
28.04.2023 21:47:24 [INFO ] /home/username/.config/SMath/extensions/plugins/32dfd679-8cfd-483a-b79a-19d5ea838750/1.1.8517.16356/bin/cmaple.exe ./tmp/in.tmp
28.04.2023 21:47:26 [ERROR] 008c:err:winediag:nodrv_CreateWindow Application tried to create a window, but no driver could be loaded.
008c:err:winediag:nodrv_CreateWindow L"The explorer process failed to start."
008c:err:systray:initialize_systray Could not create tray window
0114:err:winediag:nodrv_CreateWindow Application tried to create a window, but no driver could be loaded.
0114:err:winediag:nodrv_CreateWindow L"Make sure that your X server is running and that $DISPLAY is set correctly."

28.04.2023 21:47:26 [INFO ] [<-]

28.04.2023 21:47:26 [INFO ] [<-] 1/14*x^14

#443 Posted: 4/28/2023 3:59:15 PM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

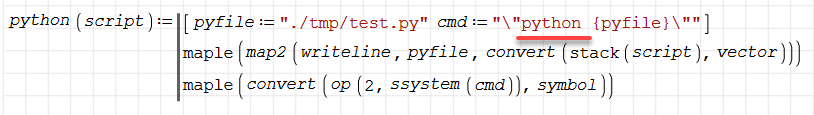

Try to add full path to python. I think the problem is in the paths. You need to understand how the python is called and what path to the script file is passed to it.

Russia ☭ forever, Viacheslav N. Mezentsev

#444 Posted: 4/29/2023 2:38:38 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

maple-system-tools.sm (17 KiB) downloaded 181 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

Alvaro Diaz Falconi 4/29/2023 8:10:00 AM

#445 Posted: 4/29/2023 1:41:22 PM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

maple-system-tools-with-TextRegion.sm (16 KiB) downloaded 40 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

Alvaro Diaz Falconi 4/30/2023 1:40:00 AM

#446 Posted: 4/30/2023 1:49:29 AM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

This requires install numpy and matplotlib under python. Code of the example from here. A lot of examples for matplotlib here. Also, notice that the python window is interactive.

matplotlib.sm (5 KiB) downloaded 53 time(s).

Best regards.
Alvaro.

2 users liked this post

Вячеслав Мезенцев 4/30/2023 5:53:00 AM, churichuro 5/4/2023 2:35:00 PM

#447 Posted: 4/30/2023 7:34:33 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Gnuplot.

You can install it using scoop: scoop install gnuplot

maple-system-gnuplot.sm (14 KiB) downloaded 53 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

#448 Posted: 5/4/2023 9:46:38 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

For better use Text Region uncheck this menu item.

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

churichuro 5/4/2023 2:49:00 PM

#449 Posted: 5/5/2023 4:31:58 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Theoretically, we can connect ngspice for the calculation of electrical circuits.

Links:

1. ngspice - open source spice simulator
2. Ngspice example using py4spice package

Russia ☭ forever, Viacheslav N. Mezentsev

#450 Posted: 5/5/2023 5:07:27 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

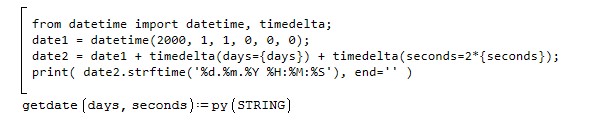

Now let's add modes.

maple-python-mode.sm (11 KiB) downloaded 36 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

churichuro 5/6/2023 3:53:00 PM

#451 Posted: 5/5/2023 2:34:22 PM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

MapleToolsVersion.sm (15 KiB) downloaded 44 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

churichuro 5/6/2023 3:53:00 PM

#452 Posted: 5/5/2023 5:13:31 PM

charlamb

1 likes in 16 posts.

Group: User

Hi, Uni.

This is just a newbie question but how do I insert the code from your last post?

1 users liked this post

Oscar Campo 5/8/2023 4:45:00 PM

#453 Posted: 5/6/2023 12:27:58 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Wrote
Hi, Uni.

This is just a newbie question but how do I insert the code from your last post?

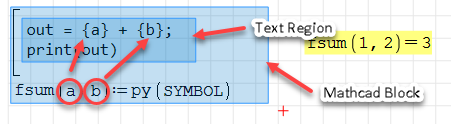

Use Text Region and Mathcad Block. Uncheck menu items with auto helpers and past the code from example. Set the operation for Mathcad Block to mat from the context menu. The Mathcad Block should cover the Text Region. In other words, the Text Region should be inside the frame of the Mathcad Block. It is important.

Russia ☭ forever, Viacheslav N. Mezentsev

2 users liked this post

churichuro 5/6/2023 3:53:00 PM, Oscar Campo 5/8/2023 4:45:00 PM

#454 Posted: 5/7/2023 6:25:50 PM

charlamb

1 likes in 16 posts.

Group: User

Thanks, Uni.

It worked!

#455 Posted: 5/11/2023 10:03:27 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Simplified (complicated).

maple-python-mode.sm (11 KiB) downloaded 47 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

2 users liked this post

churichuro 5/11/2023 7:20:00 PM, NDTM Amarasekera 5/12/2023 2:24:00 AM

#456 Posted: 10/28/2023 2:26:31 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

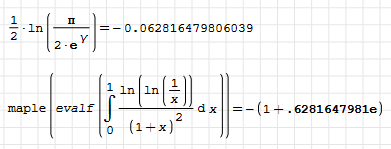

Hi. Usually, evalf (eval as float number) returns wrong results. Is there some workaround, like getting the string, or is it a bug which needs some solution?

Thanks in advance.
Alvaro.

1 users liked this post

sergio 10/28/2023 3:08:00 PM

#457 Posted: 10/29/2023 4:59:39 PM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

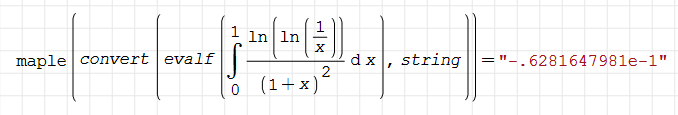

SMath can't convert a string to a number.

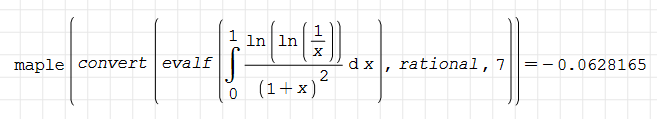

Try this

Russia ☭ forever, Viacheslav N. Mezentsev

2 users liked this post

Alvaro Diaz Falconi 10/29/2023 9:30:00 PM, Oscar Campo 10/30/2023 4:06:00 AM

#458 Posted: 10/29/2023 9:30:56 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Wrote
... Try this

Thanks, Viacheslav! convert fractional works fine.

Best regards.
Alvaro.

#459 Posted: 12/26/2024 9:13:52 AM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Hi.Perhaps a simple way to handle the different names between SMath and Maple could be to use "alias", and without much effort translate functions like arcsin, argument, Bessel and whatever you consider appropriate. If I'm not mistaken, you would only have to define the aliases before reading the SMath input, and it would not require any post-processing. Or maybe more adequate could be "macro". The list of Maple mathematical functions is this one. Others are under packages, like linalg.

Best regards.
Alvaro.

1 users liked this post

Oscar Campo 12/26/2024 9:25:00 AM

#460 Posted: 12/26/2024 2:33:11 PM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

In addition to names, parameter types also need to be converted. They need to be supported in both directions. As for trigonometric functions, the SMath tries to automatically work with names, which prevents them from being supported in the plugin in a controlled way.

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

Oscar Campo 12/26/2024 8:52:00 PM
