Dear all,

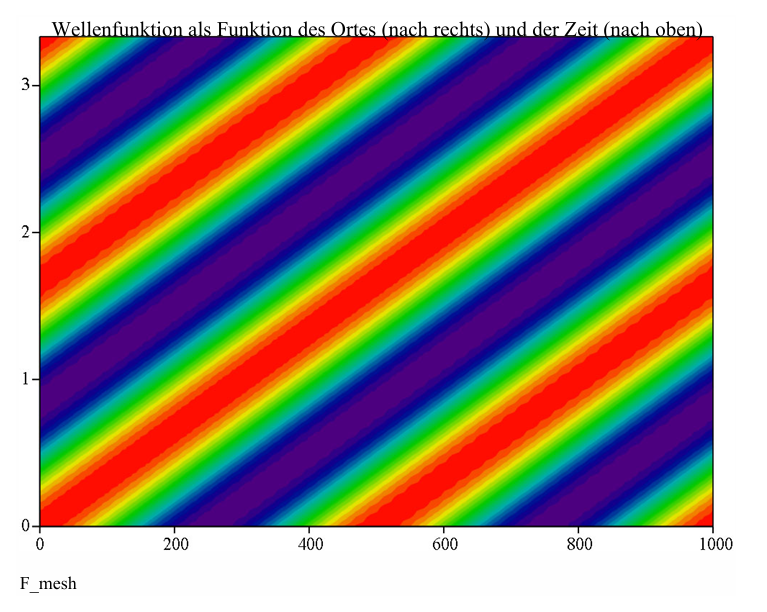

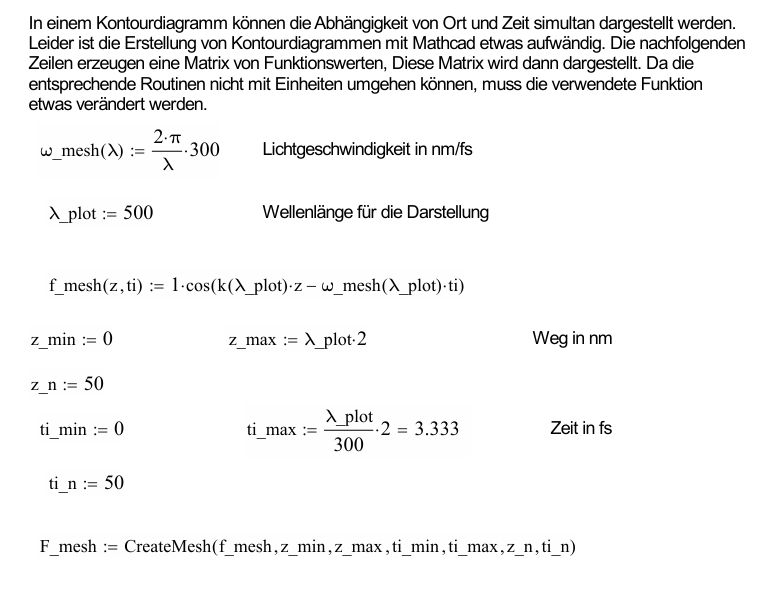

in a Mathcad file, I created a contour plot to display the dependence of place and time of the wavefunction simultaneously. In the mathcad file, I created a matrix without units (see in screenshot).

Now I would like to create this file in SMath. Unfortunately, simple copy and paste doesn't work

I have attached my own SMath file, in which I tried something out. Unfortunately, I am at a loss.

Does anyone have an idea or a helpful tip?

Thanks in advance



wavefunction.sm (11.29 KiB) downloaded 26 time(s).

You can use the Maxima-Plugin or the image region.

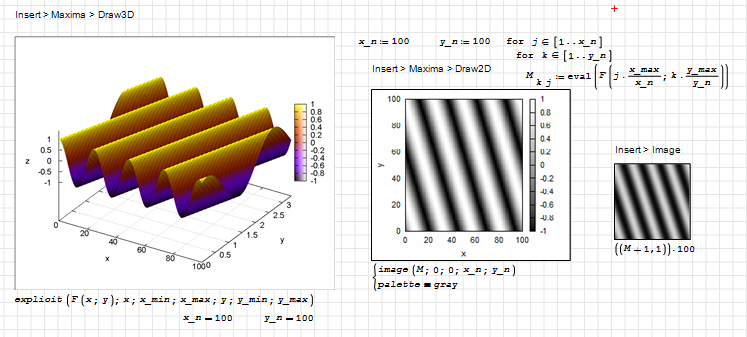

Explicit 3D plotting works if the function is properly translated to Maxima. For instructions see
https://opus4.kobv.de/opus4-fhbrb/solrsearch/index/search/start/0/rows/100/sortfield/score/sortorder/desc/searchtype/simple/query/smath


wavefunction_Kr.sm (85.13 KiB) downloaded 17 time(s).[attach]

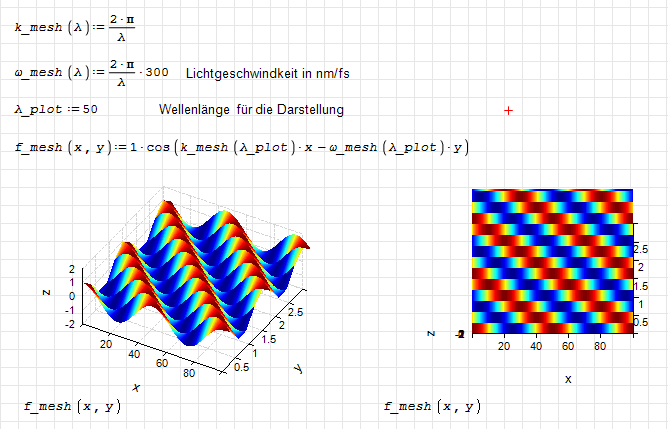

Hi. This is also another option, with the 3D plot plugin ( https://smath.com/en-US/forum/topic/vbCaKa/3D-Plot-Region ), while it has some limitations, it fulfills its purpose on many occasions.



wavefunction.sm (12.04 KiB) downloaded 16 time(s).

Also remember that default ORIGIN in mathcad is zero, but SMath origin is one, and you can't change it.

Best regards.
Alvaro.

THANK YOU Martin and Alvaro!

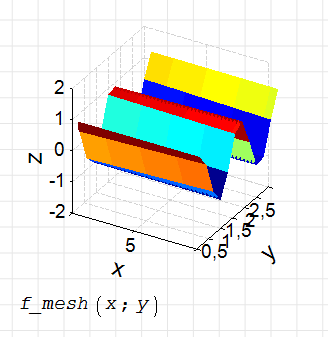

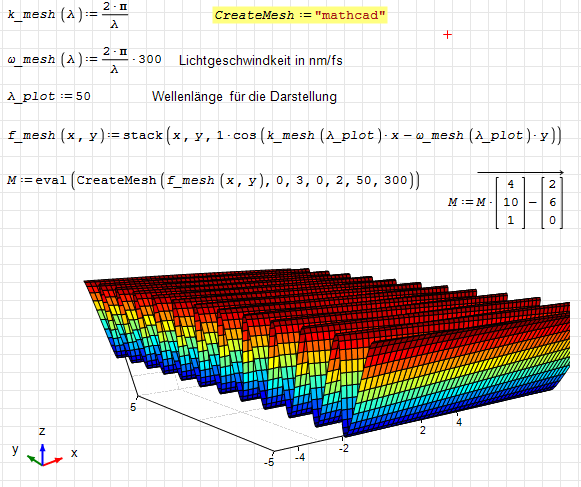

I already had the 3D plot plugin so I started with this option. However my SMath changed some settings for the plot's format and color.

Alvaro, would you please be so kind as to show me the specific settings for the plot?

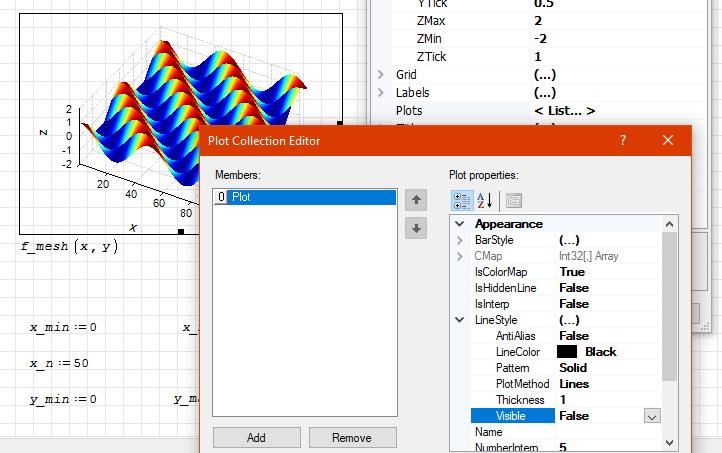

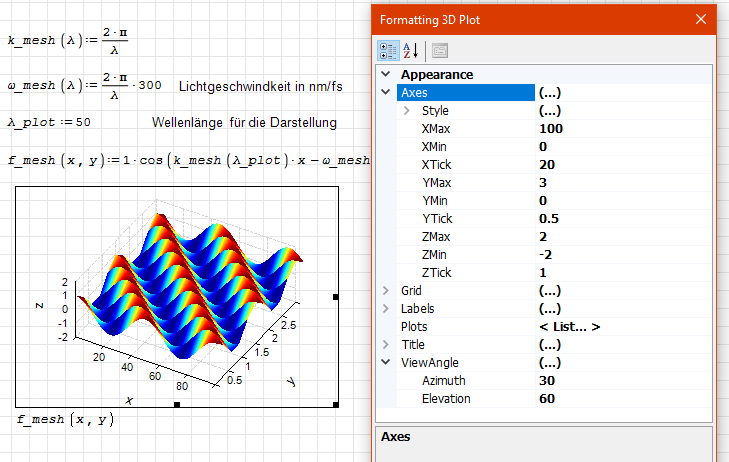

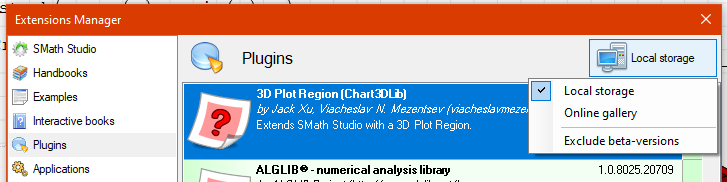

Hi. It seems that I'm using an old plugin version, which not save the plot configuration. I need to deselect "exclude beta versions" to see the update. This would be the configuration that was not saved





Best regards.
Alvaro.
