Temperature field

#1 Posted: 7/15/2023 3:32:54 AM

55 likes in 633 posts.

Group: User

I am trying to plot a temperature field in a three layer wall. There is no problem with the outer layers. But there is a problem in the middle layer - there should be a parabola, not a straight line. How to draw this parabola in the simplest way - with one formula. I know the hard way.

Stenka-3-eng.sm (60 KiB) downloaded 32 time(s).

#2 Posted: 7/15/2023 6:51:42 AM

Laurent Fournier

9 likes in 66 posts.

Group: User

There are so many splines and Bezier interpolations in this forum!
But I don't understand why the connecting line has to be a parabola, because inside one wall layer the parameters (conductance, permeability) are constant so you should have only straight lines. Unless you found a way to have a gradual mix of material!!!

#3 Posted: 7/15/2023 6:56:42 AM

Valery Ochkov

55 likes in 633 posts.

Group: User

Wrote
There are so many splines and Bezier interpolations in this forum!
But I don't understand why the connecting line has to be a parabola, because inside one wall layer the parameters (conductance, permeability) are constant so you should have only straight lines. Unless you found a way to have a gradual mix of material!!!

In the outer walls, the thermal conductivity does not depend on temperature, but in the middle wall it depends linearly!

#4 Posted: 7/15/2023 7:17:49 AM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

Don't know if that is the simplest solution.

Stenka-3-eng.sm (58 KiB) downloaded 21 time(s).

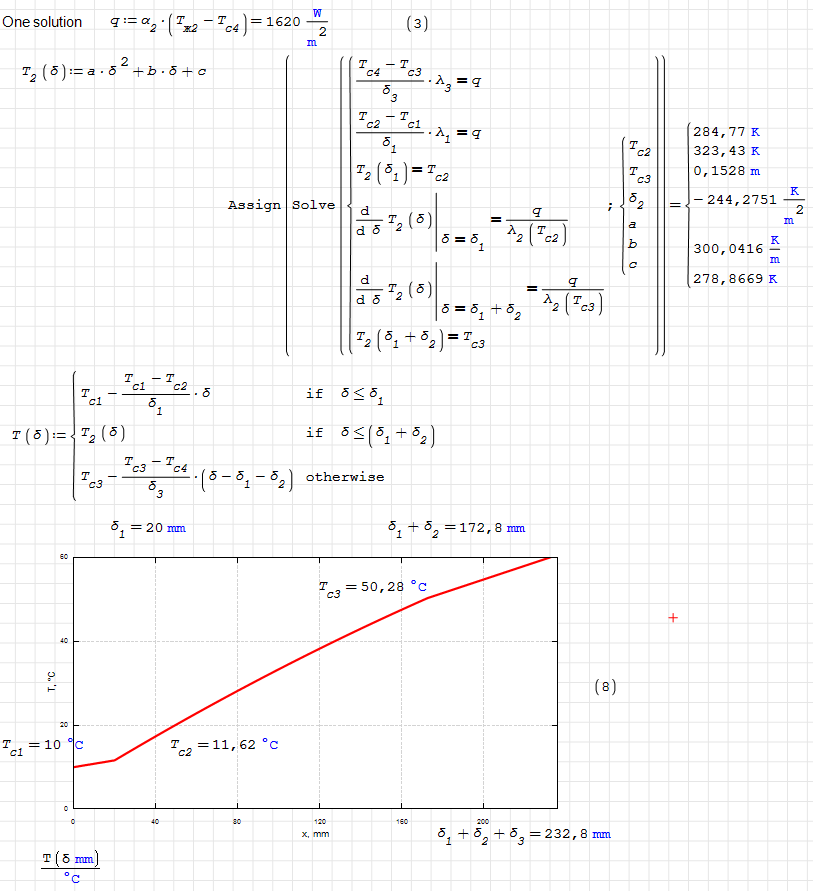

2023-07-15 12_15_54-SMath Solver - [Stenka-3-eng.sm_].png

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

1 users liked this post

Valery Ochkov 7/15/2023 7:25:00 AM

#5 Posted: 7/15/2023 7:26:46 AM

Valery Ochkov

55 likes in 633 posts.

Group: User

Wrote
Don't know if that is the simplest solution.

Stenka-3-eng.sm (58 KiB) downloaded 21 time(s).
Fine!

And if the dependence of thermal conductivity on temperature is more complex, obtained, for example, through interpolation of discrete data. I would like to see an integral in the solution!

#6 Posted: 7/15/2023 7:32:04 AM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

Version with mathcad block to collect the equations

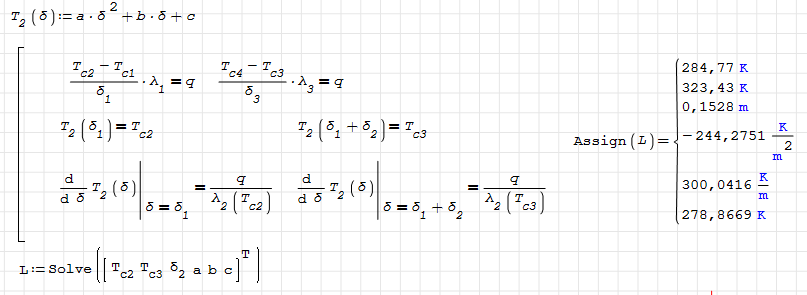

2023-07-15 12_30_20-SMath Solver - [Stenka-3-eng1.sm].png

Stenka-3-eng1.sm (59 KiB) downloaded 26 time(s).

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

1 users liked this post

Valery Ochkov 7/15/2023 7:40:00 AM

#7 Posted: 7/15/2023 9:13:21 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
I am trying to plot a temperature field in a three layer wall. There is no problem with the outer layers. But there is a problem in the middle layer - there should be a parabola, not a straight line

1. Three layers linear from min(x).
2. NON-linear from experimental
... project done Mathsoft Collaboratory.
Make the first & third segments linear.
The two documents sanity checked Smath Solver 30405.
Cheers ... Jean.

Maths min(x),max(x).sm (22 KiB) downloaded 26 time(s).
0Appendix_1 Thermal Insulation.sm (10 KiB) downloaded 18 time(s).

#8 Posted: 7/16/2023 5:40:21 AM

Valery Ochkov

55 likes in 633 posts.

Group: User

Wrote
I am trying to plot a temperature field in a three layer wall. There is no problem with the outer layers. But there is a problem in the middle layer - there should be a parabola, not a straight line. How to draw this parabola in the simplest way - with one formula. I know the hard way.

Stenka-3-eng.sm (60 KiB) downloaded 32 time(s).

One solution from Alan Stevens

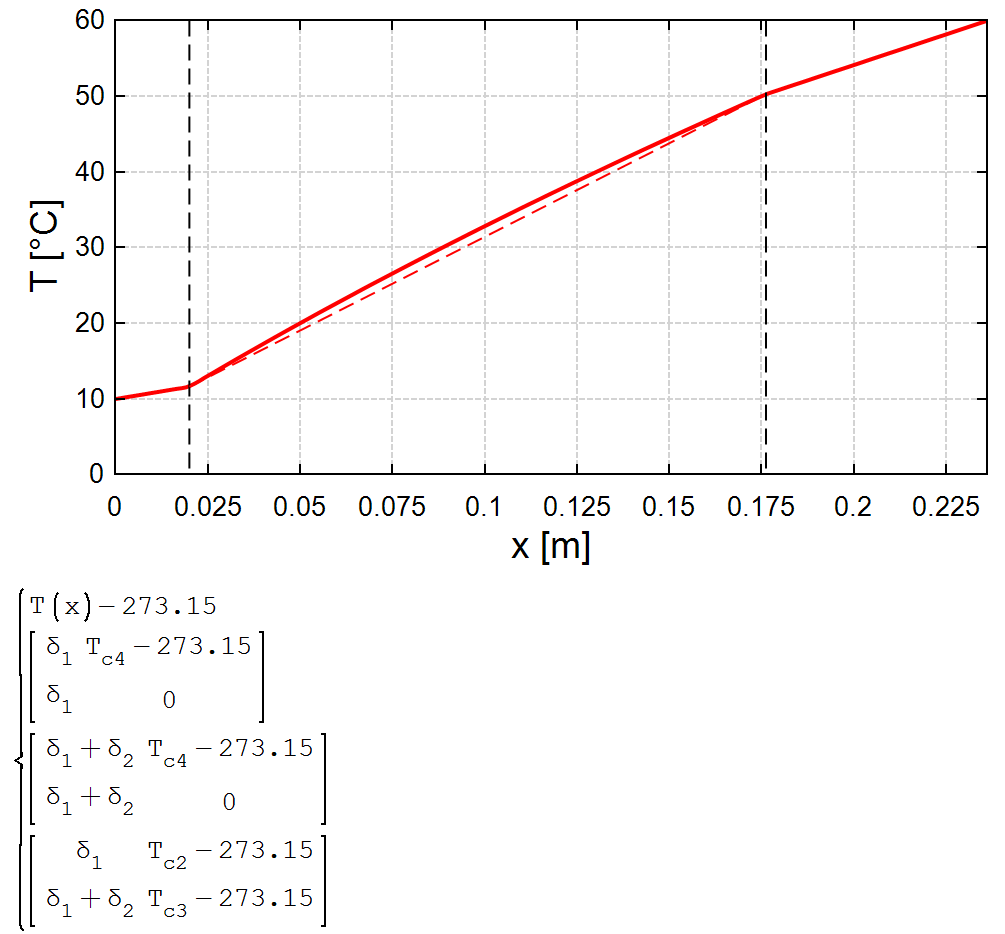

Stenka-3-Alan.sm (60 KiB) downloaded 25 time(s).

SMath Forum

Temperature field - not straight line but one parabola - Messages
