plotting circle does not work

plotting circle does not work - Help - Messages

#1 Posted: 3/13/2022 10:52:33 AM

Blackbambi

0 likes in 3 posts.

Group: User

Hello,

I am trying to plot mohr's circle by following tutorial. I have succeeded to draw circle on the tutorial but not mine.

Could you check my plot?

Thank you.MSS_Failure criterion.sm (8 KiB) downloaded 38 time(s).

#2 Posted: 3/13/2022 11:47:06 AM

Fridel Selitsky

Fridel Selitsky

520 likes in 451 posts.

Group: User

One way to build a graph is to lower the order of large numbers
Primer.sm (8 KiB) downloaded 30 time(s).

#3 Posted: 3/13/2022 12:32:01 PM

overlord

549 likes in 1332 posts.

Group: Moderator

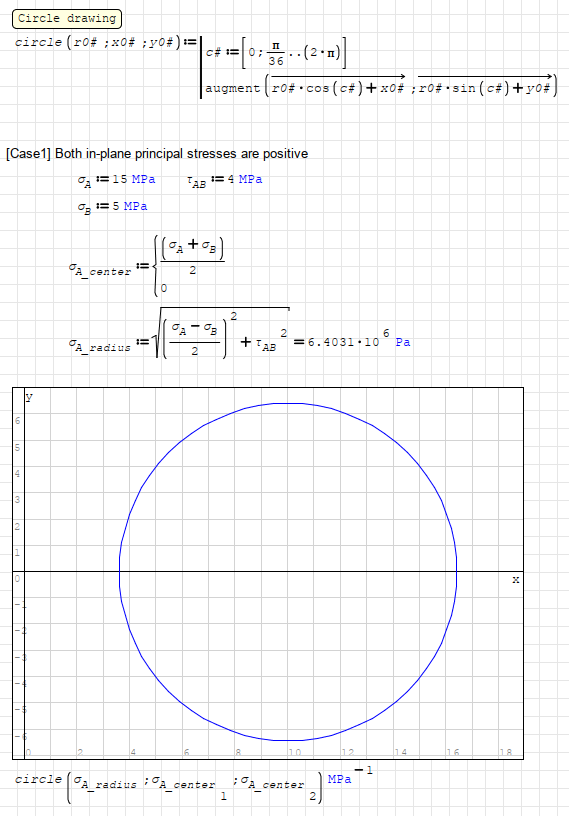

You can make a function to draw circles, for multiple usage on same sheet.
With respect to Ber7, dividing it to MPa will lower the numbers too.

Regards

MSS.sm (7 KiB) downloaded 37 time(s).

#4 Posted: 3/13/2022 10:37:25 PM

Blackbambi

0 likes in 3 posts.

Group: User

Thank you all. I appreciate your help

#5 Posted: 3/14/2022 1:06:17 PM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

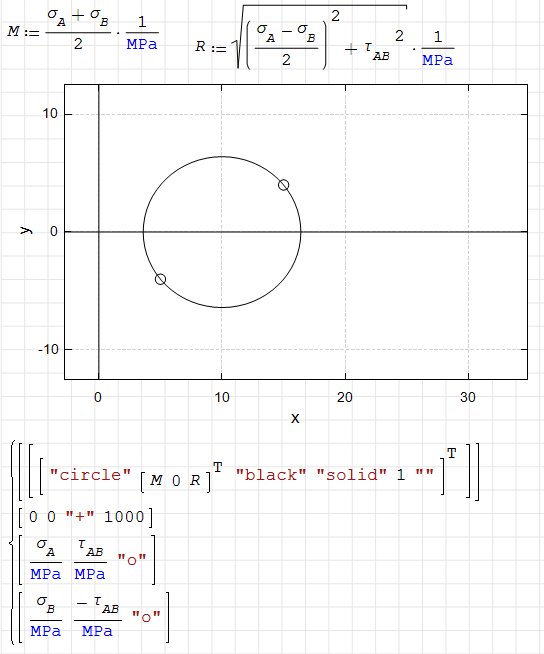

Here is a version with pre-defined geometric object in the XY plot plugin. See Handbuch section 8.3.4.

MSS_Kr.sm (13 KiB) downloaded 41 time(s).

2022-03-14 16_59_38-SMath Solver - [MSS.sm_].png

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

#6 Posted: 3/14/2022 2:11:02 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
I am trying to plot mohr's circle

Circle de Mohr.sm (47 KiB) downloaded 39 time(s).

#7 Posted: 3/15/2022 4:28:27 AM

Blackbambi

0 likes in 3 posts.

Group: User

Thank you for sharing your work

#8 Posted: 3/15/2022 9:42:51 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
I have succeeded to draw circle on the tutorial but not mine.

There are many ways to plot circles wrt applications.
My most used brew ... Cheers, Jean.

Page4 Circles_Ellipses.sm (9 KiB) downloaded 35 time(s).

#9 Posted: 3/15/2022 1:22:17 PM

overlord

549 likes in 1332 posts.

Group: Moderator

Wrote
Thank you all. I appreciate your help

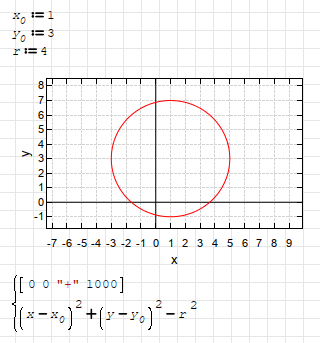

It is much easier to draw circles with X-Y Plot plugin.

circle_xy.sm (5 KiB) downloaded 50 time(s).

1 users liked this post

Вячеслав Мезенцев 3/15/2022 2:24:00 PM

#10 Posted: 3/20/2022 3:38:42 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
There are many ways to plot circles wrt applications.
My most used brew

I prefer incremental discretizer.

Circle [QUICK,oblate_prolate].sm (14 KiB) downloaded 34 time(s).
