plotting circle does not work - Help - Сообщения
Hello,

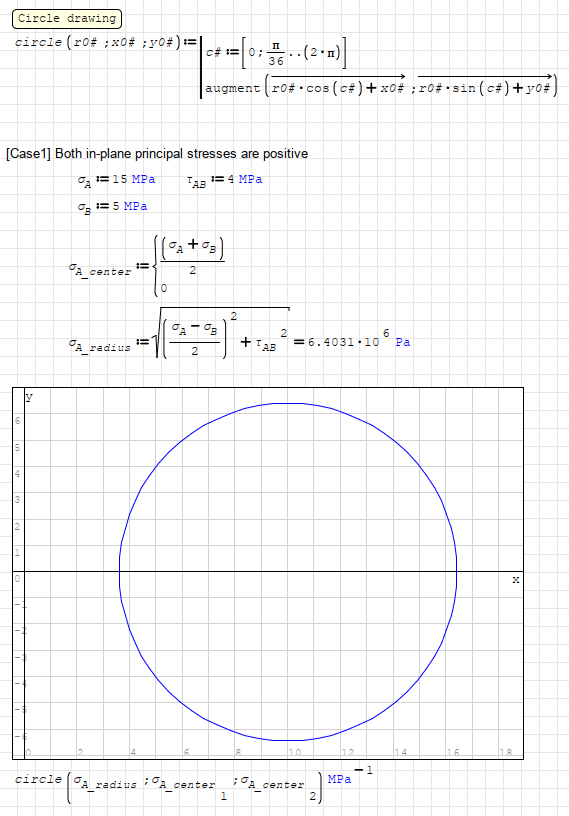

I am trying to plot mohr's circle by following tutorial. I have succeeded to draw circle on the tutorial but not mine.
Could you check my plot?
Thank you.MSS_Failure criterion.sm (8,47 КиБ) скачан 266 раз(а).
I am trying to plot mohr's circle by following tutorial. I have succeeded to draw circle on the tutorial but not mine.
Could you check my plot?
Thank you.MSS_Failure criterion.sm (8,47 КиБ) скачан 266 раз(а).
One way to build a graph is to lower the order of large numbers
Primer.sm (8,51 КиБ) скачан 233 раз(а).
Primer.sm (8,51 КиБ) скачан 233 раз(а).
Thank you all. I appreciate your help

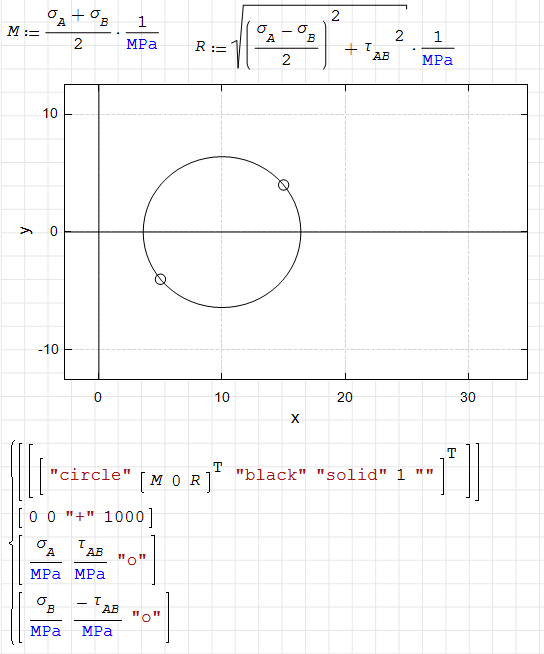

Here is a version with pre-defined geometric object in the XY plot plugin. See Handbuch section 8.3.4.
MSS_Kr.sm (13,86 КиБ) скачан 269 раз(а).
![2022-03-14 16_59_38-SMath Solver - [MSS.sm_].png](/ru-RU/files/Download/reaTmw/2022-03-14-16_59_38-SMath-Solver---[MSS.sm_].png)
MSS_Kr.sm (13,86 КиБ) скачан 269 раз(а).
![2022-03-14 16_59_38-SMath Solver - [MSS.sm_].png](/ru-RU/files/Download/reaTmw/2022-03-14-16_59_38-SMath-Solver---[MSS.sm_].png)
Martin KraskaPre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
Thank you for sharing your work
WroteI have succeeded to draw circle on the tutorial but not mine.
There are many ways to plot circles wrt applications.
My most used brew ... Cheers, Jean.
Page4 Circles_Ellipses.sm (9,36 КиБ) скачан 259 раз(а).
WroteThank you all. I appreciate your help

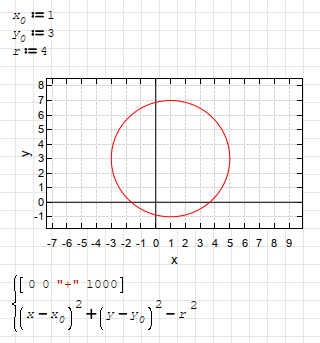

It is much easier to draw circles with X-Y Plot plugin.
circle_xy.sm (5,23 КиБ) скачан 271 раз(а).

1 пользователям понравился этот пост
Вячеслав Мезенцев 15.03.2022 14:24:00
WroteThere are many ways to plot circles wrt applications.
My most used brew
I prefer incremental discretizer.
Circle [QUICK,oblate_prolate].sm (14,23 КиБ) скачан 199 раз(а).
