Vectorize function

#1 Posted: 4/16/2020 1:52:31 AM

25 likes in 68 posts.

Group: User

Hello,

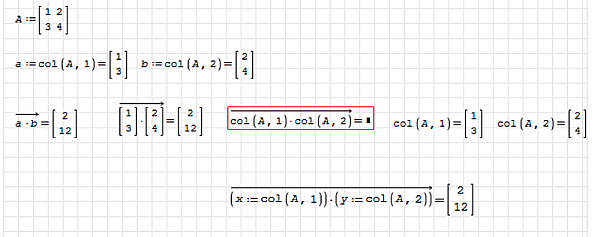

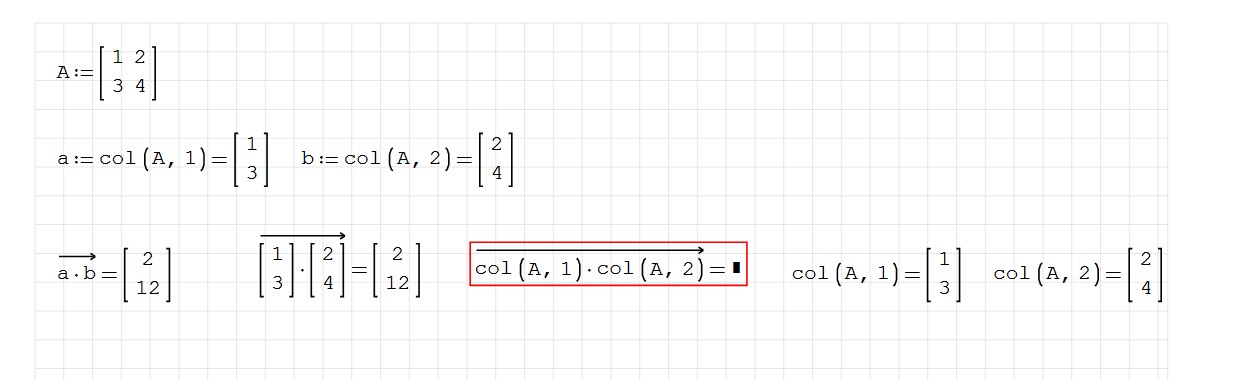

I am having this issue evaluating the vectorized multiplication:

I don't know what the problem could be. I started today switching definitely from Mathcad Prime 5 and started rewriting some codes.

Really happy with the decision I made, and also with the latest SMath studio version, I am running 0.99.7251 SMath.

Thank you in advance for your help,

Alvaro Gavilán

Vectorize.sm (6 KiB) downloaded 35 time(s).

#2 Posted: 4/16/2020 2:37:32 AM

Fridel Selitsky

520 likes in 451 posts.

Group: User

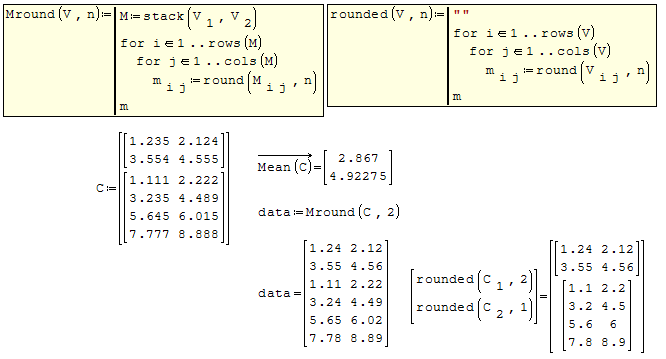

Matrices are multiplied like in a matcade

#3 Posted: 4/16/2020 11:23:24 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

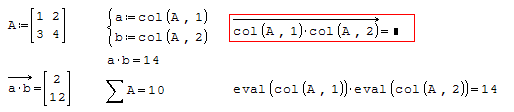

Just a matter of isolating the code
col(A,1), col(A,2) are not like function.

#4 Posted: 4/16/2020 3:52:44 PM

NDTM Amarasekera

130 likes in 352 posts.

Group: User

This way it works.

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#5 Posted: 4/16/2020 4:44:34 PM

NDTM Amarasekera

130 likes in 352 posts.

Group: User

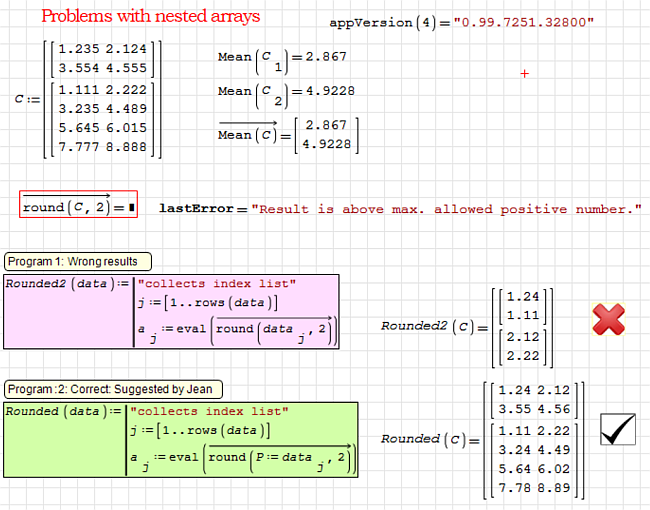

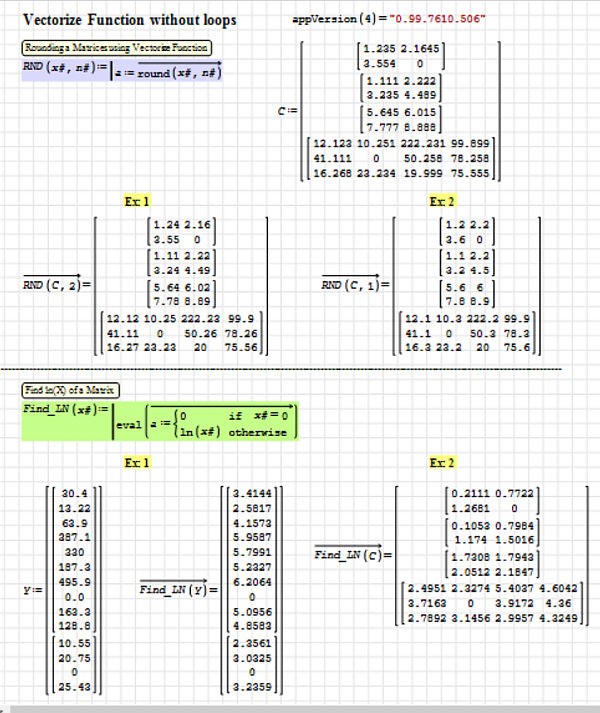

There are some more issues with the vectorize function

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#6 Posted: 4/16/2020 8:57:28 PM

Alvaro Gavilán

25 likes in 68 posts.

Group: User

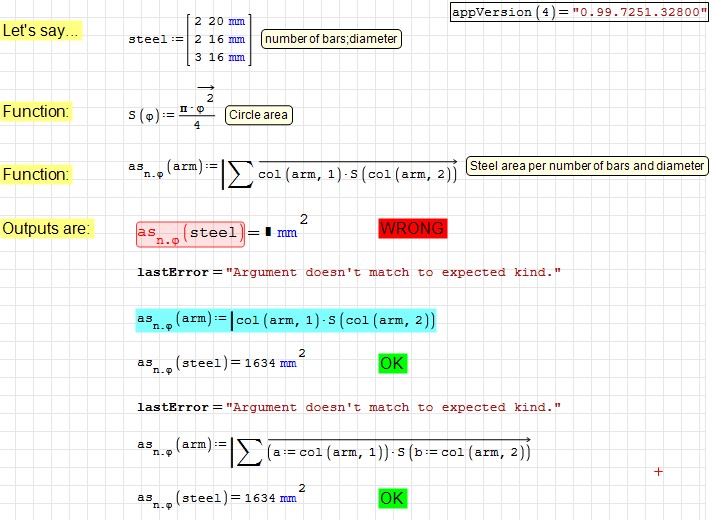

Thank you all for your quick responses! Problem solved with ndtma solution. Thank you

#7 Posted: 4/16/2020 10:55:20 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
There are some more issues with the vectorize function

Nice code SS 7251, not supported SS 6179.

#8 Posted: 4/17/2020 9:40:28 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

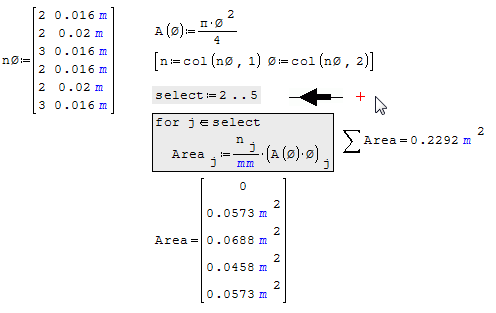

Make your Steel Bar project Engineer style, all at once.

#9 Posted: 4/17/2020 9:51:17 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Project SteelBar.sm (7 KiB) downloaded 42 time(s).

#10 Posted: 4/24/2020 10:45:36 PM

Alvaro Gavilán

25 likes in 68 posts.

Group: User

Thank you Jean for your suggestion.

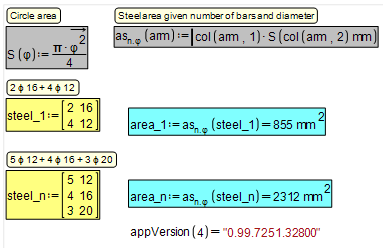

I would rather use a function, because in various parts of my worksheet (beam design), I need that function. It would be like this:
