Function from plot

Function from plot - Messages

#1 Posted: 6/6/2023 8:19:33 AM
Valery Ochkov

Valery Ochkov

55 likes in 634 posts.

Group: User

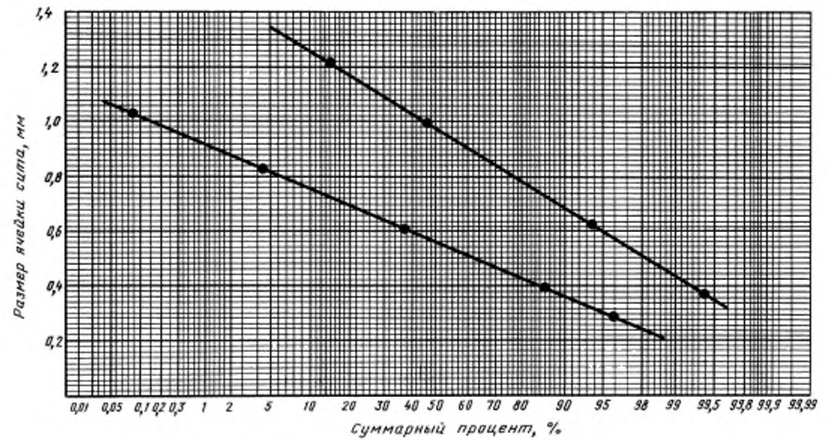

How can I get a function from this plot?
#2 Posted: 6/6/2023 8:59:59 AM
Jean Giraud

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote

How can I get a function from this plot ?


1. Probably from the expensive digitizer suggested by Richard [Mathsoft Collaboratory]
2. Piecewise from Tracer.
3. Try Mathsoft digitizer.
4. Smath difficult
At this point from the collected data set, fit a model function.
Cheers ... Jean.

1 users liked this post
Valery Ochkov 6/6/2023 10:24:00 AM
#3 Posted: 6/6/2023 10:05:20 AM
Brian Runagle

Brian Runagle

13 likes in 27 posts.

Group: User

Does this help?

Graphing.pdf (164.86 KiB) downloaded 389 time(s).

Brian
1 users liked this post
Valery Ochkov 6/6/2023 10:24:00 AM
#4 Posted: 6/6/2023 10:15:02 AM
⚜ Kenny Lemens, P.E. ᵂᴵ

⚜ Kenny Lemens, P.E. ᵂᴵ

80 likes in 175 posts.

Group: User

Greetings,

Wrote

How can I get a function from this plot? 🖼



That is a straight line on a semi-log graph; you can reference this handout: https://inside.mines.edu/~epoeter/_GW/LAB/EquationsOfStraightLinesOnDifferentTypesGraphPaper.pdf

Per this handout, your equation should be
y = b + m*log(x)
where:
  • m = difference in y over one log cycle of x
  • b = y value corresponding to x=1



May this be of Good Help;
⚜ Kenny Lemens, P.E. ᵂᴵ
"No matter where you go, there you are." -Buckaroo BanzaiHotkeys: https://en.smath.com/forum/resource.ashx?a=45771&b=2
1 users liked this post
Valery Ochkov 6/6/2023 10:24:00 AM
#5 Posted: 6/6/2023 12:44:34 PM
Alvaro Diaz Falconi

Alvaro Diaz Falconi

1,040 likes in 1,705 posts.

Group: User

Wrote

How can I get a function from this plot?



Hi. You can try this post Approximation of a functional curve in a digital image or this other one: Embedding images into a plot

Best regards.
Alvaro.
2 users liked this post
Вячеслав Мезенцев 6/6/2023 2:16:00 PM, Valery Ochkov 6/6/2023 1:45:00 PM
#6 Posted: 6/6/2023 2:19:52 PM
Jean Giraud

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote

How can I get a function from this plot ?


Hello Valery,
some Smath digitizing utilities
Cheers, Jean.

Digitize Tracer 15.sm (28.83 KiB) downloaded 249 time(s).
Digitize OVNI Copy.sm (69.15 KiB) downloaded 260 time(s).
Digitize Contour Isocurve Himmelblau Copy.sm (106.67 KiB) downloaded 247 time(s).
Digitize Curve.sm (295.86 KiB) downloaded 248 time(s).
Digitize Contour.sm (829.05 KiB) downloaded 252 time(s).
Digitize Clean_Strip_Smooth.sm (1.76 MiB) downloaded 250 time(s).

#7 Posted: 6/6/2023 3:29:30 PM
Jean Giraud

Jean Giraud

983 likes in 6,866 posts.

Group: User

... this Himmelblau has resident Gray matrix.

Digitize Contour Isocurve Himmelblau Copy.sm (107.19 KiB) downloaded 252 time(s).
1 users liked this post
Valery Ochkov 6/7/2023 1:02:00 AM
#8 Posted: 6/6/2023 5:11:16 PM
Alvaro Diaz Falconi

Alvaro Diaz Falconi

1,040 likes in 1,705 posts.

Group: User

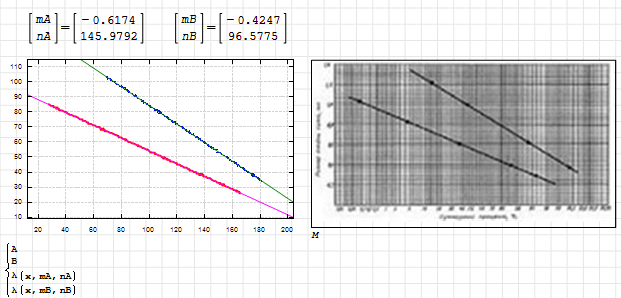

Hi. Hope this helps.


Modeling a functional curve in a digital image.pdf (860.39 KiB) downloaded 269 time(s).
Modeling a functional curve in a digital image.sm (1 MiB) downloaded 276 time(s).

Best regards.
Alvaro.
3 users liked this post
Valery Ochkov 6/7/2023 1:02:00 AM, sergio 6/7/2023 6:34:00 AM, darlbeck 6/7/2023 2:59:00 PM
