I would like to plot this function

#1 Posted: 10/13/2019 5:18:05 PM

0 likes in 3 posts.

Group: User

I have attached aReflection.sm (50 KiB) downloaded 31 time(s). .sm file containing a computation I would very much like to plot.
The geometry is shown in the picture below.
Can someone help ?
Thanks,

Reflection.sm (50 KiB) downloaded 31 time(s).

#2 Posted: 10/13/2019 6:23:01 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Oh ! ... your proposal is not much productive, is it ?
The picture is strictly discontinuous.

Reflection.sm (54 KiB) downloaded 27 time(s).

#3 Posted: 10/13/2019 6:28:17 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

...

#4 Posted: 10/13/2019 6:33:49 PM

Harry Mangurian

0 likes in 3 posts.

Group: User

I don't think L is discontinuous for ddegrees in the range 0 to 60.

What am I missing here ?

L(ddegrees) should vary smoothly from L(0) to L(60)

#5 Posted: 10/13/2019 11:00:11 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
What am I missing here ?

You are missing to plot the literal demo diagram,
here is as per your inputs [a,b,s,t].
More is missing from incomplete project description.

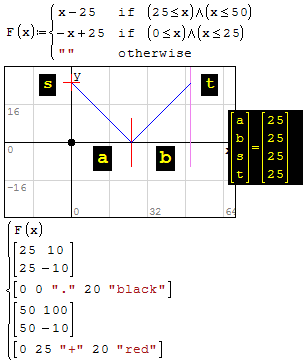

Reflection [abst].sm (62 KiB) downloaded 27 time(s).

#6 Posted: 10/14/2019 11:27:00 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
You are missing to plot the literal demo diagram,
here is as per your inputs [a,b,s,t].
More is missing from incomplete project description.

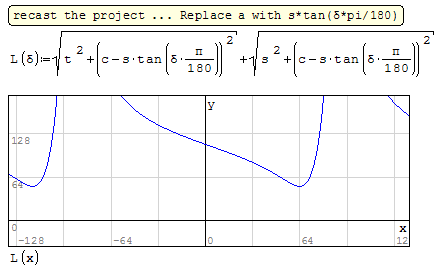

Refreshed from your literal inputs.
You may have to revisit your College Physics book.
Cheers ... Don't hesitate.

Reflection [abst].sm (128 KiB) downloaded 29 time(s).

#7 Posted: 10/14/2019 11:46:04 AM

Arie

93 likes in 285 posts.

Group: User

Wrote
I don't think L is discontinuous for ddegrees in the range 0 to 60.

What am I missing here ?

L(ddegrees) should vary smoothly from L(0) to L(60)

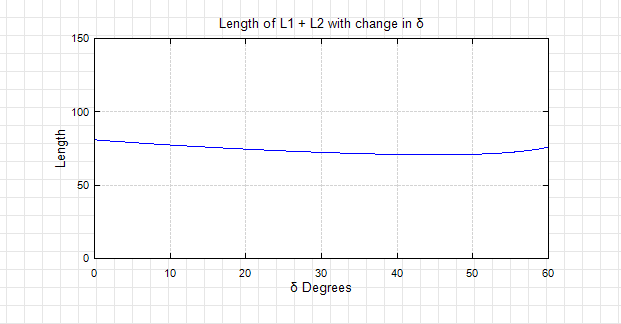

Yes the length L is continuous with respect to ddegrees. I think Jean misunderstands the question. See attached. (A little sloppy but it works)

Edit: Updated graph to add labels
Edit2: Had an error in definition of L. Fixed.

Reflection_alyles.sm (177 KiB) downloaded 28 time(s).

Feel free to join the SMath Studio Users Discord Channel: https://discord.gg/PayZpJW

#8 Posted: 10/14/2019 1:45:09 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
I think Jean misunderstands the question.

Quite right: misunderstood the travelling distance vs °incidence.
Thanks, interesting project. We need more real projects.

Reflection [abst, alyles].sm (186 KiB) downloaded 27 time(s).

#9 Posted: 10/14/2019 3:31:04 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

... You can have it to a good degree of accuracy
as a continuous function, though a bit strange.

Reflection [abst, alyles].sm (252 KiB) downloaded 25 time(s).

#10 Posted: 10/14/2019 4:00:54 PM

Arie

93 likes in 285 posts.

Group: User

Wrote
... You can have it to a good degree of accuracy
as a continuous function, though a bit strange.

FYI Jean you're using one of my earlier files where I had a copy paste error in the derivation of L(d), the second root term should only have s*tan(d*pi/180). You can get rid of the "c-"

Feel free to join the SMath Studio Users Discord Channel: https://discord.gg/PayZpJW

#11 Posted: 10/14/2019 5:47:14 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
FYI Jean you're using one of my earlier files where I had a copy paste error in the derivation of L(d), the second root term should only have s*tan(d*pi/180). You can get rid of the "c-"

Thanks ... updated.
The model fit is brute force, limited.
From my 100's models, not one immediate.
If interested: let me know, not sure if possible.

Reflection [abst, alyles].sm (209 KiB) downloaded 25 time(s).

#12 Posted: 10/14/2019 8:55:19 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

I understand the idea to tabulate as demanded,
in fact useless as you have the continuous function.
Purely Edu. LinfitCheby added.
No problem to export as a function.
Thanks alyles for completing the project.

Reflection [abst, alyles].sm (232 KiB) downloaded 35 time(s).
