#1 Posted: 12/3/2019 10:12:53 AM

Jean Giraud

983 likes in 6,866 posts.

Group: User

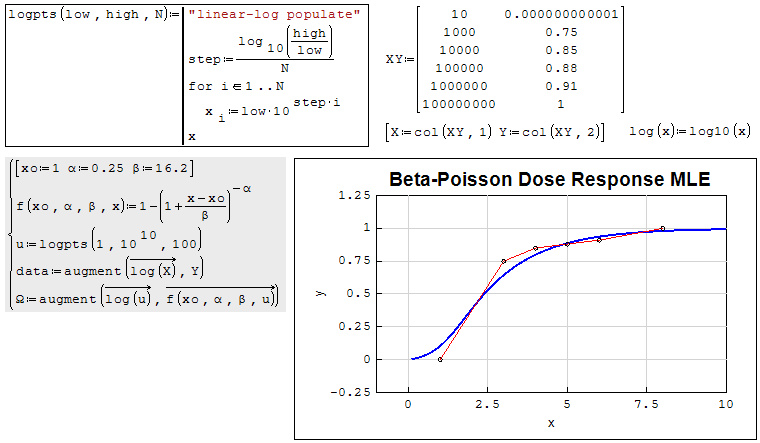

... else than Bode.

Utilities logpts [Beta_Poisson].sm (9.4 KiB) downloaded 1041 time(s).

#2 Posted: 12/3/2019 12:21:29 PM

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
... else than Bode.

... more USER

Utilities logpts [Beta_Poisson].sm (13.52 KiB) downloaded 1032 time(s).

#3 Posted: 12/3/2019 3:02:11 PM

Martin Kraska

1,361 likes in 2,275 posts.

Group: Moderator

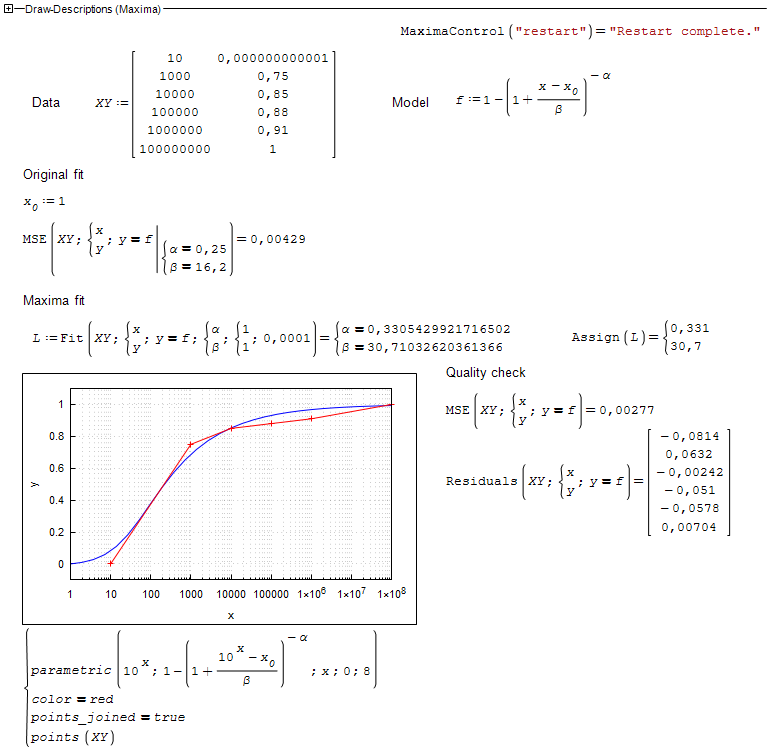

Here is a Maxima version, including the fit procedure. Note the use of parametric() in order to get evenly distributed points in the log plot.

logplot.sm (145.83 KiB) downloaded 1312 time(s).

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9

2 users liked this post

frapuano 12/3/2019 4:52:00 PM, NDTM Amarasekera 12/4/2019 1:06:00 AM

#4 Posted: 12/3/2019 10:19:59 PM

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
Here is a Maxima version, including the fit procedure. Note the use of parametric() in order to get evenly distributed points in the log plot.

Thanks Martin.
1. added the source experiment notes
2. added Weibull MLE example.
Jean

Utilities logpts [Beta_Poisson].sm (353.86 KiB) downloaded 1162 time(s).
