#1 Posted: 1/21/2022 6:45:25 AM
Beyaz

Beyaz

0 likes in 19 posts.

Group: User

Hi,

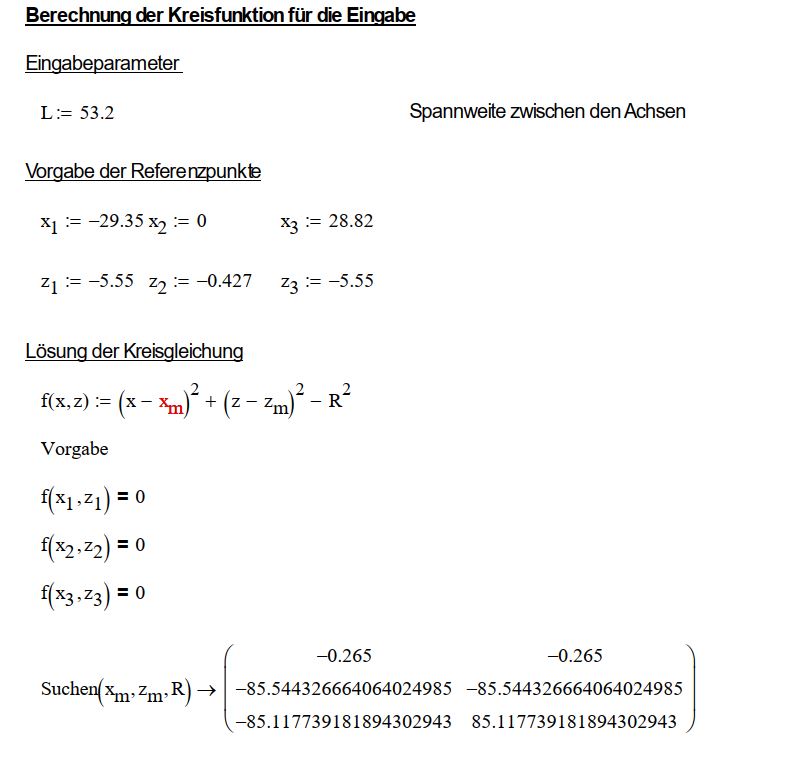

Im trying convert this mathcad solver to smath but it doesnt work.
Radius_318a.sm (9 KiB) downloaded 25 time(s).

#2 Posted: 1/21/2022 11:44:53 AM
sergio

sergio

115 likes in 329 posts.

Group: User

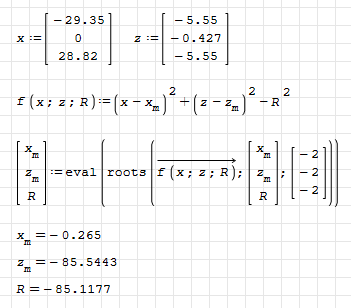

It is a non-linear system. With the internal "Roots" solver it is appropriate to use initial values ​​sufficiently close to the result.

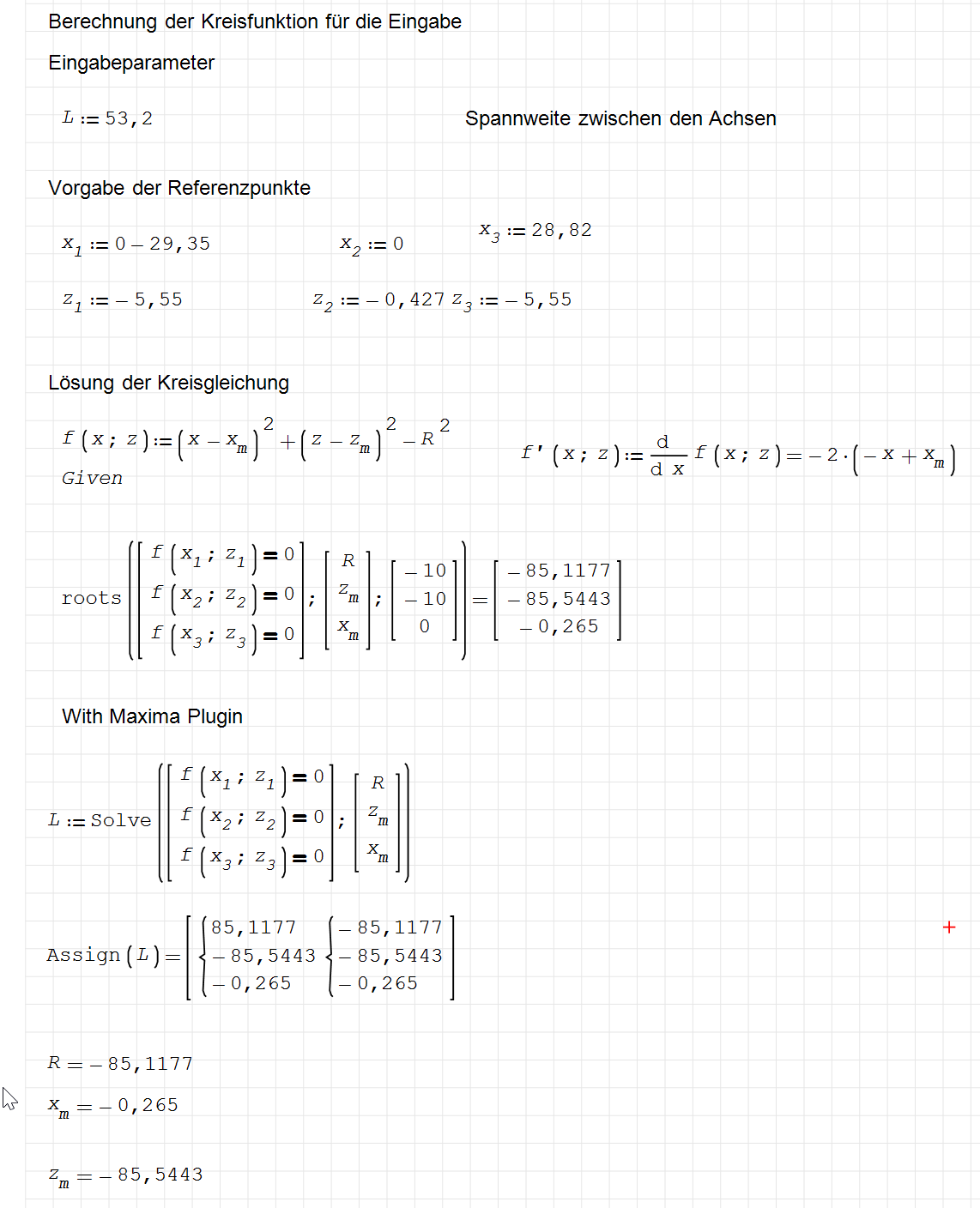

You can use some of the smath plugins that are more robust. For example, with "Solve" of the "Maxima plugin you get the result.

Show Spoiler


Radius_318a_ser.sm (337 KiB) downloaded 48 time(s).
sergio
#3 Posted: 1/21/2022 5:30:18 PM
overlord

overlord

551 likes in 1332 posts.

Group: Moderator

With an addition to sergio's solution;
You can use vectors while solving.

Regards

#4 Posted: 1/21/2022 8:59:15 PM
overlord

overlord

551 likes in 1332 posts.

Group: Moderator

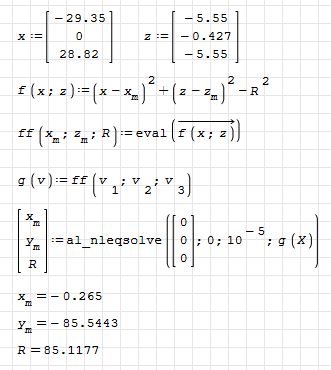

Solution with another solver.

Regards

al_nleqsolve.sm (6 KiB) downloaded 45 time(s).

#5 Posted: 1/26/2022 3:52:33 AM
Beyaz

Beyaz

0 likes in 19 posts.

Group: User

wow, thanks a lot guys.

//Edit: the thanks button is not working. I cant give you thanks
