Thanks Martin and Jean. The slider is pretty neat.

Hello, thanks for this magnificent plugin it is very useful but all its functions are not documented.
It would be great if someone could upload the documentation of all the features of the plugin because discovering them one by one is a bit cumbersome.
Thank you very much in advance

Hello, please someone knows how to rotate text in modeller region?

Wrote

Hello, please someone knows how to rotate text in modeller region?

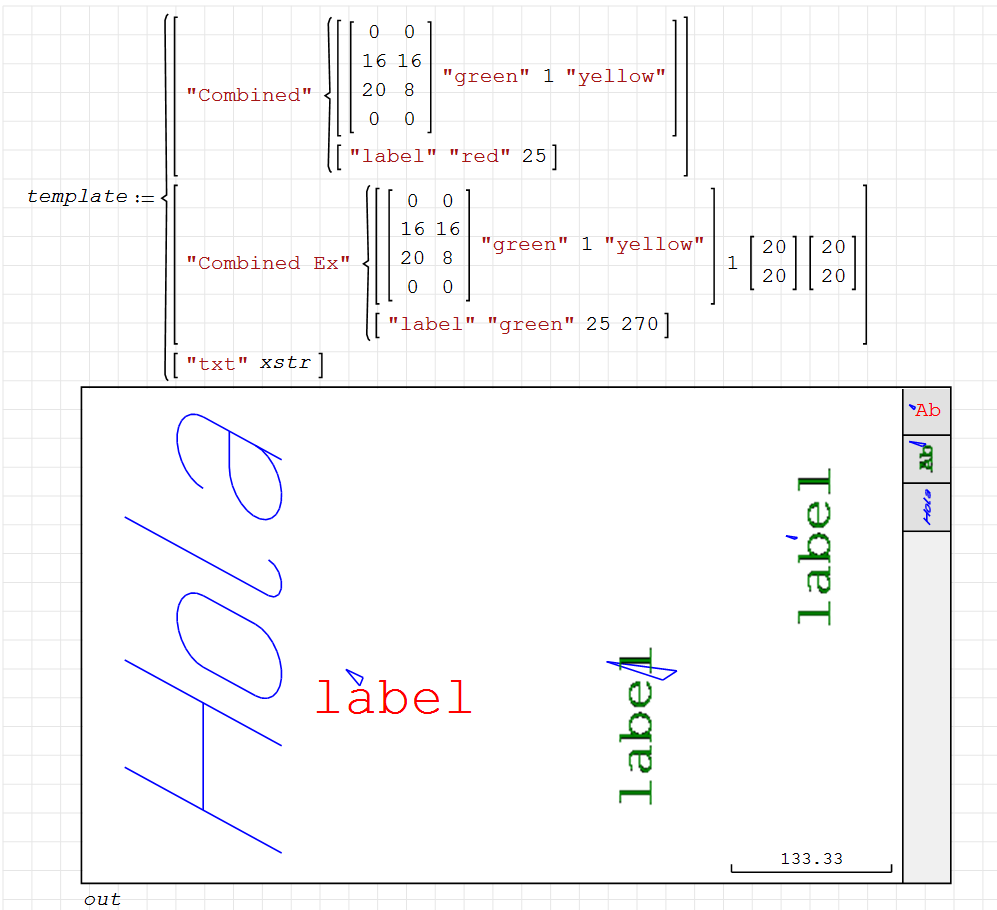

Hi. This is a workaround, based on https://en.smath.com/forum/yaf_postst20332_Drawing-Text.aspx



DrawingTextModeller.pdf (104 KiB) downloaded 52 time(s).
DrawingTextModeller.sm (278 KiB) downloaded 79 time(s).

Best regards.
Alvaro.

Wrote

Wrote

Hello, please someone knows how to rotate text in modeller region?

Hi. This is a workaround, based on https://en.smath.com/forum/yaf_postst20332_Drawing-Text.aspx



DrawingTextModeller.pdf (104 KiB) downloaded 52 time(s).
DrawingTextModeller.sm (278 KiB) downloaded 79 time(s).

Best regards.
Alvaro.

Thanks Alvaro, your implementation is very interesting, but I would like to know how to rotate the normal text (green label) without distorting it.

Wrote

Hello, please someone knows how to rotate text in modeller region?

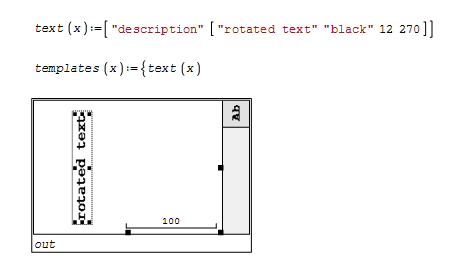

Use 270 as 4th argument to rotate 90° counter-clockwise

Wrote

Use 270 as 4th argument to rotate 90° counter-clockwise

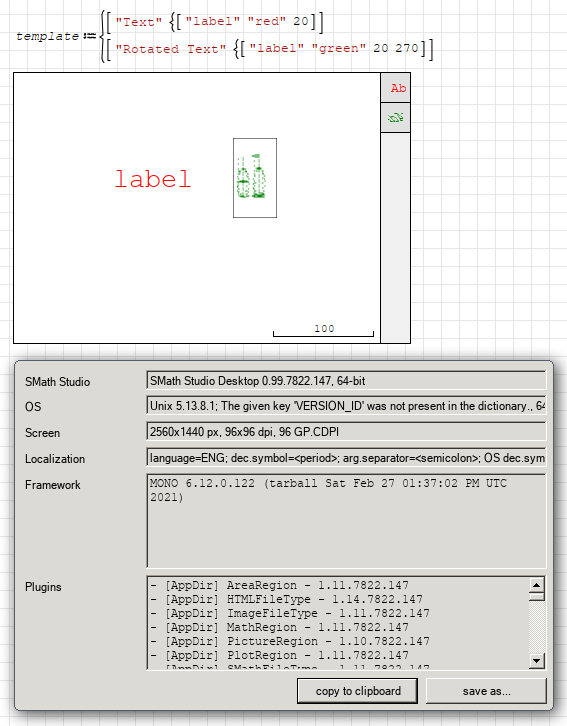

Text Rotation in modeller region with 270 as fourth argument is not working under Linux.
I had encountered this several months ago, maybe years. Forgot to report it.

Regards

Wrote

Text Rotatior in modeller region with 270 as fourth argument is not working under Linux.
I had encountered this several months ago, maybe years. Forgot to report it.

Regards

I'll look into it, thank you.

Thanks Davide for rotated text in Modeler.

modeller Rotate Text.sm (177 KiB) downloaded 58 time(s).

Wrote

I'll look into it, thank you.

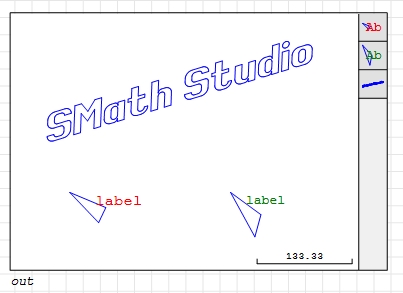

This is how it is rendered with rotated text.
