3D Plot function help request

#1 Posted: 11/29/2023 7:02:54 AM

1 likes in 18 posts.

Group: User

Hi
I've got a problem with a 3D plot function.
The function is very simple but i'm not able to find the correct syntax for plot it.
Someone can kindly help me with some advising?

Thancks in advance, i attacched below the Smath reference file where i had higlighted with an arrow the function.

File not found.File not found.

#2 Posted: 11/29/2023 8:26:12 AM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

For instructions on Maxima plots see https://doi.org/10.25933/opus4-2949
Note that the dummy variables need to be undefined in the sheet.

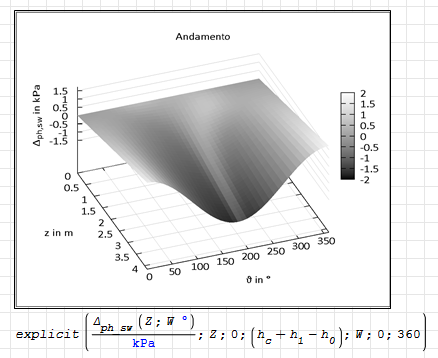

2023-11-29 01_22_29-SMath Solver - [Azioni_Sismiche_Silo_D1101.sm_].png

Azioni_Sismiche_Silo_D1101_Kr.sm (1 MiB) downloaded 37 time(s).

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

#3 Posted: 11/29/2023 7:16:09 PM

Alessandro

1 likes in 18 posts.

Group: User

Thancks so much for your answer!!!!
I'm very gratefull!

#4 Posted: 11/30/2023 1:19:16 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Very easy to get the two circles ... one being shifted.
Tip about X_Y plot ... as soon as you open, give a title.
Next manipulation, click on title.
That technique will save from freaking X,Y ranges.
Jean.

#5 Posted: 11/30/2023 9:48:52 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
I've got a problem with a 3D plot function.

The document from Martin does not work for me.
At this point of the project, if you can attach the matrix,
I may try to render the gray image in RGB.
I have the RGB mapping codes associated with the vectorise code.
Not so sure ... your matrix is huge 360 cols !
Jean
