Spline Contour

#1 Posted: 9/12/2016 2:36:46 PM

983 likes in 6866 posts.

Group: User

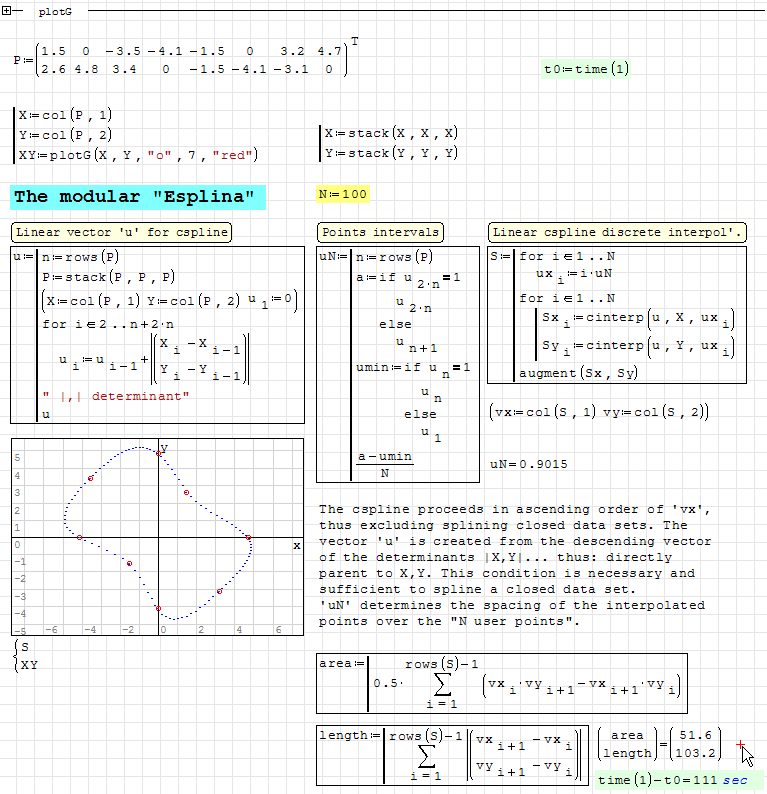

This one works well for the given data set. Mesh finer at will and if needed,
bilinear ... not much use for bilinear, whereas "spline" is just something.

Jean

Spline Esplina [AI2000].sm (23 KiB) downloaded 47 time(s).

#2 Posted: 9/12/2016 7:08:01 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

... a faster version: one twin col extractor removed.
By same token, I wonder why the col extractor col(,,) is so slow ?

Jean

Spline Esplina [AI2000].sm (23 KiB) downloaded 42 time(s).

#3 Posted: 9/12/2016 9:59:52 PM

Fridel Selitsky

520 likes in 451 posts.

Group: User

"By same token, I wonder why the col extractor col(,,) is so slow ?"

You can speed up calculation if o are using "eval":

Spline Esplina [AI2000] (1).sm (25 KiB) downloaded 42 time(s).

#4 Posted: 9/12/2016 11:07:59 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Thanks Ber7 for "speedy Gonzalez". In fact, the "uN"
conditional code is redundant in this dataset.
Here is the latest version, even faster.

Jean

Spline Esplina [AI2000].sm (23 KiB) downloaded 38 time(s).

#5 Posted: 9/13/2016 3:08:10 AM

Fridel Selitsky

520 likes in 451 posts.

Group: User

Jean,calculation speed will be doubled, if we use the advice of Андрей
http://en.smath.info/forum/resource.ashx?a=14504&b=2

Spline Esplina [AI2000] 2.sm (20 KiB) downloaded 46 time(s).

1 users liked this post

Davide Carpi 9/13/2016 11:45:00 AM

#6 Posted: 9/13/2016 7:58:11 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Thanks Ber7,
... now she is a bomb [2 sec] !

Spline Esplina [AI2000].sm (22 KiB) downloaded 50 time(s).

2 users liked this post

sergio 9/13/2016 8:17:00 AM, NDTM Amarasekera 9/13/2016 11:14:00 AM

#7 Posted: 9/13/2016 11:23:31 AM

Andrey Ivashov

2269 likes in 3729 posts.

Group: Super Administrator

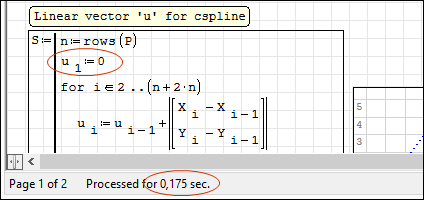

You forgot to specify first element of u vector.

By doing so you can speed up calculation even more:

Regards.

2 users liked this post

Davide Carpi 9/13/2016 11:45:00 AM, NDTM Amarasekera 9/13/2016 12:01:00 PM

#8 Posted: 9/13/2016 12:08:37 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
You forgot to specify first element of u vector.

By doing so you can speed up calculation even more:

Thanks Andrey, damned me !

While you are there, can you speed up "DeBoor" ?

Jean

Spline De Boor [Esplina].sm (47 KiB) downloaded 40 time(s).

#9 Posted: 9/13/2016 12:47:49 PM

Andrey Ivashov

2269 likes in 3729 posts.

Group: Super Administrator

Done

Spline De Boor [Esplina]_mod.sm (47 KiB) downloaded 52 time(s).

Timings:

6.1 seconds by 0.97.5890
2.3 seconds by 0.98.6096

Regards.

#10 Posted: 9/13/2016 3:32:56 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Thanks Andrey,

... for the local definition of Sx(v), Sy(v).
Must be consistant with all upward local definitions.

Jean

#11 Posted: 9/13/2016 3:53:06 PM

Andrey Ivashov

2269 likes in 3729 posts.

Group: Super Administrator

You're welcome.

The main change was this:

Actually I'm not sure why calculation of u is so complex... looks like it is just a copy of m.

#12 Posted: 9/14/2016 12:51:51 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Quite right Andrey: 'u' is 'm', which 'm' is redundant.

I must have constructed N_(v,j) aroud 'u' from some source,
thus easier to check the coding. The attached work sheet
has been refactored with auxilliary explanations.
Can be used as model for DeBoor, pretty easy to adapt to
any project. Spline order is linear interpolation around
the polygon. Spline order 2 is "convex hull" per say.
They are about the only two types splines useful for
technical works [?]

Jean

Spline De Boor [Loop].sm (41 KiB) downloaded 50 time(s).
