CoolProp Wrapper

#61 Posted: 4/21/2023 3:17:35 PM

1,532 likes in 1,845 posts.

Group: Moderator

Wrote
How can I get properties of mixtures e.g
CoolProp_Props("Dmass","T",273+100,"P",101.3*10^3,"Helium[0.5]&Xenon[0.5]"
ref: http://www.coolprop.org/fluid_properties/Mixtures.html

This can't be done directly in the current version of the plugin. It is not clear how to call the apply_simple_mixing_rule() function from the library, it can't be imported as it is not in the export table.

maple-python-coolprop.sm (6.61 KiB) downloaded 1246 time(s).
maple-python-coolprop.pdf (19.18 KiB) downloaded 732 time(s).

maple-python-coolprop-2.sm (5.08 KiB) downloaded 1212 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

#62 Posted: 4/22/2023 5:00:09 AM

Alvaro

1,080 likes in 1,752 posts.

Group: User

Wrote
How can I get properties of mixtures e.g
CoolProp_Props("Dmass","T",273+100,"P",101.3*10^3,"Helium[0.5]&Xenon[0.5]"
ref: http://www.coolprop.org/fluid_properties/Mixtures.html

Hi. Notice that Refprop from NIST can't handle He/Xe mixing either. At least version 9.

On the other hand, maple doesn't seem to implement the procedure that Viacheslav points out either, as can be seen in the online documentation for the latest version.

However, very good values can be obtained using Coolprop in SMath and some basic stoichiometry.

Mixing gases.sm (19.17 KiB) downloaded 1162 time(s).
Mixing gases.pdf (67.22 KiB) downloaded 708 time(s).

Best regards.
Alvaro.

#63 Posted: 4/22/2023 5:34:44 AM

Вячеслав Мезенцев

1,532 likes in 1,845 posts.

Group: Moderator

More simple

maple-python-coolprop-3.sm (10.97 KiB) downloaded 1187 time(s).
maple-python-coolprop-3.1.sm (10.82 KiB) downloaded 1198 time(s).
maple-python-coolprop-3.2.sm (10.89 KiB) downloaded 1144 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

Alvaro 4/22/2023 9:32:00 AM

#64 Posted: 4/27/2023 3:09:34 AM

Вячеслав Мезенцев

1,532 likes in 1,845 posts.

Group: Moderator

Now you can write like this

maple-python-coolprop-3.3.sm (9.51 KiB) downloaded 1216 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

#65 Posted: 4/28/2023 7:39:13 AM

Вячеслав Мезенцев

1,532 likes in 1,845 posts.

Group: Moderator

Or like this

maple-python-coolprop-3.4.sm (10.66 KiB) downloaded 1209 time(s).
maple-python-coolprop-3.5.sm (10.3 KiB) downloaded 1184 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

#66 Posted: 4/29/2023 3:33:10 PM

Вячеслав Мезенцев

1,532 likes in 1,845 posts.

Group: Moderator

maple-python-coolprop-3.6.sm (9.98 KiB) downloaded 1201 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

#67 Posted: 4/29/2023 10:07:03 PM

churichuro

28 likes in 79 posts.

Group: User

is fantastic!
this no work the first time but after I play with the another examples this work, very well
thank you!

#68 Posted: 5/4/2023 10:29:17 AM

Вячеслав Мезенцев

1,532 likes in 1,845 posts.

Group: Moderator

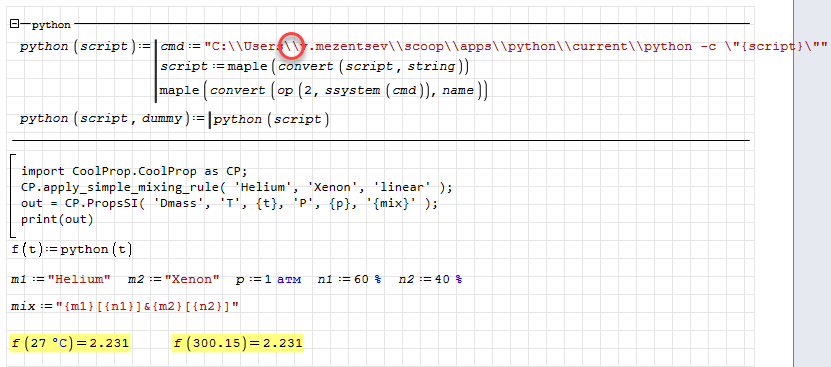

Without "pyfile" (inline multiline script). The script should be without comments.

Space padding is necessary here so that inside the script, when a large string is divided into parts, the line break character itself is not divided ( '\n' -> '\ n' ).

maple-python-coolprop-3.7.sm (9.9 KiB) downloaded 1198 time(s).
maple-python-coolprop-3.8.sm (6.84 KiB) downloaded 1201 time(s).
maple-python-coolprop-3.9.sm (8 KiB) downloaded 1173 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

#69 Posted: 7/30/2023 8:12:32 AM

usamakhan

3 likes in 79 posts.

Group: User

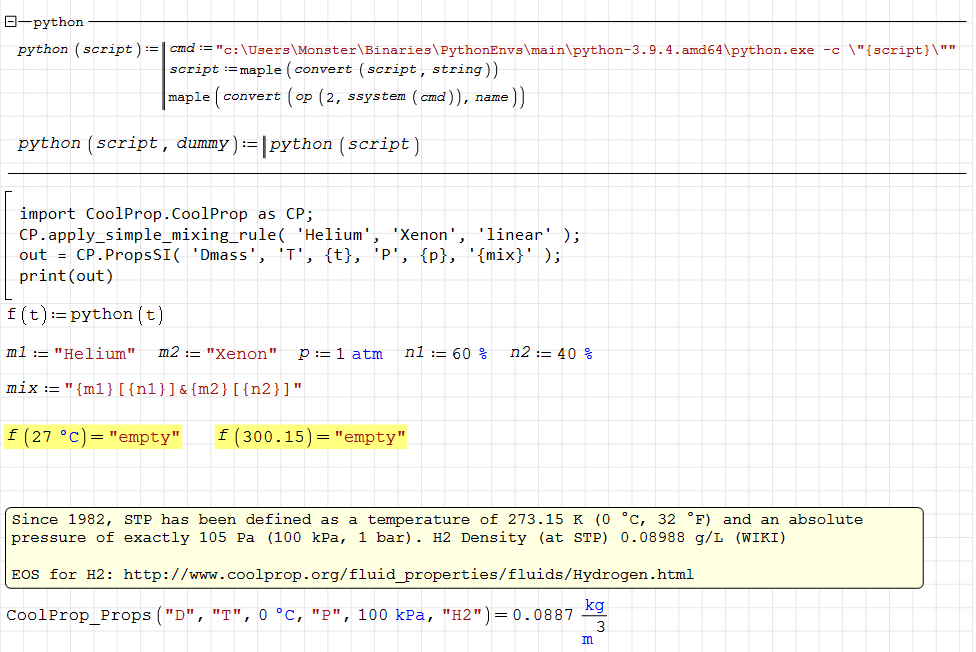

Uni, can you please help me how to add python into SMATH, I have python already in system [WinPython 3.9] How I link it up with Smath?

I have working CoolProp

#70 Posted: 7/30/2023 1:33:42 PM

usamakhan

3 likes in 79 posts.

Group: User

Jean, can you help me how do integrate python in my Smath? I event tried environmental variables under Win10 but didn't work

#71 Posted: 7/31/2023 3:45:32 AM

Вячеслав Мезенцев

1,532 likes in 1,845 posts.

Group: Moderator

You should use a double slash for the full path.

Wrote
I event tried environmental variables under Win10 but didn't work

In this case, you need to check whether python is available from the command line. If not, it means that the paths are specified incorrectly.

Russia ☭ forever, Viacheslav N. Mezentsev

#72 Posted: 8/2/2023 7:17:11 PM

usamakhan

3 likes in 79 posts.

Group: User

uni, thanks a lot
Can you tell me what is this block you used after python sub-section [i.e with the square bracket & holding script conetnts]

Additionally Razonar sample here is also very intuitive while calculating mixing values
https://en.smath.com/forum/yaf_postsm82120_Understanding-Redlich-Kwong-equation-of-state.aspx#post82120

#73 Posted: 8/3/2023 3:06:16 AM

Вячеслав Мезенцев

1,532 likes in 1,845 posts.

Group: Moderator

Wrote
uni, thanks a lot
Can you tell me what is this block you used after python sub-section [i.e with the square bracket & holding script conetnts]

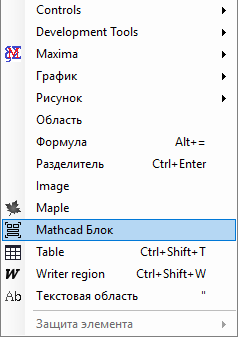

Mathcad Block from the Mathcad Toolbox plugin and just Text inside it for the script.

Russia ☭ forever, Viacheslav N. Mezentsev

#74 Posted: 8/4/2023 3:23:07 PM

usamakhan

3 likes in 79 posts.

Group: User

uni, so it means the text inside the block is not automatically generated. Can you please explain the construct

On second note you were correct, I fixed my environment variable under windows %python% now works

#75 Posted: 8/8/2023 2:01:18 AM

Alvaro

1,080 likes in 1,752 posts.

Group: User

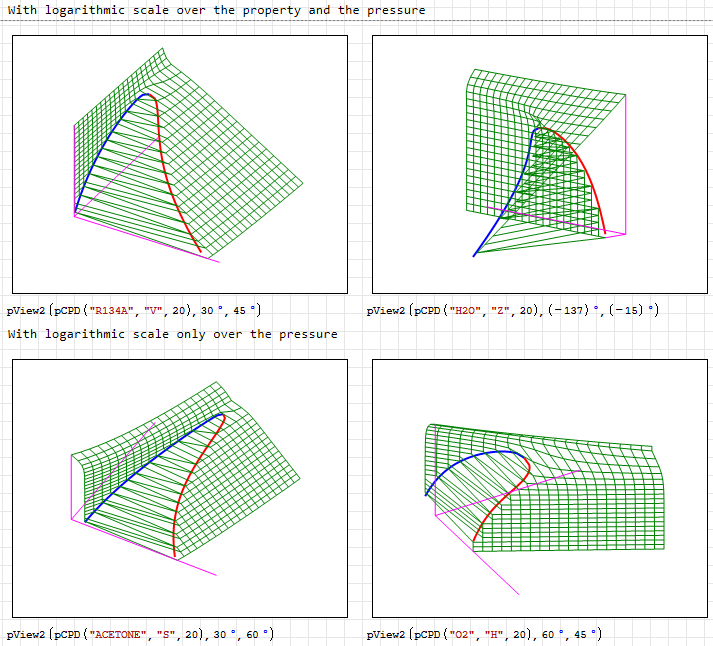

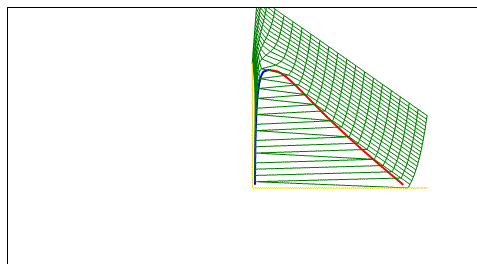

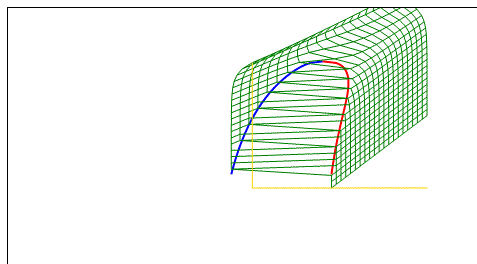

Phase diagrams with CoolProps.

PhaseDiagram.sm (39.17 KiB) downloaded 1208 time(s).

Best regards.
Alvaro.

1 users liked this post

Davide Carpi 8/8/2023 2:10:00 AM

#76 Posted: 8/9/2023 3:47:50 AM

Alvaro

1,080 likes in 1,752 posts.

Group: User

Psychrometric Chart with CoolProps. 'Simplified' version (more readable): Enthalpy lines overlap web bulb temperature lines.

PsychrometricChart.sm (125.39 KiB) downloaded 1169 time(s).

Best regards.
Alvaro.

#77 Posted: 8/21/2023 5:39:50 PM

usamakhan

3 likes in 79 posts.

Group: User

I think I have found some problems while using plugin to get phase properties as discussed here: http://www.coolprop.org/coolprop/HighLevelAPI.html#imposing-the-phase-optional

First when using "P|phase_gas" it doesn't accept units & T,P values have to be directly written in SI equivalent

Second there is a value discrepancy when using "P" & "P|phase_gas" for a fluid that exists only in gas phase at that T,P

File not found.File not found.

#78 Posted: 4/16/2024 3:55:20 AM

Martin Kraska

1,332 likes in 2,239 posts.

Group: Moderator

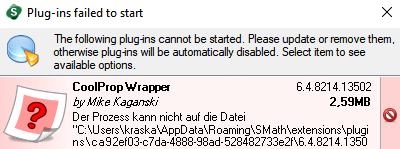

It seems that multiple instances of SMath can't use the plugin at the same time.

How to reproduce:
1. Open SMath and access any Coolprop function
2. Open another SMath instance: You get an error message
