Beta: SMath Studio 0.99.7219 (07 October 2019)

#1 Posted: 10/7/2019 12:06:36 PM

1415 likes in 2872 posts.

Group: Moderator

Application can be easily extended based on your needs. Built-in Extensions Manager tool allows to get access to hundreds official and third-party resources of the following types: usage examples, plug-ins, SMath Viewer based applications, snippets, interface translations, interactive books, handbooks and tutorials.

It provides numerous computing features and rich user interface translated into about 40 different languages. Application also contains integrated mathematical reference book.

Changes introduced in current build 0.99.7219

Improvements

Arial made a default font for Text Region.

Corrections

Changing font Familty and font size for several selected Regions fixed;
Fixed exception happens on some environments when rendering font names in font selector;
Fixed issue related to empty Descriptions on file open;
Select All supported inside embedded Regions now.

Miscellaneous

Worksheet files layout updtaed to be supported by earlier SMath Studio versions;
The following functions allows to calculate 0^0 now: sum(4), product(4), eval(1);
Situations with unwanted change of font options fixed.

Download

SMathStudioDesktop.0_99_7219.Mono.tar.gz (1 MiB) downloaded 901 time(s).

SMathStudioDesktop.0_99_7219.Setup.msi (2 MiB) downloaded 3775 time(s).

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

8 users liked this post

Radovan Omorjan 10/7/2019 12:13:00 PM, NDTM Amarasekera 10/7/2019 12:27:00 PM, sergio 10/7/2019 12:46:00 PM, frapuano 10/7/2019 2:52:00 PM, Dionysios J. Pantazis 10/7/2019 3:34:00 PM, Ryan Freund 10/7/2019 5:20:00 PM, Вячеслав Мезенцев 10/7/2019 5:48:00 PM, Arie 10/8/2019 1:12:00 PM

#2 Posted: 10/7/2019 6:05:48 PM

Ryan Freund

19 likes in 339 posts.

Group: User

This is great, thank you.

A few comments:

It would be nice to set the default text. If I change it, it will not remain as the default.

The default font size now changes correctly, however it remains shown as 10 (graphically) in the ribbon.

When using the "show description" feature. The text returns down a line when using " or ' characters.

Edit:

I don't think the font style of "descriptions" can be changed.

#3 Posted: 10/20/2019 1:57:56 PM

overlord

547 likes in 1330 posts.

Group: Moderator

Wrote
I don't think the font style of "descriptions" can be changed.

I use monospace characters in my documents; so I stick with courier new, fixedsys, typewriter fonts. New created description texts in 7219 always have Arial font and it can't be changed. I need to copy and modify a variable from earlier versions which has precreated description text.

And font can be changed to anything with a text editor like notepad.

#4 Posted: 10/22/2019 5:03:52 PM

zackchen

0 likes in 11 posts.

Group: User

I think solve function cant solve with unit，who can help me？

Test about solve.sm (5 KiB) downloaded 46 time(s).

#5 Posted: 10/22/2019 6:15:16 PM

manolo

8 likes in 9 posts.

Group: User

Try this:

#6 Posted: 10/22/2019 6:19:06 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Why not work maths as they exist from the cave man, i.e: unitless ?

#7 Posted: 10/23/2019 6:07:38 AM

sergio

115 likes in 329 posts.

Group: User

You can also use FindRoot from the NonLinearSolvers plugin, well documented, for details, in Martin Kraska guide

sergio

#8 Posted: 10/23/2019 1:07:58 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

#9 Posted: 10/23/2019 4:22:24 PM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

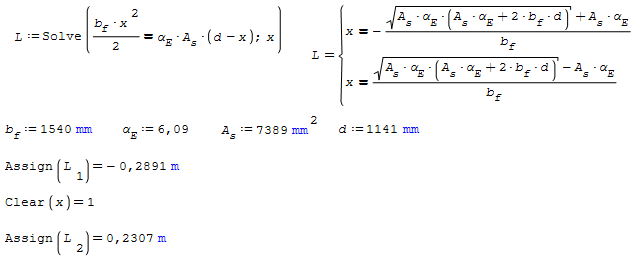

This is the version with the Maxima plugin:

solveunits.sm (7 KiB) downloaded 40 time(s).

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

1 users liked this post

sergio 10/24/2019 4:23:00 AM

#10 Posted: 10/23/2019 4:35:41 PM

zackchen

0 likes in 11 posts.

Group: User

Wrote
Try this:

in this way, I need install maple?

#11 Posted: 10/23/2019 4:37:04 PM

zackchen

0 likes in 11 posts.

Group: User

Wrote
Why not work maths as they exist from the cave man, i.e: unitless ?

I am try to solve EQ with unit. Thank you too!

#12 Posted: 10/23/2019 4:39:40 PM

zackchen

0 likes in 11 posts.

Group: User

Wrote
You can also use FindRoot from the NonLinearSolvers plugin, well documented, for details, in Martin Kraska guide

sergio

Thank you! this way is very good. But I find another problem.

Test about solve.sm (6 KiB) downloaded 38 time(s).

#13 Posted: 10/23/2019 5:10:47 PM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

FindRoot performs implicit assignment to x.
Therefore, you have to Clear(x) before you can solve for x again. Just as demonstrated in the Maxima example above. There, the solution is assigned explicitly using Assign() from the Maxima-Plugin

See Interactive Handbook> Function Index> Assign or Solve

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

#14 Posted: 10/23/2019 6:05:54 PM

zackchen

0 likes in 11 posts.

Group: User

Wrote
FindRoot performs implicit assignment to x.
Therefore, you have to Clear(x) before you can solve for x again. Just as demonstrated in the Maxima example above. There, the solution is assigned explicitly using Assign() from the Maxima-Plugin

See Interactive Handbook> Function Index> Assign or Solve

thank you sir. I solve my problem!

#15 Posted: 10/24/2019 8:52:58 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
I solved my problem !

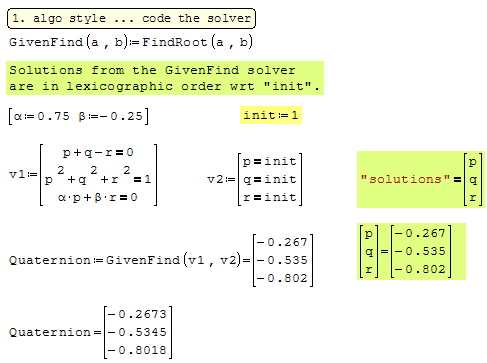

Read carefully the attached.

Solve Given_Find [System Demo epsilon].sm (25 KiB) downloaded 41 time(s).

#16 Posted: 10/24/2019 11:09:03 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Read carefully the attached.

Read even more carefully the attached.
All in all: Smath solvers has solved all Mathcad 11 great projects.
The bugger in Smath FindRoot is 'ε'
i.e: needed or detrimental [detrimental in attached Butler].
To make it clear, Mathcad Given Find is Mathsoft proprietary.
It has no competition in difficult applications.
Some projects toke weeks, from brain storm collaboration.
Cheers ... Enjoy Butler.

Solve Given_Find [CO2_6179].sm (34 KiB) downloaded 46 time(s).

#17 Posted: 10/24/2019 12:48:45 PM

Radovan Omorjan

325 likes in 2052 posts.

Group: Moderator

Wrote

Wrote
Read carefully the attached.

Read even more carefully the attached.
All in all: Smath solvers has solved all Mathcad 11 great projects.
The bugger in Smath FindRoot is 'ε'
i.e: needed or detrimental [detrimental in attached Butler].
To make it clear, Mathcad Given Find is Mathsoft proprietary.
It has no competition in difficult applications.
Some projects toke weeks, from brain storm collaboration.
Cheers ... Enjoy Butler.

Solve Given_Find [CO2_6179].sm (34 KiB) downloaded 46 time(s).

Hello Jean,

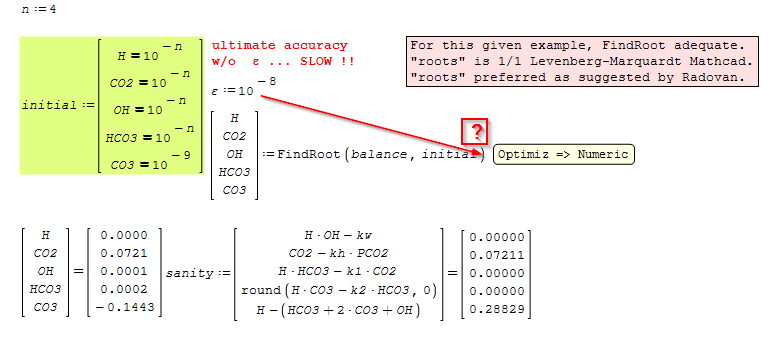

It seems something is wrong here. Results seems to be doubtful and I think epsilon is missing as a third argument in FindRoot()

If I add it

Playing with the fourth argument will give

Moreover, roots() will fail

Regards,
Radovan

When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"

#18 Posted: 10/24/2019 5:54:18 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Hello Jean,
It seems something is wrong here.

Quite right Radovan, many things don't cut the mustard !
1. "roots" fails in your version, but superb in my native SS 6179.
2. "epsilon" deteriorates the solver in this FindRoot application.
3. The system reacts like proportional/commutative wrt reactants.
What matters is the balance [Alkalinity] 0.0000012
sounds pretty good to me ? Should revisit the paper problem,
Reference: Butler, Carbon Dioxide Equilibria, Prob. 2-11, pg 41
