Beta: SMath Studio 0.99.7219 (07 October 2019)

#1 Опубликовано: 07.10.2019 12:06:36

1415 сообщений из 2872 понравились пользователям.

Группа: Moderator

Программа может быть легко дополнена новой функциональностью основываясь на ваших требованиях. Встроенный менеджер расширений позволяет получить доступ к сотням официальных и сторонних ресурсов следующих типов: примеры использования, дополнения, приложения на основе SMath Viewer, заготовки, языковые переводы интерфейса, интерактивные книги, справочники и пособия.

Предоставляет множество вычислительных возможностей и обладает богатым пользовательским интерфейсом, переведённым примерно на 40 различных языков. К тому же, в приложение встроен подробный математический справочник.

Changes introduced in current build 0.99.7219

Улучшения

Arial made a default font for Text Region.

Исправления

Changing font Familty and font size for several selected Regions fixed;
Fixed exception happens on some environments when rendering font names in font selector;
Fixed issue related to empty Descriptions on file open;
Select All supported inside embedded Regions now.

Разное

Worksheet files layout updtaed to be supported by earlier SMath Studio versions;
The following functions allows to calculate 0^0 now: sum(4), product(4), eval(1);
Situations with unwanted change of font options fixed.

Download

SMathStudioDesktop.0_99_7219.Mono.tar.gz (1 МиБ) скачан 901 раз(а).

SMathStudioDesktop.0_99_7219.Setup.msi (2 МиБ) скачан 3775 раз(а).

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

8 пользователям понравился этот пост

Radovan Omorjan 07.10.2019 12:13:00, NDTM Amarasekera 07.10.2019 12:27:00, sergio 07.10.2019 12:46:00, frapuano 07.10.2019 14:52:00, Dionysios J. Pantazis 07.10.2019 15:34:00, Ryan Freund 07.10.2019 17:20:00, Вячеслав Мезенцев 07.10.2019 17:48:00, Arie 08.10.2019 13:12:00

#2 Опубликовано: 07.10.2019 18:05:48

Ryan Freund

19 сообщений из 339 понравились пользователям.

Группа: User

This is great, thank you.

A few comments:

It would be nice to set the default text. If I change it, it will not remain as the default.

The default font size now changes correctly, however it remains shown as 10 (graphically) in the ribbon.

When using the "show description" feature. The text returns down a line when using " or ' characters.

Edit:

I don't think the font style of "descriptions" can be changed.

#3 Опубликовано: 20.10.2019 13:57:56

overlord

547 сообщений из 1330 понравились пользователям.

Группа: Moderator

Wrote
I don't think the font style of "descriptions" can be changed.

I use monospace characters in my documents; so I stick with courier new, fixedsys, typewriter fonts. New created description texts in 7219 always have Arial font and it can't be changed. I need to copy and modify a variable from earlier versions which has precreated description text.

And font can be changed to anything with a text editor like notepad.

#4 Опубликовано: 22.10.2019 17:03:52

zackchen

0 сообщений из 11 понравились пользователям.

Группа: User

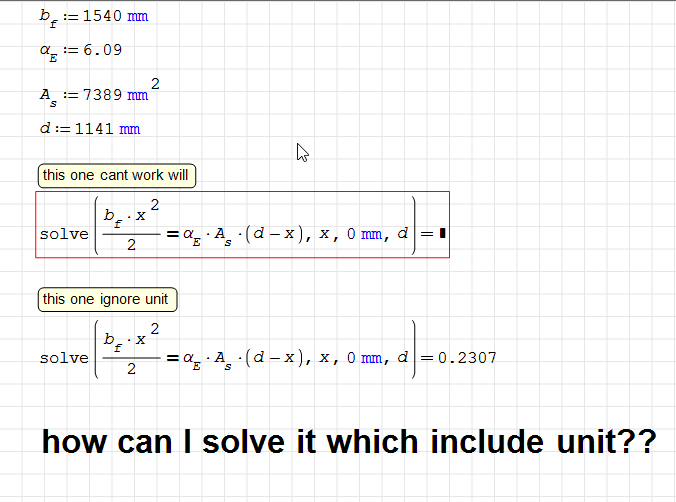

I think solve function cant solve with unit，who can help me？

Test about solve.sm (5 КиБ) скачан 45 раз(а).

#5 Опубликовано: 22.10.2019 18:15:16

manolo

8 сообщений из 9 понравились пользователям.

Группа: User

Try this:

#6 Опубликовано: 22.10.2019 18:19:06

Jean Giraud

983 сообщений из 6866 понравились пользователям.

Группа: User

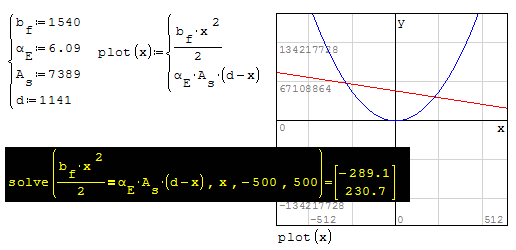

Why not work maths as they exist from the cave man, i.e: unitless ?

#7 Опубликовано: 23.10.2019 06:07:38

sergio

115 сообщений из 329 понравились пользователям.

Группа: User

You can also use FindRoot from the NonLinearSolvers plugin, well documented, for details, in Martin Kraska guide

sergio

#8 Опубликовано: 23.10.2019 13:07:58

Jean Giraud

983 сообщений из 6866 понравились пользователям.

Группа: User

#9 Опубликовано: 23.10.2019 16:22:24

Martin Kraska

1222 сообщений из 2150 понравились пользователям.

Группа: Moderator

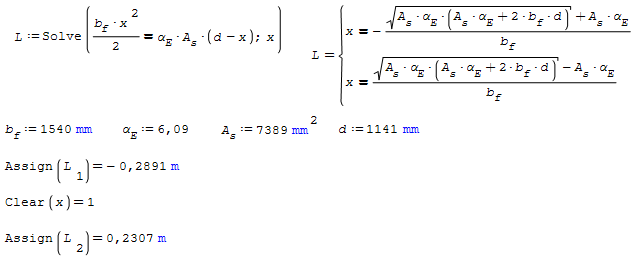

This is the version with the Maxima plugin:

solveunits.sm (7 КиБ) скачан 39 раз(а).

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

1 пользователям понравился этот пост

sergio 24.10.2019 04:23:00

#10 Опубликовано: 23.10.2019 16:35:41

zackchen

0 сообщений из 11 понравились пользователям.

Группа: User

Wrote
Try this:

in this way, I need install maple?

#11 Опубликовано: 23.10.2019 16:37:04

zackchen

0 сообщений из 11 понравились пользователям.

Группа: User

Wrote
Why not work maths as they exist from the cave man, i.e: unitless ?

I am try to solve EQ with unit. Thank you too!

#12 Опубликовано: 23.10.2019 16:39:40

zackchen

0 сообщений из 11 понравились пользователям.

Группа: User

Wrote
You can also use FindRoot from the NonLinearSolvers plugin, well documented, for details, in Martin Kraska guide

sergio

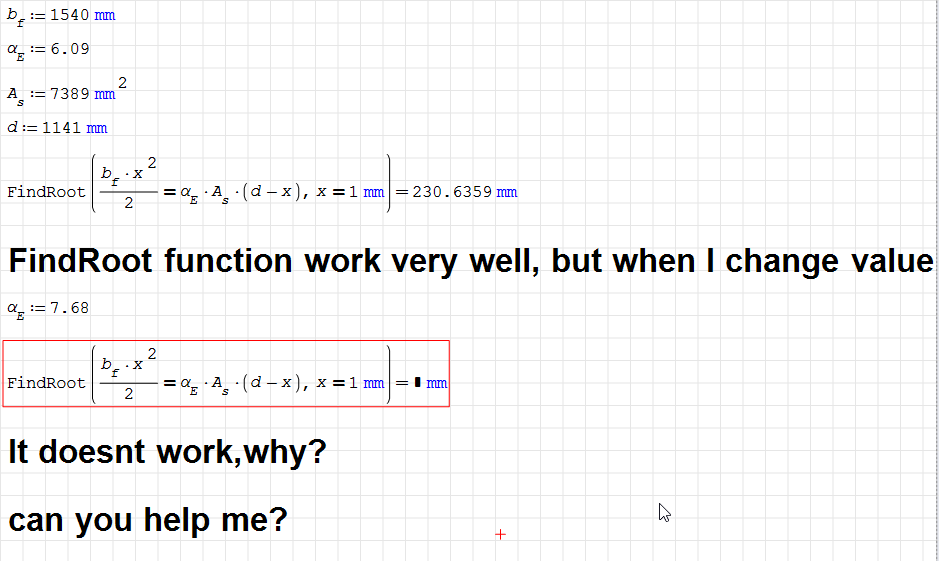

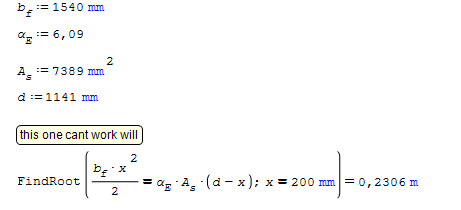

Thank you! this way is very good. But I find another problem.

Test about solve.sm (6 КиБ) скачан 37 раз(а).

#13 Опубликовано: 23.10.2019 17:10:47

Martin Kraska

1222 сообщений из 2150 понравились пользователям.

Группа: Moderator

FindRoot performs implicit assignment to x.
Therefore, you have to Clear(x) before you can solve for x again. Just as demonstrated in the Maxima example above. There, the solution is assigned explicitly using Assign() from the Maxima-Plugin

See Interactive Handbook> Function Index> Assign or Solve

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

#14 Опубликовано: 23.10.2019 18:05:54

zackchen

0 сообщений из 11 понравились пользователям.

Группа: User

Wrote
FindRoot performs implicit assignment to x.
Therefore, you have to Clear(x) before you can solve for x again. Just as demonstrated in the Maxima example above. There, the solution is assigned explicitly using Assign() from the Maxima-Plugin

See Interactive Handbook> Function Index> Assign or Solve

thank you sir. I solve my problem!

#15 Опубликовано: 24.10.2019 08:52:58

Jean Giraud

983 сообщений из 6866 понравились пользователям.

Группа: User

Wrote
I solved my problem !

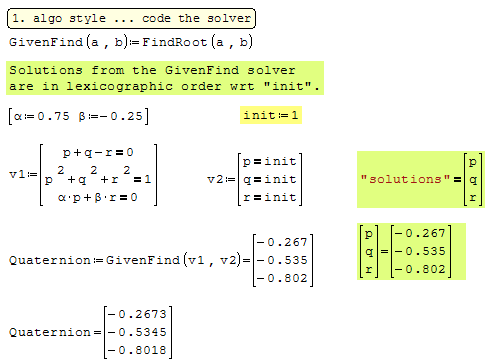

Read carefully the attached.

Solve Given_Find [System Demo epsilon].sm (25 КиБ) скачан 40 раз(а).

#16 Опубликовано: 24.10.2019 11:09:03

Jean Giraud

983 сообщений из 6866 понравились пользователям.

Группа: User

Wrote
Read carefully the attached.

Read even more carefully the attached.

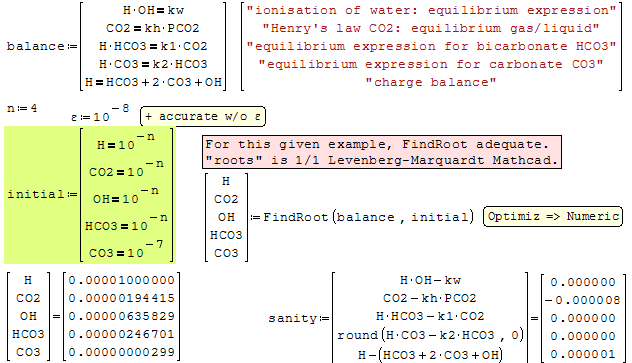

All in all: Smath solvers has solved all Mathcad 11 great projects.
The bugger in Smath FindRoot is 'ε'
i.e: needed or detrimental [detrimental in attached Butler].
To make it clear, Mathcad Given Find is Mathsoft proprietary.
It has no competition in difficult applications.
Some projects toke weeks, from brain storm collaboration.
Cheers ... Enjoy Butler.

Solve Given_Find [CO2_6179].sm (34 КиБ) скачан 46 раз(а).

#17 Опубликовано: 24.10.2019 12:48:45

Radovan Omorjan

325 сообщений из 2052 понравились пользователям.

Группа: Moderator

Wrote

Wrote
Read carefully the attached.

Read even more carefully the attached.
All in all: Smath solvers has solved all Mathcad 11 great projects.
The bugger in Smath FindRoot is 'ε'
i.e: needed or detrimental [detrimental in attached Butler].
To make it clear, Mathcad Given Find is Mathsoft proprietary.
It has no competition in difficult applications.
Some projects toke weeks, from brain storm collaboration.
Cheers ... Enjoy Butler.

Solve Given_Find [CO2_6179].sm (34 КиБ) скачан 46 раз(а).

Hello Jean,

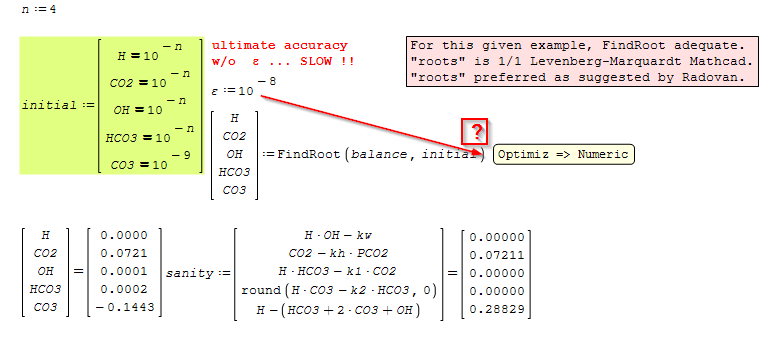

It seems something is wrong here. Results seems to be doubtful and I think epsilon is missing as a third argument in FindRoot()

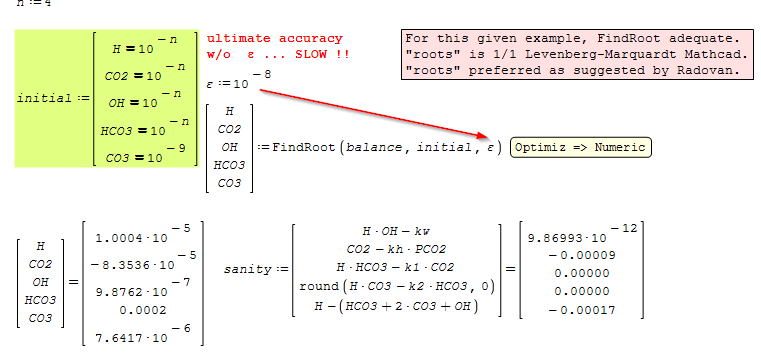

If I add it

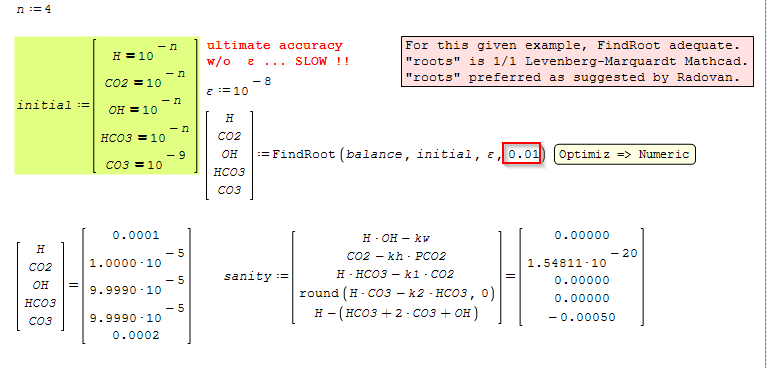

Playing with the fourth argument will give

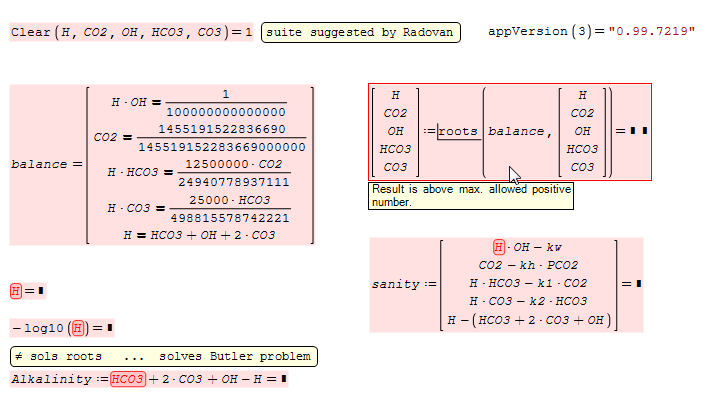

Moreover, roots() will fail

Regards,
Radovan

When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"

#18 Опубликовано: 24.10.2019 17:54:18

Jean Giraud

983 сообщений из 6866 понравились пользователям.

Группа: User

Wrote
Hello Jean,
It seems something is wrong here.

Quite right Radovan, many things don't cut the mustard !
1. "roots" fails in your version, but superb in my native SS 6179.
2. "epsilon" deteriorates the solver in this FindRoot application.
3. The system reacts like proportional/commutative wrt reactants.
What matters is the balance [Alkalinity] 0.0000012
sounds pretty good to me ? Should revisit the paper problem,
Reference: Butler, Carbon Dioxide Equilibria, Prob. 2-11, pg 41
