I'm trying to recreate a mathcad calculation in smath and I'm not sure how to make the evaluation "l" which is the resultant distance for each point.
Thanks in advance for any help.
C' Bolt Coefficient.sm (9 KiB) downloaded 48 time(s).
DownloadDocumentFile.pdf (8 KiB) downloaded 61 time(s).

#2 Posted: 7/26/2016 8:02:04 PM

Ernesto

13 likes in 74 posts.

Group: User

Here you go. There might be another way to do this, but this was the first I thought of.

C' Bolt Coefficient revised.sm (11 KiB) downloaded 51 time(s).

#3 Posted: 7/26/2016 10:55:28 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Is that the bolt group ? If so: what else to do ?

Forum Bolt Group.gif

#4 Posted: 7/27/2016 11:20:59 AM

uncblue

2 likes in 18 posts.

Group: User

Thanks Ernesto.

@Jean

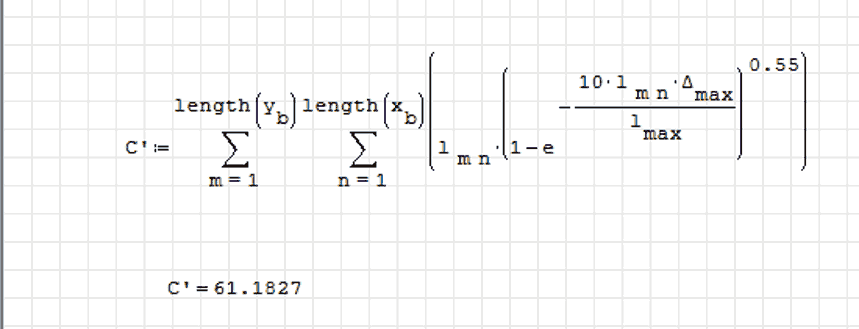

The next step is to use the C' equation to for each bolt resultant distance to center of group.

I think I've got the C' equation working but I'm sure there is a better way.

C' Bolt Coefficient - 2016-07-27.sm (33 KiB) downloaded 37 time(s).

#5 Posted: 7/27/2016 12:17:10 PM

uncblue

2 likes in 18 posts.

Group: User

Wrote
"Uncle Sam",

By inspetion, I kind of understand the C' formula,
just a matter to code Smath. Will be back tonight.
What is Δmax ?

Jean

Thanks for the help.
Δmax = Maximum deformation on the bolt farthest from the center of gravity.
Empirical set value = 0.34 in

#6 Posted: 7/27/2016 12:52:08 PM

CBG

77 likes in 312 posts.

Group: User

you can use the same formula

Best Regards

Carlos

C' Bolt Coefficient_CBG.sm (13 KiB) downloaded 42 time(s).

1 users liked this post

uncblue 7/29/2016 10:54:00 AM
