f(x, y) - 3D plot and optimal point

#1 Posted: 11/6/2023 12:13:14 AM

55 likes in 633 posts.

Group: User

I have f(x, y) - thermal efficiency of a steam turbine with two steam extractions for heating feed water depending on the extraction pressures.
Question.
1. How to find the optimal pressure values at which the efficiency will be maximum?
2. Is it possible to build a surface? For now I have two separate 2D graphics.
More https://link.springer.com/book/10.1007/978-3-319-26674-9
2RegP-Ideal-new.sm (94 KiB) downloaded 33 time(s).

#2 Posted: 11/6/2023 12:43:57 AM

Valery Ochkov

55 likes in 633 posts.

Group: User

No, you cannot replace WaterSteamPro with Cool Prop for water/steam.
WaterSteamPro is a certified program!
Compare please two plots

#3 Posted: 11/7/2023 3:44:54 AM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

I am not familiar with CoolProps but I think I could make a nice 3D plot with Maxima if you provide the smath file

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

1 users liked this post

Valery Ochkov 11/7/2023 1:09:00 PM

#4 Posted: 11/7/2023 1:10:43 PM

Valery Ochkov

55 likes in 633 posts.

Group: User

Wrote
I am not familiar with CoolProps but I think I could make a nice 3D plot with Maxima if you provide the smath file

Thanks, Martin!
Must be someone so

#5 Posted: 11/7/2023 2:53:03 PM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

OK but I need a file where the wsp calls are replaced by coolprop ones. Even if plotting doesn't work as expected.

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

#6 Posted: 11/8/2023 1:05:10 PM

Valery Ochkov

55 likes in 633 posts.

Group: User

Wrote
OK but I need a file where the wsp calls are replaced by coolprop ones. Even if plotting doesn't work as expected.

See please attach
2RegP-Ideal-Cool_Prop-95.sm (73 KiB) downloaded 42 time(s).
2RegP-Ideal-Cool_Prop-95.pdf (361 KiB) downloaded 39 time(s).
Martin (and all), I am waiting for the solution - 3D-plot and optimal values of p1 and p2.

#7 Posted: 11/8/2023 9:11:41 PM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

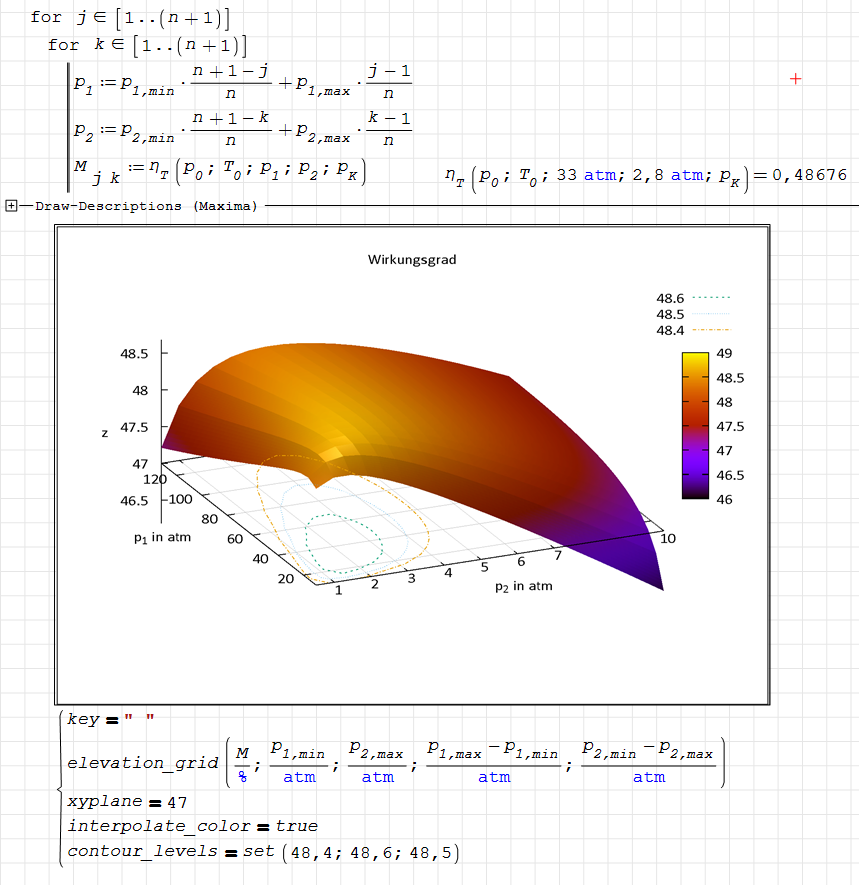

Just the plot, no optimization yet.

2023-11-08 15_08_23-SMath Solver - [2RegP-Ideal-Cool_Prop-95_Kr.sm_].png

2RegP-Ideal-Cool_Prop-95_Kr.sm (300 KiB) downloaded 40 time(s).

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

2 users liked this post

Oscar Campo 11/8/2023 9:22:00 PM, Valery Ochkov 11/8/2023 10:27:00 PM

#8 Posted: 11/9/2023 1:16:22 AM

Valery Ochkov

55 likes in 633 posts.

Group: User

No optimization yet.
For checking

#9 Posted: 11/9/2023 6:31:08 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
No, you cannot replace WaterSteamPro with Cool Prop for water/steam.
WaterSteamPro is a certified program!

Agreed: CoolProp is CoolProp.
For quick visit, I use freeware Katmar IAPWS=97 in all sorts of units.
By same token, in Smath, we have lot of water/steam formulas.
What about you tabulate matrix style, then spline/interpolate.
I will be back on your document ... Jean

1 users liked this post

Valery Ochkov 11/9/2023 6:37:00 PM

#10 Posted: 11/10/2023 1:49:18 PM

Valery Ochkov

55 likes in 633 posts.

Group: User

Wrote

Wrote
No, you cannot replace WaterSteamPro with Cool Prop for water/steam.
WaterSteamPro is a certified program!

Agreed: CoolProp is CoolProp.
For quick visit, I use freeware Katmar IAPWS=97 in all sorts of units.
By same token, in Smath, we have lot of water/steam formulas.
What about you tabulate matrix style, then spline/interpolate.
I will be back on your document ... Jean

#11 Posted: 11/11/2023 1:40:46 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

... confirmed vs my formula IAPWS-97

#12 Posted: 11/12/2023 2:37:31 AM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

Wrote
No optimization yet.
For checking

I get slightly different values. Still no automatic optimization because the objective function doesn't translate to Maxima. As a first step I made the function more robust by solving the two equations sequentially instead of simultaneously. In the original version sampling for the plot occasionally failed.

Plot MPa.pdf (219 KiB) downloaded 23 time(s).
2RegP-Ideal-Cool_Prop-95_Kr_detail.sm (157 KiB) downloaded 30 time(s).

2023-11-11 19_21_55-SMath Solver - [2RegP-Ideal-Cool_Prop-95_Kr_detail.sm_].png

2RegP-Ideal-Cool_Prop-95_Kr_detail.pdf (520 KiB) downloaded 30 time(s).

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

2 users liked this post

Valery Ochkov 11/12/2023 2:41:00 AM, Alvaro Diaz Falconi 11/12/2023 9:04:00 AM

#13 Posted: 11/12/2023 2:51:46 AM

Valery Ochkov

55 likes in 633 posts.

Group: User

Wonderful!
But I dare to note that a real steam turbine unit has up to eight steam extractions from the turbine to regenerative heaters. And not only mixing, but also surface type.
