Greetings,
I am curious about the operation of the percent "%" symbol.

If I add, for example, 1+100%=..., it gives the warning "units don't match".
I would expect it to return either 2 or 200%.

I only installed the program a few days ago, so maybe I am misunderstanding the operation of the % symbol. The program is very nice - just trying to figure out the details for input, etc.

Thanks!

Can't reproduce that with 0.98.6179.



Make sure the % symbol is in blue italic (recognized as a unit).

Type 1+100% TAB =

The tabulator key is used to confirm the selection in the dynamic assistant.

In SMath Studio % is nothing else than a representation of the number 0.01

Type X:=1.23456789*[in the place holder: insert % from drop down unit menu]
check result X=0.0123456789

Thanks for the replies.

I believe my problem was replacing "Metric" with "Imperial" in the settings.inf file (OutputUnitsSystem variable).
I was trying to force the output units to be Imperial, which was working, but apparently it has some effect on the use of the % symbol.

Anyway, I think changing to Imperial in the .inf is not technically a supported or approved method.
So I changed my OutputUnitsSystem back to Metric and it works fine.

Thanks again.

Greetings!

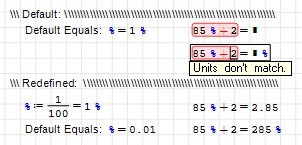

To the best of my knowledge, you should be able to redefine the ｢%｣ from ｢dimensionless｣ to a ｢number｣ of value: 0.01; keypress the following at the top of your worksheet:

(NOTE: I currently have the settings.inf file modified to Imperial units ｢OutputUnitsSystem=Imperial｣ and % appears to behave as expected when it is redefined to 0.01)


-Kenny Lemens, P.E.
