Bresenham Algorithm - Messages
#1 Posted: 2/6/2018 5:06:34 AM
Plots programmed in native SMath language.
Best regards.
Alvaro.
BresenhamPlot.sm (82 KiB) downloaded 287 time(s).
Best regards.
Alvaro.
BresenhamPlot.sm (82 KiB) downloaded 287 time(s).
3 users liked this post
#2 Posted: 2/7/2018 9:26:15 AM
WrotePlots programmed in native SMath language.
Best regards.
Alvaro.
Thanks Alvaro,
great piece of work, very nice for publishing.
BTW, do you remember Tom Gutman "Contour Matrix Plot" [Mathsoft Collaboratory] ?
I still have the code and example, are you willing to give it a try ?
Mathcad built-in NaN is 10^-307,
"ifisScalar" is not necessary ... if one plugs a scalar f(x,y)
Cheers ... Jean
#3 Posted: 2/11/2018 8:02:12 AM
Hi Jean. Yes, I remember it. But remember also Tom's vecfield and contour plot but from Viacheslav Mezentsev. Maybe someone can translate attached to SMath.
Someone ever invited Tom to this forum?
Best regards.
Alvaro.
Plot2D.zip (45 KiB) downloaded 181 time(s).
Someone ever invited Tom to this forum?
Best regards.
Alvaro.
Plot2D.zip (45 KiB) downloaded 181 time(s).
#4 Posted: 2/11/2018 8:03:24 AM
An improved version of Bresenham Algorithm.
Alvaro.
BresenhamPlot v2.sm (80 KiB) downloaded 272 time(s).
Alvaro.
BresenhamPlot v2.sm (80 KiB) downloaded 272 time(s).
#5 Posted: 1/3/2025 12:21:22 PM

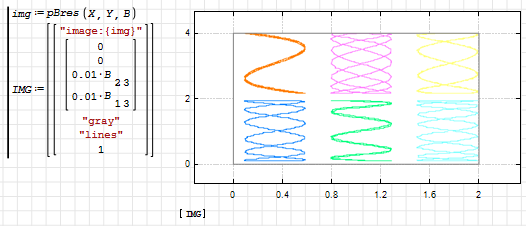

Second life: now it can be inserted into an XYPlot.

BresenhamPlot v3.sm (72 KiB) downloaded 232 time(s).
BresenhamPlot v3.pdf (320 KiB) downloaded 224 time(s).
Best regards.
Alvaro.

BresenhamPlot v3.sm (72 KiB) downloaded 232 time(s).
BresenhamPlot v3.pdf (320 KiB) downloaded 224 time(s).
Best regards.
Alvaro.
2 users liked this post
