Phasor - SMath

#1 Posted: 5/18/2019 8:02:12 PM

8 likes in 172 posts.

Group: User

Hello,
I need to draw phasors (lines-vectors) for AC circuit analysis.
- Line from origin to a point.
- Line from a point to another
The magnitude and the angle or Real and Imaginary parts are known.

Is there any related example?

Thank you,
Basile

#2 Posted: 5/19/2019 10:00:57 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Hello,
I need to draw phasors (lines-vectors) for AC circuit analysis.
- Line from origin to a point.
- Line from a point to another
The magnitude and the angle or Real and Imaginary parts are known.

Is there any related example?

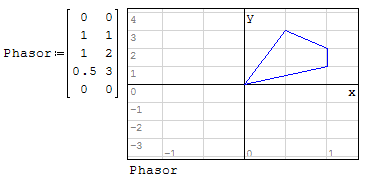

Brute force quick

#3 Posted: 5/20/2019 1:05:14 AM

Basile

8 likes in 172 posts.

Group: User

Thank you Jean.
Any way to use different colour for some segments?
Put an arrow or a circle at the end?
Have a text to identify each segment?

Basile

#4 Posted: 5/20/2019 2:25:58 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

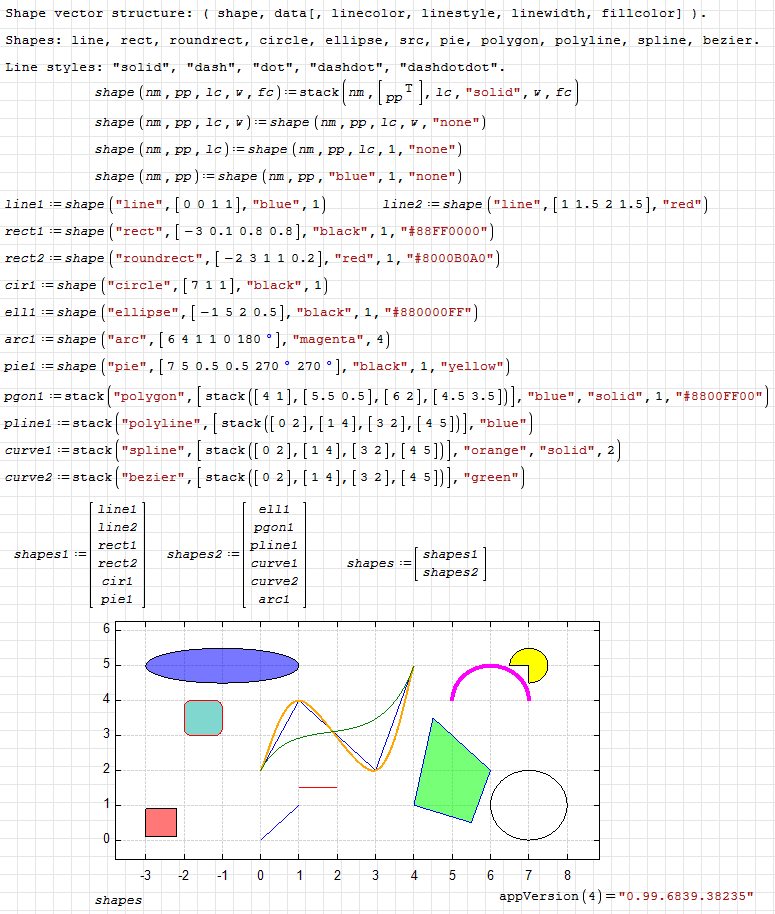

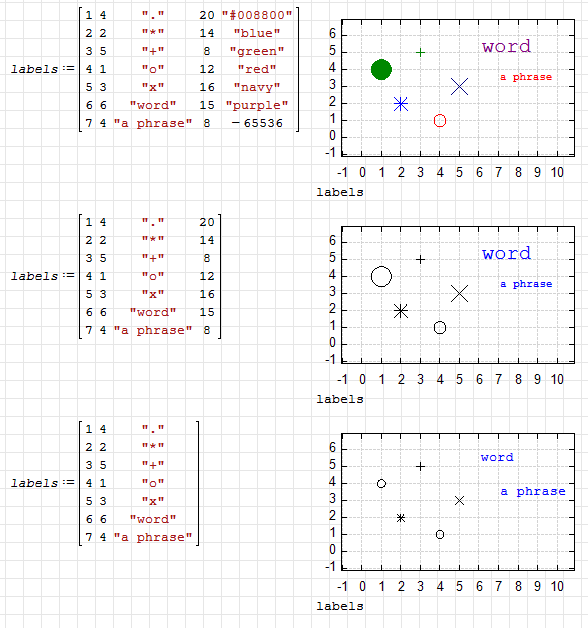

You can use X-Y Plot Region for this.

[albumimg]1502[/albumimg] [albumimg]1516[/albumimg]

XYPlot. Draw shapes.sm (19 KiB) downloaded 870 time(s).
XYPlot. Draw shapes.pdf (92 KiB) downloaded 679 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

#5 Posted: 5/20/2019 9:24:12 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Thank you Jean.
Any way to use different colour for some segments?
Put an arrow or a circle at the end?
Have a text to identify each segment?

Basile

Hello Basile,
You should be able to build your circuit with the attached.
Make something, attach and we will add text if you can't.
Cheers ... Jean

Circle_rkfixed Arrow.sm (27 KiB) downloaded 50 time(s).
2D Util Bar Arrow Model.sm (22 KiB) downloaded 40 time(s).
Circle_rkfixed Clock.sm (23 KiB) downloaded 38 time(s).

#6 Posted: 5/22/2019 10:52:49 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Thank you Jean.
Any way to use different colour for some segments?
Put an arrow or a circle at the end?
Have a text to identify each segment?

Basile

Hello, Basile
On that one you can do a bit more.
Too much may be too much, isn't ?
Cheers ... Jean

Maths Polygon.sm (17 KiB) downloaded 48 time(s).

#7 Posted: 5/23/2019 12:22:45 PM

Basile

8 likes in 172 posts.

Group: User

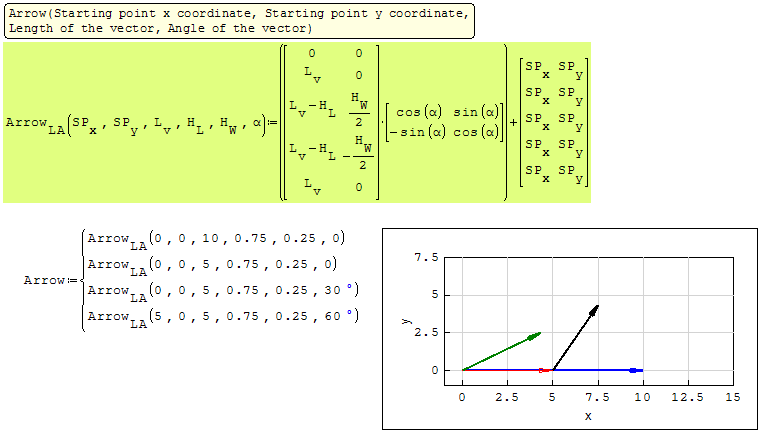

Hello Jean and Uni,

Why the Lv is not defined?
I express the matrices as function.
And then the vectors evaluate!
What are the red squares to the right?

It looks that this approach of drawing vectors is a begging.
I shall work on it.

Thank you,
BasilePage2-error.sm (12 KiB) downloaded 30 time(s).

#8 Posted: 5/23/2019 8:32:28 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
What are the red squares to the right?

Red square in the scroll bar points at the errors in the document.

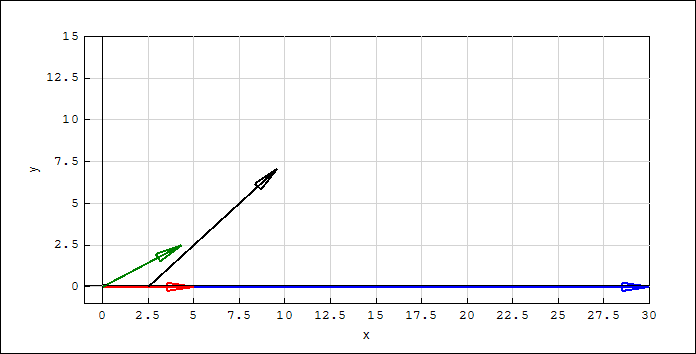

More elegant arrows proposed.

Page2-error.sm (8 KiB) downloaded 43 time(s).

1 users liked this post

NDTM Amarasekera 5/26/2019 5:25:00 AM

#9 Posted: 5/24/2019 3:09:24 PM

Basile

8 likes in 172 posts.

Group: User

Hi Jean,

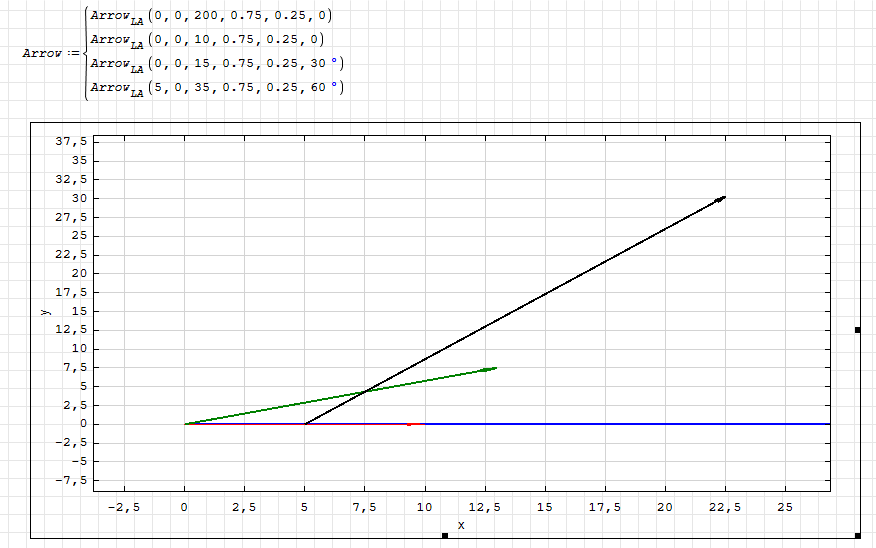

The arrows fail when the length of the vector changes.
I have tried as a percentage of length but does not look nice.
Scaling the vectors to always be one but will loose real values

.
Any good idea?

Is there a way to auto-scale the 2D plot or X-Y plot?
One of the vectors is out of the visual plane.

Thanks,
Basile

#10 Posted: 5/24/2019 3:19:13 PM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

As I said before:

Wrote
How about a simple arrow?

Wrote
I do not know how to do it better. The arrow should look good in different scales and in its own size.

Russia ☭ forever, Viacheslav N. Mezentsev

#11 Posted: 5/24/2019 5:35:33 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Any good idea?

Is there a way to auto-scale the 2D plot or X-Y plot?
One of the vectors is out of the visual plane.

None of the quick plot or X_Y plot can be made X, Y directions scalable
similar to Mathcad 11 ... to me: useless.
From an original X_Y plot creation, stretch by handles respect aspect ratio.
If you modify the X, Y directions [max/min], apply close enough HL, HW ratio.

Page2-error (1).sm (11 KiB) downloaded 32 time(s).

2 users liked this post

NDTM Amarasekera 5/24/2019 11:22:00 PM, frapuano 5/25/2019 2:46:00 AM

#12 Posted: 5/24/2019 10:44:11 PM

Fridel Selitsky

520 likes in 451 posts.

Group: User

Another kind of arrow.

Arrow.sm (5 KiB) downloaded 40 time(s).

3 users liked this post

NDTM Amarasekera 5/24/2019 11:22:00 PM, frapuano 5/25/2019 2:46:00 AM, Вячеслав Мезенцев 5/25/2019 6:08:00 AM

#13 Posted: 5/25/2019 9:24:37 PM

NDTM Amarasekera

130 likes in 352 posts.

Group: User

Wrote

More elegant arrows proposed.

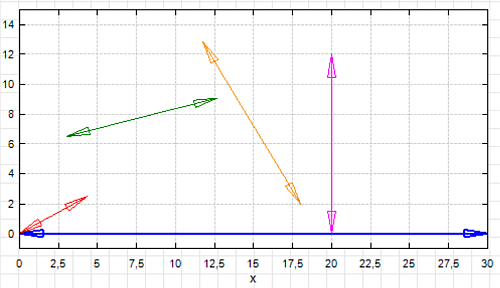

With both arrow heads, based on Jean's method.
Thank you Jean.

Both Arrows.sm (30 KiB) downloaded 40 time(s).

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#14 Posted: 5/26/2019 12:52:40 AM

Basile

8 likes in 172 posts.

Group: User

Hi,
Why I am getting errors when load your file?
The latest Stable: SMath Studio 0.99.7030 (01 April 2019)
File not found.File not found.
At the end I am able to open the file.
I do the same with two arrows 2π apart, but yours is more elegant.

Basile
