I get an issue trying to install Zedgraph plugin with most recent beta. Not sure if it worked in previous versions.

Few days ago, ZedGraph was reported not working.
Today, I downloaded "Filter response" that has the lo-log ZedGraph.
It couldn't find it in version 6179, said yes to "continue",
here is the log-log plot working in 6179. I checked the "Insert"
menu ... now it is in the "Insert" menu.
It might install itself for you like it did for me ... try .

Wrote

I get an issue trying to install Zedgraph plugin with most recent beta. Not sure if it worked in previous verions.
Anyways it throws an exception. I attached the text.

I'm running SMath 0.98.6522

You need administrator rights to run. The location of the extensions folder is strange ('C:\Program Files (x86)\SMath Studio\extensions\' ). Usually it is located in a %user%\AppData folder. Maybe you need to completely uninstall the program and reinstall it without administrator rights.

Wrote

You need administrator rights to run. The location of the extensions folder is strange ('C:\Program Files (x86)\SMath Studio\extensions\' ). Usually it is located in a %user%\AppData folder. Maybe you need to completely uninstall the program and reinstall it without administrator rights.

This might happen if a portable distribution has been stored under 'C:\Program Files (x86)\SMath Studio' or an ordinary installer version has been made portable (by placing a file portable.version in the install dir).

thanks. Re-ran SMath with Admin rights and it seemed to clear up. I did have portable distribution in there at some point

Hi,
Inserting zedgraph cause:
Unhandled exception has occured...


See the end of this message for details on invoking
just-in-time (JIT) debugging instead of this dialog box.

************** Exception Text **************
System.Reflection.TargetInvocationException: Exception has been thrown by the target of an invocation. ---> System.IO.FileNotFoundException: Could not find file 'ZedGraphRegion.resources'.
at System.Reflection.RuntimeAssembly.InternalGetSatelliteAssembly(String name, CultureInfo culture, Version version, Boolean throwOnFileNotFound, StackCrawlMark& stackMark)
at System.Resources.ManifestBasedResourceGroveler.GetSatelliteAssembly(CultureInfo lookForCulture, StackCrawlMark& stackMark)
at System.Resources.ManifestBasedResourceGroveler.GrovelForResourceSet(CultureInfo culture, Dictionary`2 localResourceSets, Boolean tryParents, Boolean createIfNotExists, StackCrawlMark& stackMark)
at System.Resources.ResourceManager.InternalGetResourceSet(CultureInfo requestedCulture, Boolean createIfNotExists, Boolean tryParents, StackCrawlMark& stackMark)
at System.Resources.ResourceManager.InternalGetResourceSet(CultureInfo culture, Boolean createIfNotExists, Boolean tryParents)
at System.Resources.ResourceManager.GetString(String name, CultureInfo culture)
at ZedGraphPlugin.ZedGraphControl..ctor(SessionProfile sessionProfile)
--- End of inner exception stack trace ---
at System.RuntimeMethodHandle.InvokeMethod(Object target, Object[] arguments, Signature sig, Boolean constructor)
at System.Reflection.RuntimeConstructorInfo.Invoke(BindingFlags invokeAttr, Binder binder, Object[] parameters, CultureInfo culture)
at System.RuntimeType.CreateInstanceImpl(BindingFlags bindingAttr, Binder binder, Object[] args, CultureInfo culture, Object[] activationAttributes, StackCrawlMark& stackMark)
at System.Activator.CreateInstance(Type type, BindingFlags bindingAttr, Binder binder, Object[] args, CultureInfo culture, Object[] activationAttributes)
at System.Activator.CreateInstance(Type type, Object[] args)
at SMath.Control.RegionHolder`1..ctor(SessionProfile sessionProfile)
at ZedGraphPlugin.ZedGraph..ctor(SessionProfile sessionProfile)
at ZedGraphPlugin.PluginRegion.InsertZedGraphRegionHolder(MenuButtonArgs args)
at ..
(Object , RegionBase , MenuButton )
at ...
(Object , EventArgs )
at System.Windows.Forms.ToolStripItem.RaiseEvent(Object key, EventArgs e)
at System.Windows.Forms.ToolStripMenuItem.OnClick(EventArgs e)
at System.Windows.Forms.ToolStripItem.HandleClick(EventArgs e)
at System.Windows.Forms.ToolStripItem.HandleMouseUp(MouseEventArgs e)
at System.Windows.Forms.ToolStrip.OnMouseUp(MouseEventArgs mea)
at System.Windows.Forms.ToolStripDropDown.OnMouseUp(MouseEventArgs mea)
at System.Windows.Forms.Control.WmMouseUp(Message& m, MouseButtons button, Int32 clicks)
at System.Windows.Forms.Control.WndProc(Message& m)
at System.Windows.Forms.ToolStrip.WndProc(Message& m)
at System.Windows.Forms.ToolStripDropDown.WndProc(Message& m)
at System.Windows.Forms.NativeWindow.Callback(IntPtr hWnd, Int32 msg, IntPtr wparam, IntPtr lparam)


************** Loaded Assemblies **************
mscorlib
Assembly Version: 4.0.0.0
Win32 Version: 4.7.2633.0 built by: NET471REL1LAST_C
CodeBase: file:///C:/Windows/Microsoft.NET/Framework64/v4.0.30319/mscorlib.dll

---

SMathStudio_Desktop
Assembly Version: 0.98.6606.22071
Win32 Version: 1.1.28.0
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/SMathStudio_Desktop.exe

---

SMath.Manager
Assembly Version: 0.98.6606.22069
Win32 Version: 0.98.6606.22069
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/SMath.Manager.DLL

---

System.Windows.Forms
Assembly Version: 4.0.0.0
Win32 Version: 4.7.2556.0 built by: NET471REL1
CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Windows.Forms/v4.0_4.0.0.0__b77a5c561934e089/System.Windows.Forms.dll

---

System
Assembly Version: 4.0.0.0
Win32 Version: 4.7.2556.0 built by: NET471REL1
CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System/v4.0_4.0.0.0__b77a5c561934e089/System.dll

---

System.Drawing
Assembly Version: 4.0.0.0
Win32 Version: 4.7.2556.0 built by: NET471REL1
CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Drawing/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Drawing.dll

---

System.Configuration
Assembly Version: 4.0.0.0
Win32 Version: 4.7.2556.0 built by: NET471REL1
CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Configuration/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Configuration.dll

---

System.Core
Assembly Version: 4.0.0.0
Win32 Version: 4.7.2633.0 built by: NET471REL1LAST_C
CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Core/v4.0_4.0.0.0__b77a5c561934e089/System.Core.dll

---

System.Xml
Assembly Version: 4.0.0.0
Win32 Version: 4.7.2612.0 built by: NET471REL1LAST_B
CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Xml/v4.0_4.0.0.0__b77a5c561934e089/System.Xml.dll

---

SMath.Controls
Assembly Version: 0.98.6606.22070
Win32 Version: 0.98.6606.22070
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/SMath.Controls.DLL

---

SMath.Math.Symbolic
Assembly Version: 1.32.6606.22070
Win32 Version: 1.32.6606.22070
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/SMath.Math.Symbolic.DLL

---

SMath.Math.Numeric
Assembly Version: 1.65.6606.22070
Win32 Version: 1.65.6606.22070
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/SMath.Math.Numeric.DLL

---

SpecialFunctions
Assembly Version: 1.11.6606.22071
Win32 Version: 1.11.6606.22071
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/plugins/SpecialFunctions.dll

---

CustomFunctions
Assembly Version: 1.1.6522.6678
Win32 Version: 1.1.6522.6678
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/18dadffd-79a3-4cf9-aee1-d66deb0ea720/1.1.6522.6678/CustomFunctions.dll

---

CustomGlyphs
Assembly Version: 1.1.6353.24538
Win32 Version: 1.1.6353.24538
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/24c691c1-37f2-49e3-9a84-ccb77304d14a/1.1.6353.24538/CustomGlyphs.dll

---

ElectricalEngineeringLibrary
Assembly Version: 0.2.6353.24636
Win32 Version: 0.2.6353.24636
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/3fd1f9ba-53ee-4665-966b-bd2805a84485/0.2.6353.24636/ElectricalEngineeringLibrary.dll

---

MaximaPlugin
Assembly Version: 1.98.6519.13993
Win32 Version: 1.98.6519.13993
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/44011c1e-5d0d-4533-8e68-e32b5badce41/1.98.6519.13993/MaximaPlugin.dll

---

SharpVectors.Rendering.Gdi
Assembly Version: 0.3.1.1595
Win32 Version: 0.3.1.1595
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/44011c1e-5d0d-4533-8e68-e32b5badce41/1.98.6519.13993/SharpVectors.Rendering.Gdi.DLL

---

SharpVectors.Core
Assembly Version: 0.3.1.1588
Win32 Version: 0.3.1.1588
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/44011c1e-5d0d-4533-8e68-e32b5badce41/1.98.6519.13993/SharpVectors.Core.DLL

---

SharpVectors.Model
Assembly Version: 0.3.1.1592
Win32 Version: 0.3.1.1592
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/44011c1e-5d0d-4533-8e68-e32b5badce41/1.98.6519.13993/SharpVectors.Model.DLL

---

SharpVectors.Css
Assembly Version: 0.3.1.1590
Win32 Version: 0.3.1.1590
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/44011c1e-5d0d-4533-8e68-e32b5badce41/1.98.6519.13993/SharpVectors.Css.DLL

---

SharpVectors.Dom
Assembly Version: 0.3.1.1589
Win32 Version: 0.3.1.1589
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/44011c1e-5d0d-4533-8e68-e32b5badce41/1.98.6519.13993/SharpVectors.Dom.DLL

---

HyperlinkRegion
Assembly Version: 1.0.6362.5973
Win32 Version: 1.0.6362.5973
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/4938d1a8-ad11-4de8-afbf-d76d069cfbf8/1.0.6362.5973/HyperlinkRegion.dll

---

TableRegion
Assembly Version: 0.2.6610.42543
Win32 Version: 0.2.6610.42543
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/51fec712-ec75-4551-a13e-478d375ae8d6/0.2.6610.42543/TableRegion.dll

---

DataExchange
Assembly Version: 1.1.6499.5086
Win32 Version: 1.1.6499.5086
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/5dce7298-9e5f-4120-9a2e-49b16daa02a3/1.1.6499.5086/DataExchange.dll

---

PdfFileType
Assembly Version: 1.0.6353.25356
Win32 Version: 1.0.6353.25356
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/ac3d62dc-d93d-4c91-88e2-06a01fd2b5cc/1.0.6353.25356/PdfFileType.dll

---

PdfSharp
Assembly Version: 1.32.2608.0
Win32 Version: 1.32.2608.0
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/ac3d62dc-d93d-4c91-88e2-06a01fd2b5cc/1.0.6353.25356/PdfSharp.DLL

---

PictureRegion
Assembly Version: 1.10.6606.22071
Win32 Version: 1.10.6606.22071
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/plugins/PictureRegion.dll

---

ZedGraphRegion
Assembly Version: 0.1.6520.39127
Win32 Version: 0.1.6520.39127
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/b0e7602f-c9d4-4e6c-b6f1-087e4c6e8915/0.1.6520.39127/ZedGraphRegion.dll

---

System.Design
Assembly Version: 4.0.0.0
Win32 Version: 4.7.2556.0 built by: NET471REL1
CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Design/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Design.dll

---

System.Data
Assembly Version: 4.0.0.0
Win32 Version: 4.7.2633.0 built by: NET471REL1LAST_C
CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_64/System.Data/v4.0_4.0.0.0__b77a5c561934e089/System.Data.dll

---

DevelopmentTools
Assembly Version: 1.0.6498.3892
Win32 Version: 1.0.6498.3892
CodeBase: file:///C:/Users/kszmurlo/AppData/Roaming/SMath/extensions/plugins/f406188b-ff0e-4b02-8b05-8d6fda91e357/1.0.6498.3892/DevelopmentTools.dll

---

System.Management
Assembly Version: 4.0.0.0
Win32 Version: 4.7.2556.0 built by: NET471REL1
CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Management/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Management.dll

---

HTMLFileType
Assembly Version: 1.13.6606.22071
Win32 Version: 1.13.6606.22071
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/plugins/HTMLFileType.dll

---

ImageFileType
Assembly Version: 1.9.6606.22072
Win32 Version: 1.9.6606.22072
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/plugins/ImageFileType.dll

---

PlotRegion
Assembly Version: 1.9.6606.22072
Win32 Version: 1.9.6606.22072
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/plugins/PlotRegion.dll

---

SMathFileType
Assembly Version: 1.9.6606.22072
Win32 Version: 1.9.6606.22072
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/plugins/SMathFileType.dll

---

StandardToolboxButtons
Assembly Version: 1.0.6606.22072
Win32 Version: 1.0.6606.22072
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/plugins/StandardToolboxButtons.dll

---

SMath.UI
Assembly Version: 0.98.6606.22070
Win32 Version: 0.98.6606.22070
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/SMath.UI.DLL

---

TextRegion
Assembly Version: 1.10.6606.22071
Win32 Version: 1.10.6606.22071
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/plugins/TextRegion.dll

---

ViewerFileType
Assembly Version: 1.1.6606.22072
Win32 Version: 1.1.6606.22072
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/plugins/ViewerFileType.dll

---

XMCDFileType
Assembly Version: 1.12.6606.22072
Win32 Version: 1.12.6606.22072
CodeBase: file:///C:/Program%20Files%20(x86)/SMath%20Studio/plugins/XMCDFileType.dll

---

Microsoft.GeneratedCode
Assembly Version: 1.0.0.0
Win32 Version: 4.7.2612.0 built by: NET471REL1LAST_B
CodeBase: file:///C:/WINDOWS/Microsoft.Net/assembly/GAC_MSIL/System.Xml/v4.0_4.0.0.0__b77a5c561934e089/System.Xml.dll

---

************** JIT Debugging **************
To enable just-in-time (JIT) debugging, the .config file for this
application or computer (machine.config) must have the
jitDebugging value set in the system.windows.forms section.
The application must also be compiled with debugging
enabled.

For example:





When JIT debugging is enabled, any unhandled exception
will be sent to the JIT debugger registered on the computer
rather than be handled by this dialog box.

Wrote

Inserting zedgraph cause:
Unhandled exception has occured...

ZedGraph Region must be fixed:

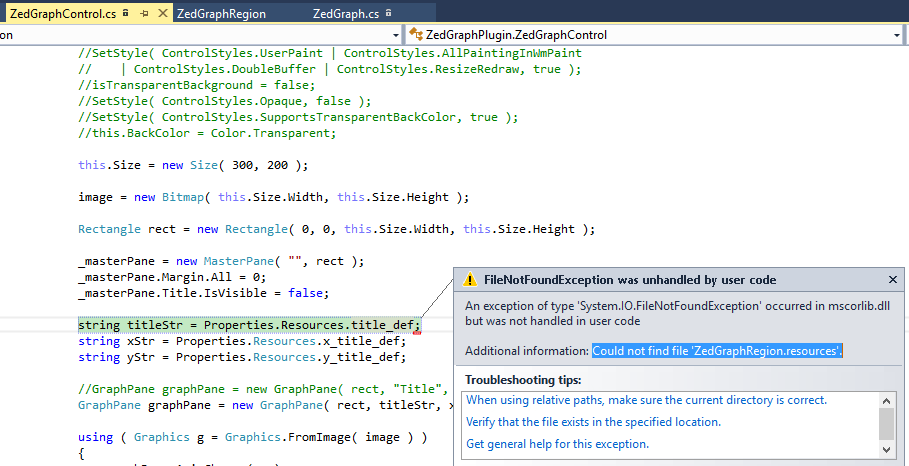

I've realized it is because of SMath Studio uses .Net 4.0 when available on the machine. For some reason .Net 4.0 trying to search for .resources file, which does not exist in the plug-in at all.
It is easy to fix this by removing resources files from the plug-in project (so, the text entries will be hardcoded), but I do not think it is a best choice.

See also: https://social.msdn.microsoft.com/Forums/vstudio/en-US/32e458a1-7443-4309-a054-8839b33dfd4f/framework-40-dll-loaded-by-a-20-executable-cannot-find-xxxxresourcesdll?forum=netfxbcl

Ok, the following line fixed issue:

Цитата

Resources.Culture = CultureInfo.InvariantCulture;

New version of the plug-in released and available via Extensions Manager. Please update it to use with latest SMath Studio builds.


Best regards.

Thanks that works now!

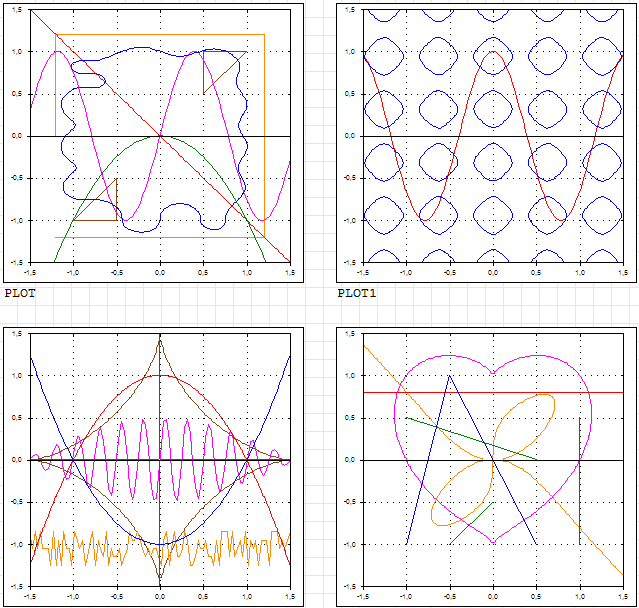

Updated, refactored.

zedgraph1.pdf (27 КиБ) скачан 129 раз(а).

Updated. The file size reduced (points removed).



ZedGraph Examples.sm (173 КиБ) скачан 170 раз(а).
ZedGraph Examples.pdf (105 КиБ) скачан 200 раз(а).

Updated. Fixed bug when zooming.

Hi!
The configurations of my ZedGraph region is not maintained when using the Viewer (free version).
Is there some specific configuration I should check?

Can you specify what exactly do you mean? The formatting dialog appears when you double-click on the chart.

I didn't know that. But is there a way to freeze the configurations set in the .sm when creatng the .exe?
I don't want users to mind about it.

This is bug. I'll try to find out what is the problem.

Thanks!

Hello, I have a question regarding ZedGraph.
I want to set the axis range (xmax and ymax) from the calculation sheet.
If I use the XY-Plot this is possible using the setprop() function or
by setting the value of the variable "XYPlot.XLimMax" to the desired value.
How can this be done using ZedGraph? I assume that it is although possible with
the setprop() function but I don't know the name and the syntax of the
corresponding variable. Can anyone give me a hint?
Thanks in advance
Andreas Hildebrandt

Theoretically, this is possible, but now there is one small problem that I have not yet solved. The problem is setting indexed properties. For the same reason, the properties of curves for X-Y Plot are not yet available for changing. I will let you know when this can be done.

Thank you very much for your quick reply. At the moment it seems to me that I don't need access to an indexed property.
For XY-Plot

setprop("Test_Plot.XAxis.Max", )=

works perfect. To identify the plot there is a property "NAME".
(In the example above the name is "Test_Plot" ).

Now I tried to do the same for ZedGraph.

setprop("myPane.XAxis.Scale.Max", )=

But ZedGraph has no property called "NAME".
Now the question: Is there any string
for "myPane" to identify the ZedGraph-Plot
to set the value of XAxis.Scale.Max?

Thanks in advance for your help!
Andreas Hildebrandt

Updated. Experimental build. Be careful with this. You need to update X-Y Plot first.

Файл не найден. Файл не найден.

P.S. "Name" property is not saved. This will be more difficult to fix, as component uses a binary format for storing settings.
