ZedGraph Region - Extends SMath Studio with a ZedGraph Region. - Сообщения
#81 Опубликовано: 11.10.2023 13:06:41

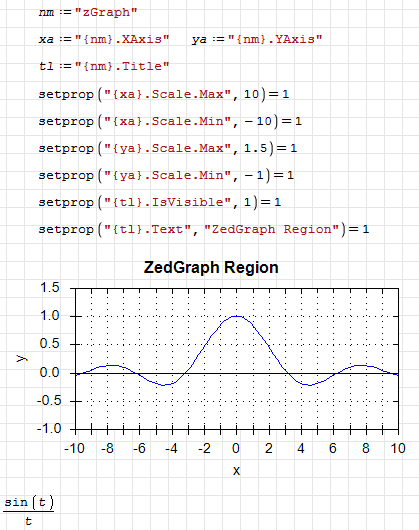

Updated. Experimental build. Be careful with this. You need to update X-Y Plot first.
Thanks for this handy information.
How can it be set properties when I have two or more plots in the same graph? Specifically, I need to set the properties via setprop() function, such as the first plot being plotted as a line (as default) and the second one being plotted with red circles.
Thanks in advance.
#82 Опубликовано: 11.10.2023 14:00:53
How can it be set properties when I have two or more plots in the same graph?
Viacheslav mentioned this 2 years ago.
ZedGraph, XYPlot, Mapple Plot uses setprop().
Apparently, it is not possible at the moment.
Regards
https://en.smath.com/forum/yaf_postsm75628_X-Y-Plot-Region.aspx#post75628
1 пользователям понравился этот пост
Oscar Campo 11.10.2023 14:18:00
#83 Опубликовано: 06.09.2025 03:12:59
Hello~

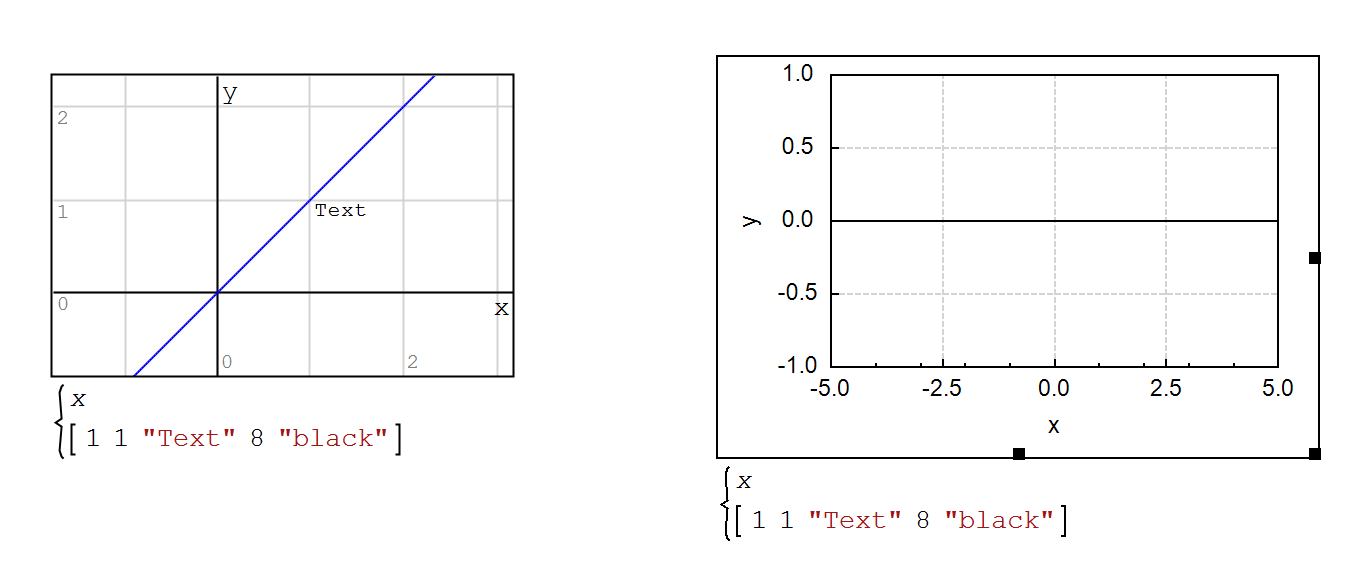

Excuse me, Could anyone teach me how to add text in the graph pane? [1 1 "Text" 8 "black"] did not work in zedgraph. Thank you very much.
Excuse me, Could anyone teach me how to add text in the graph pane? [1 1 "Text" 8 "black"] did not work in zedgraph. Thank you very much.
#84 Опубликовано: 06.09.2025 10:25:43
It doesn't work because it's not implemented due to limited human resources. The component itself allows adding text, but there's no one to add the implementation of this feature.
Russia ☭ forever, Viacheslav N. Mezentsev

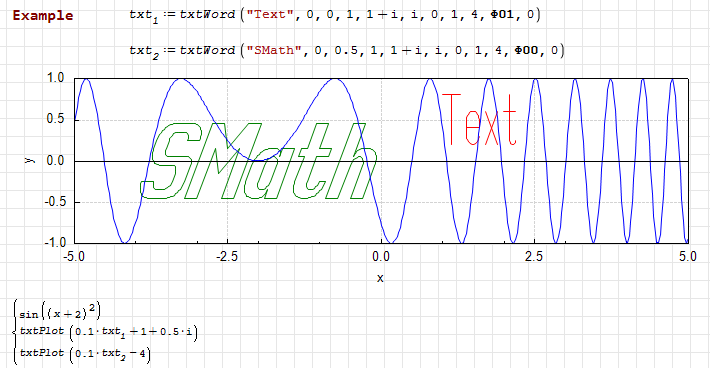

#85 Опубликовано: 06.09.2025 17:46:07
7 пользователям понравился этот пост
Вячеслав Мезенцев 06.09.2025 23:24:41, liwenbus 07.09.2025 08:28:55, Oscar Campo 07.09.2025 10:09:48, francesco rapuano 07.09.2025 10:26:46, NDTM Amarasekera 07.09.2025 14:06:41, sergio 07.09.2025 16:22:26, ioan92 08.09.2025 10:45:43
