Wrote

One feature that would increase the usefullness of SMath for me is to be able to select a PDF file as a Background image.

Wrote

I think this is not a useful feature in the eyes of the developer.

Wrote

As an Electrical Engineer in Canada, I am using SMath since many years for all kind of personnal work. One feature that would increase the usefullness of SMath for me is to be able to select a PDF file as a Background image. Of course it would be great to have a SMath page created per each PDF pages.

The goal is to "SMath"[verb] selected formulas and graphs on top of the PDF document to experiment with results and to master its contents.

If I push it a bit, there are great apps that can read a formula from an image. So, it would be possible to select an area of the PDF document to instantly capture an image formula into a "SMath" formula.

Keep up the great work!!!

public void SetBackground(
	Bitmap bmp,
	int pageNum,
	BackgroundImageSize size
)

Wrote

Wrote

One feature that would increase the usefullness of SMath for me is to be able to select a PDF file as a Background image.

I think this is not a useful feature in the eyes of the developer. I filed this in the Issue Tracker system as SS-1237 but it got closed without being implemented.

Wrote

I'm pretty sure this could be done quite easily with a plugin

Wrote

seems to me a different thing... here is asked to used a pdf as background, page-by-page; the BTS request was to use an image inside the header/footer, with placeholders or something similar.

Wrote

When I add a background image, SMath ask if you want it applied to current page or all pages. One way to add a logo or any header/footer could be to design it as a Bitmap (full page) and add it as a background image applied to all pages.

Wrote

edit not easy as expected... anyway I've found a possible way (here for further reference)

GhostscriptSharp wrapper for Ghostscript

Wrote

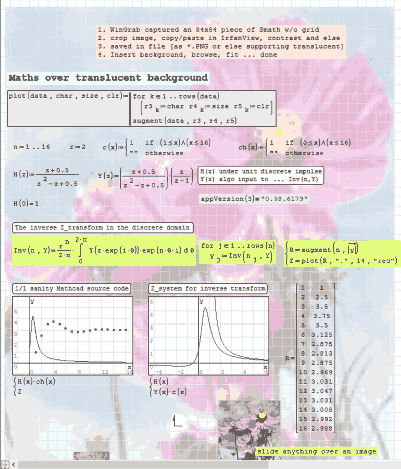

I would like to suggest making the "background image" to function like IRFANVIEW "overlay/watermark".I need to make some backgrounds translucent and I cannot find how to do this natively in SMATH.

Wrote

I think you have to use an image manipulation program
like Gimp or Krita (both free).
In the example published by Jean, I copied the image to Gimp, lower the opacity to 38% and save the image in PNG format.
I have inserted the saved image as a background.

Wrote

I would like to suggest making the "background image" to function like IRFANVIEW "overlay/watermark".I need to make some backgrounds translucent and I cannot find how to do this natively in SMATH.Hoping the IRFAN code is available since it's free too

Wrote

Hello:

I think you have to use an image manipulation program
like Gimp or Krita (both free).
In the example published by Jean, I copied the image to Gimp, lower the opacity to 38% and save the image in PNG format.

I have inserted the saved image as a background.



Inst_Z Transform_Jean.sm (2 МиБ) скачан 35 раз(а).

Best Regards

Carlos

Wrote

Yes!I was looking at "muting" the background image as it was overwhelming the "calculation".IrfanView and OpenOffice call it "translucent" and you called it "opacity"

Jean,
I know you are not a believer of this, but it's for a presentation and having their "logo" is required.Now to PDF and add this calculation to my slides.

Wrote

...what else about this thread ?
