I am a new SMath user - I am using the software as a replacement for Mathcad while I am doing some self study on electronic devices and circuit theory.
I am a bit stuck right off the get go - I have been able to do basics but now need to solve for two equations and two unknowns. I realize in Mathcad this is
essentially a "Give...Find" scenario. I suspect in SMath Studio I need to use (solve), but that is not working me.

Here is what I have so far:




Any assistance appreciated.

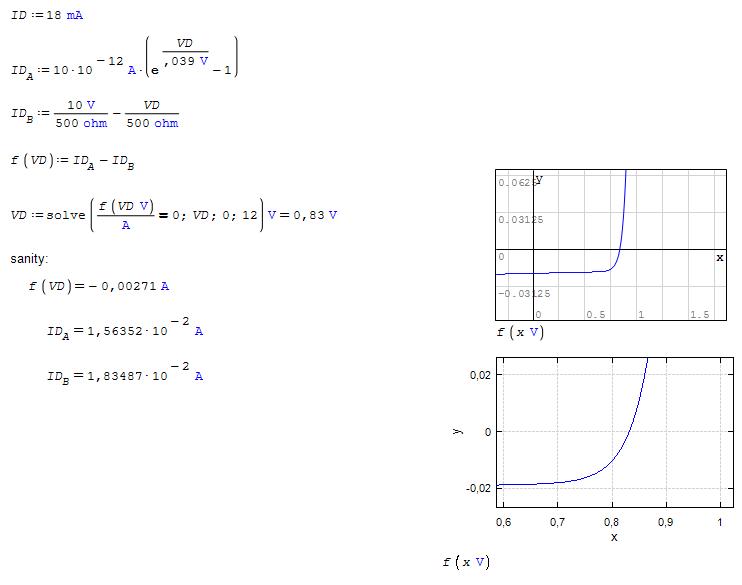

You can do something like this:

solve.sm (9 КиБ) скачан 131 раз(а).

Thanks Davide
More reading for Collab Vancouver

Solve Davide.sm (10 КиБ) скачан 142 раз(а).
Solve Given_Find [Ellipse_Line Intersect LM].sm (17 КиБ) скачан 131 раз(а).
Solve Given_Find [KHL 6179].sm (58 КиБ) скачан 125 раз(а).
Solve Given_Find [Cylinder,Circle,Balance].sm (66 КиБ) скачан 135 раз(а).
Solve Given_Find [CO2_6179 Butler].sm (163 КиБ) скачан 125 раз(а).

Wrote

I am a new SMath user - I am using the software as a replacement for Mathcad

... reading you further and your objective study, you will
need solid solve companion. In Mathcad, you can iterate
given/Find and root. Similar/same can be done in Smath.
This Treasury is a kind of initiating tool box.
Just a matter to get used to Smath coding, very visual.
Enjoy and don't hesitate.
Cheers ... Jean

Solve TREASURY_1 [Iterate L, Lc].sm (235 КиБ) скачан 142 раз(а).
