Trying to plot a variety of functions and nothing shows up in the plots.
I have 23 yrs of MathCad experience, but cannot figure out what Smath is looking for to plot three very simple function (See attached file).
Additionally, I am not sure why an equation needs vectorized to output the answers in the normal distribution equation.
Equation 1 - Normal distribution does not solve as a function until it is vectorized. Why?
Equation 2 - f(x):x^3+2*x*sin(0.25) solves without vectorization but will not plot. Why?
Equation 3 - f(x):vectorize(1/{σ*sqrt(2*π)}*e^{-1/2*({x-μ}/σ)^2}) solves with vectorization but does not plot (2D or X-Y plot method). Why?
Smath - 2D Plots.sm
I have 23 yrs of MathCad experience, but cannot figure out what Smath is looking for to plot three very simple function (See attached file).
Additionally, I am not sure why an equation needs vectorized to output the answers in the normal distribution equation.
Equation 1 - Normal distribution does not solve as a function until it is vectorized. Why?
Equation 2 - f(x):x^3+2*x*sin(0.25) solves without vectorization but will not plot. Why?
Equation 3 - f(x):vectorize(1/{σ*sqrt(2*π)}*e^{-1/2*({x-μ}/σ)^2}) solves with vectorization but does not plot (2D or X-Y plot method). Why?
Smath - 2D Plots.sm
#2 Опубликовано: 25.10.2021 13:54:36
Equation 2 also needs vectorized to get the correct results.
You don't have to do this in MathCad, why here?
You don't have to do this in MathCad, why here?
#3 Опубликовано: 25.10.2021 14:35:07
You have defined a vector of values for x. If you use the X-YPLOT plugin you need to change the variable. If instead you use SM native 2D graph then it already works as you expect
sergio
sergio
#4 Опубликовано: 25.10.2021 14:42:14
First Solution Found
This allowed me to plot Normal Distribution Function.
augment(x,f(x))
This allowed me to plot Normal Distribution Function.
augment(x,f(x))
#5 Опубликовано: 25.10.2021 15:13:13
Solved for now. On with the learning experience.
Thanks....
Thanks....
#6 Опубликовано: 25.10.2021 15:13:44
Hi, if you need a quick plot I recommend you use 2D standard plot you can plot functions f(x) directly , if you need a more configurable plot use XY plot but you need to put your data in a special format.
#7 Опубликовано: 25.10.2021 15:29:09

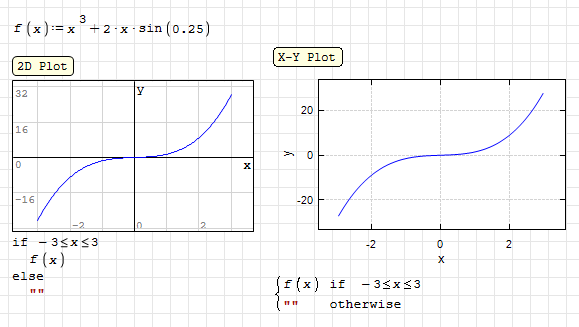

You don't need to use range() and augment() if you want to plot sections.
You can limit it with if-else() or cases().
Regards
You can limit it with if-else() or cases().
Regards
#8 Опубликовано: 25.10.2021 15:43:24
Trying to plot a variety of functions and nothing shows up in the plots.
I have 23 yrs of MathCad experience, but cannot figure out what Smath is looking for to plot three very simple function (See attached file).
Additionally, I am not sure why an equation needs vectorized to output the answers in the normal distribution equation.
1. Show the two other ones on same document for doctoring.
2. Your sigma makes no sense !
3. BTW, in Samples you should find my Stat Treasury [10 WS]
Hard to find such immense Compendium.
4. If you can't download, please let me know
Welcome ... Jean.
Smath - 2D Plots.sm
#9 Опубликовано: 25.10.2021 15:50:14
... besides the pure statistical application,
you can use to fit data sets [Fréchet US Rainfall ...]
you can use to fit data sets [Fréchet US Rainfall ...]
#10 Опубликовано: 25.10.2021 15:52:41
... besides the pure statistical application,
you can use to fit data sets [Fréchet US Rainfall ...]

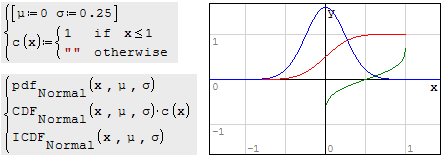

There is about 24 built-in PDF in Smath ... f(x) menu
as well as CDF, ICDF
#11 Опубликовано: 26.10.2021 07:05:13
Equation 1 - Normal distribution does not solve as a function until it is vectorized. Why?

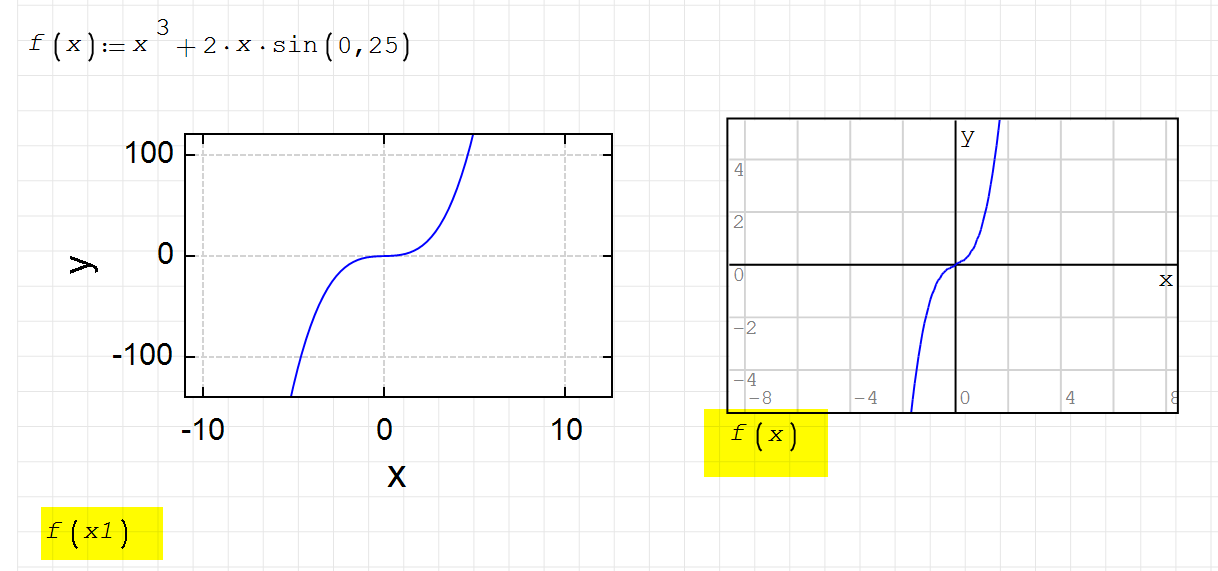

1. Discretize the range you want and plot ... No vectorize.
2. Plot scalar directly.
#12 Опубликовано: 26.10.2021 07:29:00
#13 Опубликовано: 26.10.2021 08:20:56
#14 Опубликовано: 26.10.2021 09:50:27
Scalar plots have limited use, mostly confirm the project.
Discrete plot can be used for subsequent application/export.

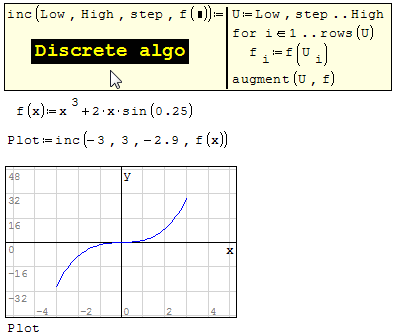

1. Collapsed the algo at top utilities.
2. Use it infinitely in-situ use [range each f(x) at will].
Discrete plot can be used for subsequent application/export.
1. Collapsed the algo at top utilities.
2. Use it infinitely in-situ use [range each f(x) at will].
