#1 Опубликовано: 28.02.2016 23:26:20
Hi everyone,
I am a relative novice at SMath Studio, so please forgive any display of ignorance.
I want to use Boolean expressions with vectors, but I cannot find a way of doing this. It is relatively simple with Mathcad, but I want to use SMath Studio, as I am a student, and I am trying to show other students how to simplify logic circuits using Boolean algebra.
For example, the circuit described by ( A&B )|((B&C)&(B|C)) can be simplified to B&(B|C). I want to be able to call the three vectors (A, B, C) and have the output of the two expressions shown as a vector of zeros and ones (in this example the output vectors are the same as the simplified second-expression is the equivalent of the more-complex first-expression.
Is there a way of achieving this in SMath Studio.
Thanks in advance.
Eddie
I am a relative novice at SMath Studio, so please forgive any display of ignorance.
I want to use Boolean expressions with vectors, but I cannot find a way of doing this. It is relatively simple with Mathcad, but I want to use SMath Studio, as I am a student, and I am trying to show other students how to simplify logic circuits using Boolean algebra.
For example, the circuit described by ( A&B )|((B&C)&(B|C)) can be simplified to B&(B|C). I want to be able to call the three vectors (A, B, C) and have the output of the two expressions shown as a vector of zeros and ones (in this example the output vectors are the same as the simplified second-expression is the equivalent of the more-complex first-expression.
Is there a way of achieving this in SMath Studio.
Thanks in advance.
Eddie
#2 Опубликовано: 29.02.2016 13:00:11
Hello EddieAust,
To accomplish your task you have to use the programming loops (for, while) available in the right panel, and then you have to apply your logic to any element of the matrix/vector.
You can take a look here for an alternative way: Language-Integrated Query (Linq)
To accomplish your task you have to use the programming loops (for, while) available in the right panel, and then you have to apply your logic to any element of the matrix/vector.
You can take a look here for an alternative way: Language-Integrated Query (Linq)
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#3 Опубликовано: 29.02.2016 13:51:39
Hello Eddie,
As far as I have experimented/compared Mathcad 11/Smath,
they work both the same way, though Smath does not accept
the "maybe YES/maybe NO" logic unlike Mathcad apparently
more flexible but not correct in real instances.
Neither one of these applications will imitate Programmable
Logic Controllers. Hardly imitate a push button Start/Stop.
The attached is a good example of logic within a "While loop"
You have so many random pts in the circle, depending upon "h"
all the randoms are in there, but in larger/smaller area,
i.e: a random compressor. Great to demonstrate the gas
molecules compressed or relaxed.
Jean
Inst_Segment Partial Random.sm
As far as I have experimented/compared Mathcad 11/Smath,
they work both the same way, though Smath does not accept
the "maybe YES/maybe NO" logic unlike Mathcad apparently
more flexible but not correct in real instances.
Neither one of these applications will imitate Programmable
Logic Controllers. Hardly imitate a push button Start/Stop.
The attached is a good example of logic within a "While loop"
You have so many random pts in the circle, depending upon "h"
all the randoms are in there, but in larger/smaller area,
i.e: a random compressor. Great to demonstrate the gas
molecules compressed or relaxed.
Jean
Inst_Segment Partial Random.sm
#4 Опубликовано: 01.03.2016 09:10:23
Hi Davide and Jean,
Thanks for your prompt replies, I appreciate your efforts.

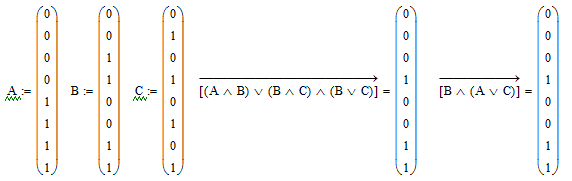

Unfortunately, as I am showing other students how to use logic, I wanted something simple for them to use. In Mathcad 15 it is easy to show an original expression, and alongside it a simplified expression resulting from using Boolean Algebra, and I was hoping that SMath Studio would do the same, as I do not expect my fellow students to pay for a copy of Mathcad. Unfortunately, SMath Studio does not have to option of a simple use for logic on vectors as does Mathcad 15 (see attached .jpg image from Mathcad 15 - I hope this works, as this is the first time I have tried to attach an image).
Once again, thanks for your assistance.
Regards
Eddie
Thanks for your prompt replies, I appreciate your efforts.
Unfortunately, as I am showing other students how to use logic, I wanted something simple for them to use. In Mathcad 15 it is easy to show an original expression, and alongside it a simplified expression resulting from using Boolean Algebra, and I was hoping that SMath Studio would do the same, as I do not expect my fellow students to pay for a copy of Mathcad. Unfortunately, SMath Studio does not have to option of a simple use for logic on vectors as does Mathcad 15 (see attached .jpg image from Mathcad 15 - I hope this works, as this is the first time I have tried to attach an image).
Once again, thanks for your assistance.
Regards
Eddie
#5 Опубликовано: 01.03.2016 10:13:30
3 пользователям понравился этот пост
Alexander O. Melnik 01.03.2016 14:29:00, Davide Carpi 01.03.2016 13:59:00, sergio 01.03.2016 13:47:00
#6 Опубликовано: 01.03.2016 13:46:05
if you want to automate the operation, then define two functions as those suggested by Jean. The aesthetic result is not comparable, but the functionality yes
sergio
[albumimg]1428[/albumimg]
sergio
[albumimg]1428[/albumimg]
2 пользователям понравился этот пост
#8 Опубликовано: 04.03.2016 14:35:35
FYI, I'm currently working on this feature.
Regards.
Regards.
8 пользователям понравился этот пост
Ernesto 04.03.2016 16:51:00, Radovan Omorjan 05.03.2016 03:54:00, Jaan Praks 28.03.2016 17:20:00, ioan92 04.03.2016 14:38:00, Вячеслав Мезенцев 04.03.2016 14:46:00, Alexander O. Melnik 04.03.2016 14:56:00, Davide Carpi 04.03.2016 15:11:00, sergio 04.03.2016 16:30:00
#9 Опубликовано: 05.03.2016 00:49:42
FYI, I'm currently working on this feature.
Yes, please, thank you Andrey.
Maybe next: fft and picture operator.
In the mean time, "Vectorise EXPRESS"
for user to adapt wrt applicable project
Jean
Utilities Matrix Vectorise EXPRESS.sm
#10 Опубликовано: 05.03.2016 18:59:22

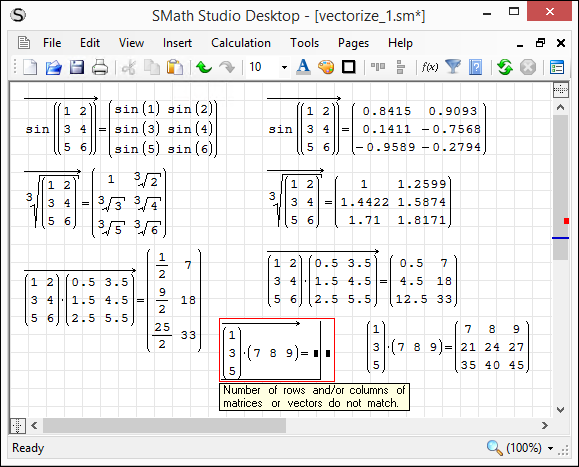

Regarding initial question: see vectorize(..) function into new nightly build release: http://en.smath.info/forum/yaf_postst7329_SMath-Studio-0-98-5908--05-March-2016.aspx
Regards.
Regards.
1 пользователям понравился этот пост
Davide Carpi 05.03.2016 21:05:00
-
