Wrote

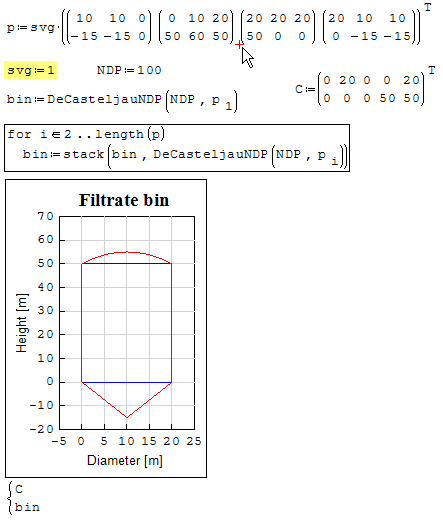

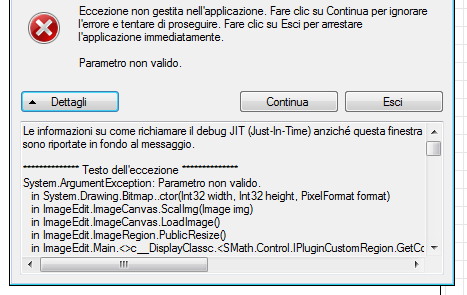

BTW I can't resize the image from the context menu of the Image region, an hard crash occours

Wrote

BTW I can't resize the image from the context menu of the Image region, an hard crash occours

Wrote

Hello Uni !

If I understand something in there [quite Chinese to me],
eventually you will be able to plot the breather, is it ?

Will that be compatible Smath 5346 ?

Wrote

Thanks! More than nice!

Wrote

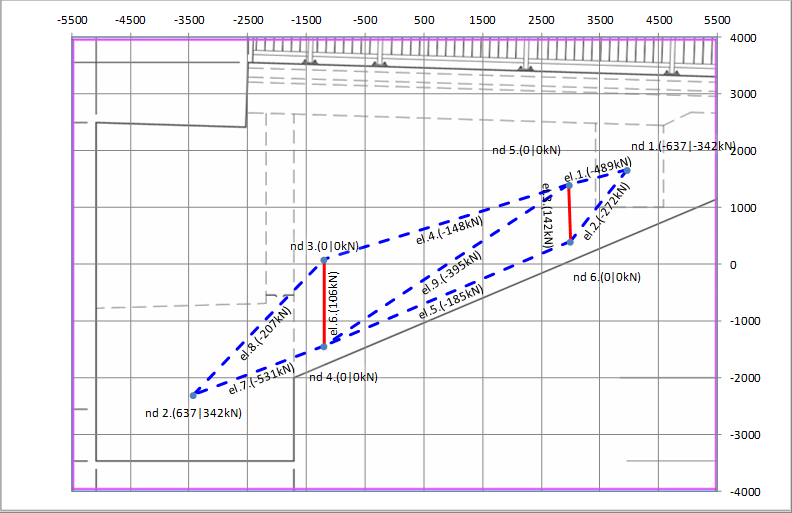

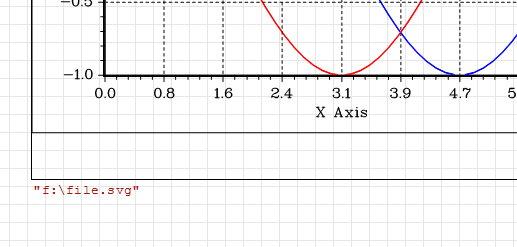

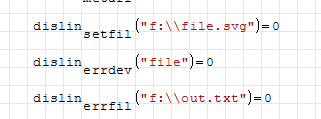

Hi All,

I would love to make the Image Region handle DISLIN properly, however I was not able to come up with a fix myself.

From what I understood, the SVG engine (https://svg.codeplex.com/) has trouble reading Height/Width of the .svg produced by DISLIN. If any of you guys need the functionality enough to investigate and come up with a solution I would love to implement it in the code of the Image Region.

<svg width="100%" height="100%" viewBox="0 0 800 800" xmlns="http://www.w3.org/2000/svg">

Wrote

Wrote

Hi All,

I would love to make the Image Region handle DISLIN properly, however I was not able to come up with a fix myself.

From what I understood, the SVG engine (https://svg.codeplex.com/) has trouble reading Height/Width of the .svg produced by DISLIN. If any of you guys need the functionality enough to investigate and come up with a solution I would love to implement it in the code of the Image Region.

The svg file doesn't contain viewBox attribute. The ImageRegion plugin could check its availability and if it is not, then add your own:

<svg width="100%" height="100%" viewBox="0 0 800 800" xmlns="http://www.w3.org/2000/svg">[/code][/quote]

After many-many attempts (I have literally spent good 6 hours to fix display of DISLIN svg) I have found the "correct" way of fixing the missing viewport parameter.

Plugin was updated.

[code=csharp]

if (SVGdoc.OwnerDocument.ViewBox.Width == 0 || SVGdoc.OwnerDocument.ViewBox.Height == 0)
                    {
                        SVGdoc.Height = 1;
                        SVGdoc.Width = 1;
                        SVGdoc.Height = SVGdoc.Height.ToPercentage();
                        SVGdoc.Width = SVGdoc.Width.ToPercentage();

                        SVGdoc.OwnerDocument.ViewBox = new SvgViewBox(SVGdoc.OwnerDocument.Bounds.Left, SVGdoc.OwnerDocument.Bounds.Top, Convert.ToInt32(SVGdoc.OwnerDocument.GetDimensions().Width), Convert.ToInt32(SVGdoc.OwnerDocument.GetDimensions().Height));
                        SVGdoc.Height = Convert.ToInt32(SVGdoc.OwnerDocument.GetDimensions().Height);
                        SVGdoc.Width = Convert.ToInt32(SVGdoc.OwnerDocument.GetDimensions().Width);
                    }

Seems like an extremely simple piece of code now... Doesn't it always.

Wrote

After many-many attempts (I have literally spent good 6 hours to fix display of DISLIN svg) I have found the "correct" way of fixing the missing viewport parameter.

Plugin was updated.
