Show the Orignal Units in Table Region - Show the original units in the Table instead of the basic units of the International System - Сообщения
#1 Опубликовано: 21.03.2018 16:01:53
#2 Опубликовано: 21.03.2018 16:51:14
sets the header and units matrices
sergio
sergio
1 пользователям понравился этот пост
Davide Carpi 22.03.2018 08:17:00
#3 Опубликовано: 21.03.2018 20:22:36
Thanks Sergio:
You made me remember the solution that Martin Kraska gave me, but I can not put a header on it.
Do you have any suggestion?

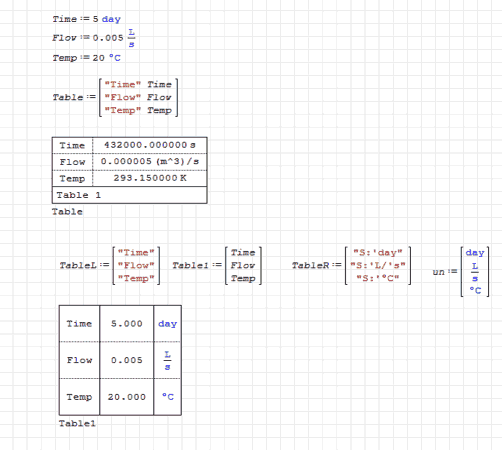

Units_Table_r2.sm
Best Regards
Carlos
You made me remember the solution that Martin Kraska gave me, but I can not put a header on it.
Do you have any suggestion?
Units_Table_r2.sm
Best Regards
Carlos
#4 Опубликовано: 22.03.2018 06:35:19
I thought about this (string manipulation)
but num2strtransforms into fractions
sergio
but num2strtransforms into fractions
sergio
1 пользователям понравился этот пост
Davide Carpi 22.03.2018 08:17:00
#5 Опубликовано: 22.03.2018 13:36:09
Will it be possible?
I prefer the way we did in 1987, collecting piles of fluids information.
Units_Table Preference.sm
#6 Опубликовано: 22.03.2018 13:44:41
I thought about this (string manipulation)
but num2strtransforms into fractions
sergio
Use var2str() from CustomFunctions instead
Martin Kraska
Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx
#7 Опубликовано: 22.03.2018 20:21:28
Thank you very much to everyone for your help,
I already managed to make the table as I required it.

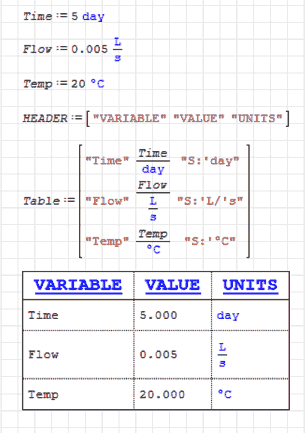

Units_Table_r3.sm
Best Regards
Carlos
I already managed to make the table as I required it.
Units_Table_r3.sm
Best Regards
Carlos
2 пользователям понравился этот пост
#8 Опубликовано: 22.03.2018 23:20:16
Thanks Carlos: gorgeous
#9 Опубликовано: 26.06.2018 18:32:55
CBG,
Using the unit summary to convert units back to original units doesn't work for temperature conversions. What you are doing with the units summary assumes the conversion is a factored multiplier. It works great for everything except temperature (or any other unit doesn't scale by a factored multiplier).
Using the unit summary to convert units back to original units doesn't work for temperature conversions. What you are doing with the units summary assumes the conversion is a factored multiplier. It works great for everything except temperature (or any other unit doesn't scale by a factored multiplier).
#10 Опубликовано: 26.06.2018 21:28:04
Using the unit summary to convert units back to original units doesn't work for temperature conversions.
Just define those units.
#11 Опубликовано: 26.06.2018 21:49:54
Jean Giraud,
Maybe try something other than 20 deg?...
Version: 0.99(build: 6671)
Maybe try something other than 20 deg?...
Version: 0.99(build: 6671)
#12 Опубликовано: 26.06.2018 23:59:58
Maybe try something other than 20 deg?...
You are quite right and there are two things here
1. As it looks, the °C can't be made user.
The unit system is grounded on 'K', bloody pest to me.
2. The other thing is the Shadow in context, a real bug.
It worked fine from Carlos original [by what coincidence ?]
Not changing the context, context reproduces. Changing context
and the all thing °C gets freaked. I observed that many times
in Smath. In fact, very problematic.
Thanks for this wise observation.
Table Region Carlos.sm
.PNG)
-
