Hey guys.

Maybe someone has a solution for next problem:
I want to allow a user to receive bridge length by entering each span lengths separately.
For example first of all I have variable N (span numbers) that tells me how many times I need to enter span length.
I that possible?

#2 Опубликовано: 01.02.2019 06:28:41

Davide Carpi

1 434 сообщений из 2 911 понравились пользователям.

Группа: Moderator

Simplest way:

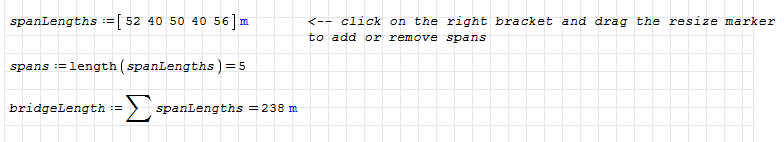

2019-02-01 10_22_39-SMath Studio - [Page1_].png

With a more graphical approach, you can try with the modeller region.

If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects

#3 Опубликовано: 01.02.2019 06:31:14

Eugene

0 сообщений из 7 понравились пользователям.

Группа: User

Wow, thats works just well. Thanks

#4 Опубликовано: 01.02.2019 08:33:02

Jean Giraud

983 сообщений из 6 866 понравились пользователям.

Группа: User

Wrote
I want to allow a user to receive bridge length by entering each span lengths separately.

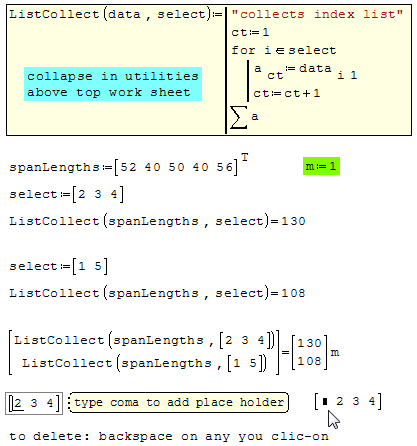

click in front to add upstream
click in back to add downstream
click in front demonstrated only.
So, you don't add separately, you select in group
or individually at will
