Method A.B. Draghilev and animation spatial mechanisms - Ber7 - Сообщения
#1 Опубликовано: 26.01.2014 03:10:20
Application of the method A.B. Draghilev to the calculation of the kinematics and animation
spatial mechanisms developed prof.A.B.Ivanov, that
develops method A.B. Draghilev to solve practical problems.
Their development, with detailed explanations,
he published on the site
http://forum.exponenta.ru/viewtopic.php?t=12842
The following examples are taken from this site and transferred from Maple in the programming environment SMath Studio.
A huge thanks to Alexei Ivanov, who gave me great help in the study the method of A.B .Draghilev.
1.Explanatory example
http://ru.smath.info/forum/yaf_postst2304_Primienieniie-mietoda-A-B--Draghilieva-k-raschietu-polozhienii-i-animatsii-miekhanizmov.aspx
spatial mechanisms developed prof.A.B.Ivanov, that
develops method A.B. Draghilev to solve practical problems.
Their development, with detailed explanations,
he published on the site
http://forum.exponenta.ru/viewtopic.php?t=12842
The following examples are taken from this site and transferred from Maple in the programming environment SMath Studio.
A huge thanks to Alexei Ivanov, who gave me great help in the study the method of A.B .Draghilev.
1.Explanatory example
http://ru.smath.info/forum/yaf_postst2304_Primienieniie-mietoda-A-B--Draghilieva-k-raschietu-polozhienii-i-animatsii-miekhanizmov.aspx
2 пользователям понравился этот пост
#2 Опубликовано: 26.01.2014 03:18:11
3 пользователям понравился этот пост
Andrey Ivashov 07.05.2016 09:54:00, Radovan Omorjan 26.01.2014 03:39:00, Davide Carpi 31.01.2014 06:17:00
#3 Опубликовано: 26.01.2014 03:21:47
3 пользователям понравился этот пост
Davide Carpi 31.01.2014 06:39:00, Andrey Ivashov 07.05.2016 09:54:00, Radovan Omorjan 26.01.2014 03:39:00
#4 Опубликовано: 26.01.2014 03:25:04
Spatial four-bar linkage1
Spatial four-bar linkage 2
Spatial four-bar linkage 2
3 пользователям понравился этот пост
Radovan Omorjan 26.01.2014 03:39:00, Davide Carpi 31.01.2014 06:39:00, Andrey Ivashov 07.05.2016 09:54:00
#5 Опубликовано: 26.01.2014 03:30:32
3 пользователям понравился этот пост
Andrey Ivashov 07.05.2016 09:54:00, Davide Carpi 31.01.2014 06:39:00, Radovan Omorjan 26.01.2014 03:38:00
#6 Опубликовано: 11.04.2014 02:45:17
Animation curve, which is defined implicitly
Each loop equation "cam"-an implicit function F (x, y) = 0
Examples taken from the site
http://forum.exponenta.ru/viewtopic.php?t=12842
Kardeoida.smz
Each loop equation "cam"-an implicit function F (x, y) = 0
Examples taken from the site
http://forum.exponenta.ru/viewtopic.php?t=12842
Kardeoida.smz
2 пользователям понравился этот пост
#7 Опубликовано: 02.05.2014 17:06:20
The line of intersection of the torus and sphere(Villarceau circles)
This example is taken from an article by Дубанов А.А. :Численно-аналитическое
построение линий пересечения поверхностей методом Драгилева,2007(rus)
http://www.blagovest2002.narod.ru/2005/SurfInt/paper1/Paper1.htm
Villarceau.smz
This example is taken from an article by Дубанов А.А. :Численно-аналитическое
построение линий пересечения поверхностей методом Драгилева,2007(rus)
http://www.blagovest2002.narod.ru/2005/SurfInt/paper1/Paper1.htm
Villarceau.smz
2 пользователям понравился этот пост
#8 Опубликовано: 12.05.2014 14:02:38
Cardan Mechanism.The axes of rotation intersect at an angle of 45 degrees
The same mechanism with spherical linkages
These linkages have the property that
every link in the system rotates about the same fixed point. Thus, trajectories of
points in each link lie on concentric spheres with this point as the center. Only the
revolute joint is compatible with this rotational movement and its axis must pass
through the fixed point.
3 пользователям понравился этот пост
Davide Carpi 16.05.2014 12:38:00, Andrey Ivashov 07.05.2016 09:54:00, Martin Kraska 12.05.2014 16:40:00
#9 Опубликовано: 16.05.2014 07:03:17
I can't see the last image (neither in the russian side of the forum)
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#13 Опубликовано: 30.08.2015 17:51:05
The Delta Parallel Robot
Kinematic scheme and dimensions are taken from the book
R.L. Williams II, “The Delta Parallel Robot: Kinematics Solutions”, Internet Publication,
April 2015.
Delta.pdf
Kinematic scheme and dimensions are taken from the book
R.L. Williams II, “The Delta Parallel Robot: Kinematics Solutions”, Internet Publication,
April 2015.
Delta.pdf
2 пользователям понравился этот пост
#14 Опубликовано: 14.09.2015 05:37:56
RSCRmod.sm The RSCR spatial mechanism.
The calculation is borrowed from the publication of Alexey Ivanov
http://www.mapleprimes.com/posts/201080-RSCR-Spatial-Mechanism
A case where the axis of rotation are perpendicular
RSCRmechanism.smz
The calculation is borrowed from the publication of Alexey Ivanov
http://www.mapleprimes.com/posts/201080-RSCR-Spatial-Mechanism
A case where the axis of rotation are perpendicular
RSCRmechanism.smz
2 пользователям понравился этот пост
#17 Опубликовано: 21.11.2015 08:37:36
Delta0C.smz In the above animation three links that support the lower platform is a simplified and
presented in the form of red rods. Actually used parallelograms (pantographs), where top and
bottom mounted universal (cardan) joints. Each universal joint implemented using Three
revolute joints . The axis of the middle joints lies in the plane of the parallelogram, and
axis external joints perpendicular to this plane. Animation of this design is shown below.
presented in the form of red rods. Actually used parallelograms (pantographs), where top and
bottom mounted universal (cardan) joints. Each universal joint implemented using Three
revolute joints . The axis of the middle joints lies in the plane of the parallelogram, and
axis external joints perpendicular to this plane. Animation of this design is shown below.
2 пользователям понравился этот пост
#18 Опубликовано: 07.05.2016 07:55:01
Graf.smz Spatial (spherical) Cam
The idea is taken from here
http://www.mapleprimes.com/questions/209853-Is-It-Possible-To-Get-This-In-MapleSim-#comment225311
The idea is taken from here
http://www.mapleprimes.com/questions/209853-Is-It-Possible-To-Get-This-In-MapleSim-#comment225311
2 пользователям понравился этот пост
#19 Опубликовано: 30.07.2016 07:23:41
A mechanisms similar to slider crank mechanism
These mechanisms are shown Alexey B. Ivanov on the website
https://vk.com/away.php?to=http%3A%2F%2Fwww.mapleprimes.com%2Fposts%2F204684-Lever-Mechanisms
These mechanisms are shown Alexey B. Ivanov on the website
https://vk.com/away.php?to=http%3A%2F%2Fwww.mapleprimes.com%2Fposts%2F204684-Lever-Mechanisms
1 пользователям понравился этот пост
Davide Carpi 01.08.2016 18:52:00
#20 Опубликовано: 02.08.2016 15:22:02
Thanks Ber7 for your repost/new animations. Some don't work in Smath 5346,
so what. Animation is a very nice feature from Smath.
Jean

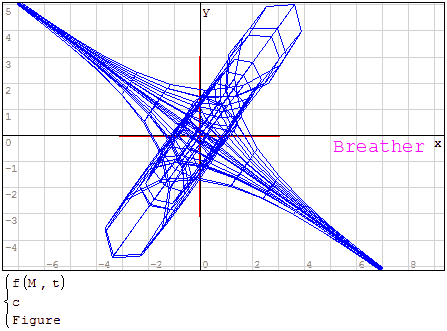

Rotate XY.sm
so what. Animation is a very nice feature from Smath.
Jean
Rotate XY.sm
-
